Ugreen PCIe Gen 4 x16 to M.2 NVMe Expansion Card (CM465/30715)

• High-Speed Transfer: The PCIe 4.0 (16X physical size, 4X bandwidth) design enables transfer speeds up to 64Gbps, with backward compatibility for PCIe 3.0/2.0/1.0.
• Broad Compatibility: Compatible with PCIe X16/X8/X4 slots and M-Key and M&B-Key NVMe/AHCI SSDs (2280, 2260, 2242, 2230). Not compatible with SATA/NGFF SSDs.
• Enhanced Stability & Safety: Includes short-circuit, over-current, over-voltage, EMI, and multi-protection features to safeguard SSDs and data.

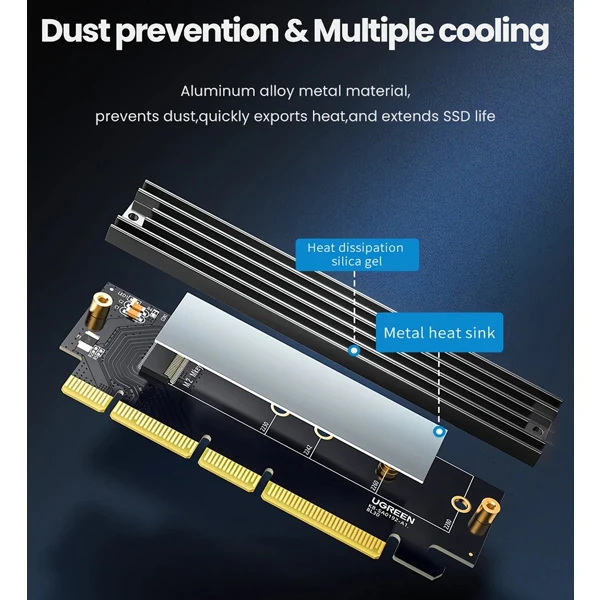

• Efficient Cooling & LED Indicator: Features a heat sink with two silicone pads for improved heat dissipation, and an LED light that flashes to indicate data transfer activity.



Specifications:

Product	UGREEN M.2 PCIe Adapter
Hardware Interface	PCI
Style	Modern
Item Weight	0.08 Kilograms
Compatible Devices	Personal Computer
PCIe Version	PCIe 4.0 (16X physical size, 4X bandwidth)
Transfer Speed	Up to 64Gbps
Supported SSD Types	M-Key and M&B-Key NVMe/AHCI SSD, above 2TB
Supported SSD Sizes	2280, 2260, 2242, 2230 (NVMe/AHCI SSD above 2TB)
Compatible Motherboards	PCIe 4.0/3.0/2.0/1.0 motherboard, PCIe X16/X8/X4 slot

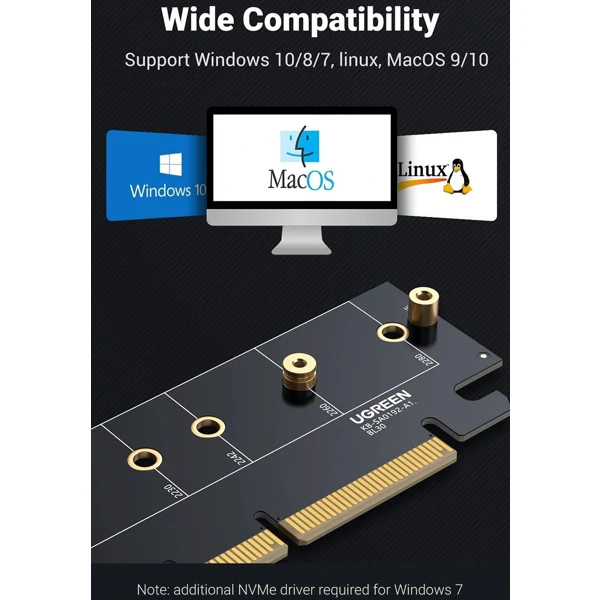

Operating Systems Supported	Windows 7/8/10, Linux, Mac OS 9/10
Indicators	LED for power and data transfer status
Package Contents	1 × M.2 NVMe to PCIe adapter
