The Story

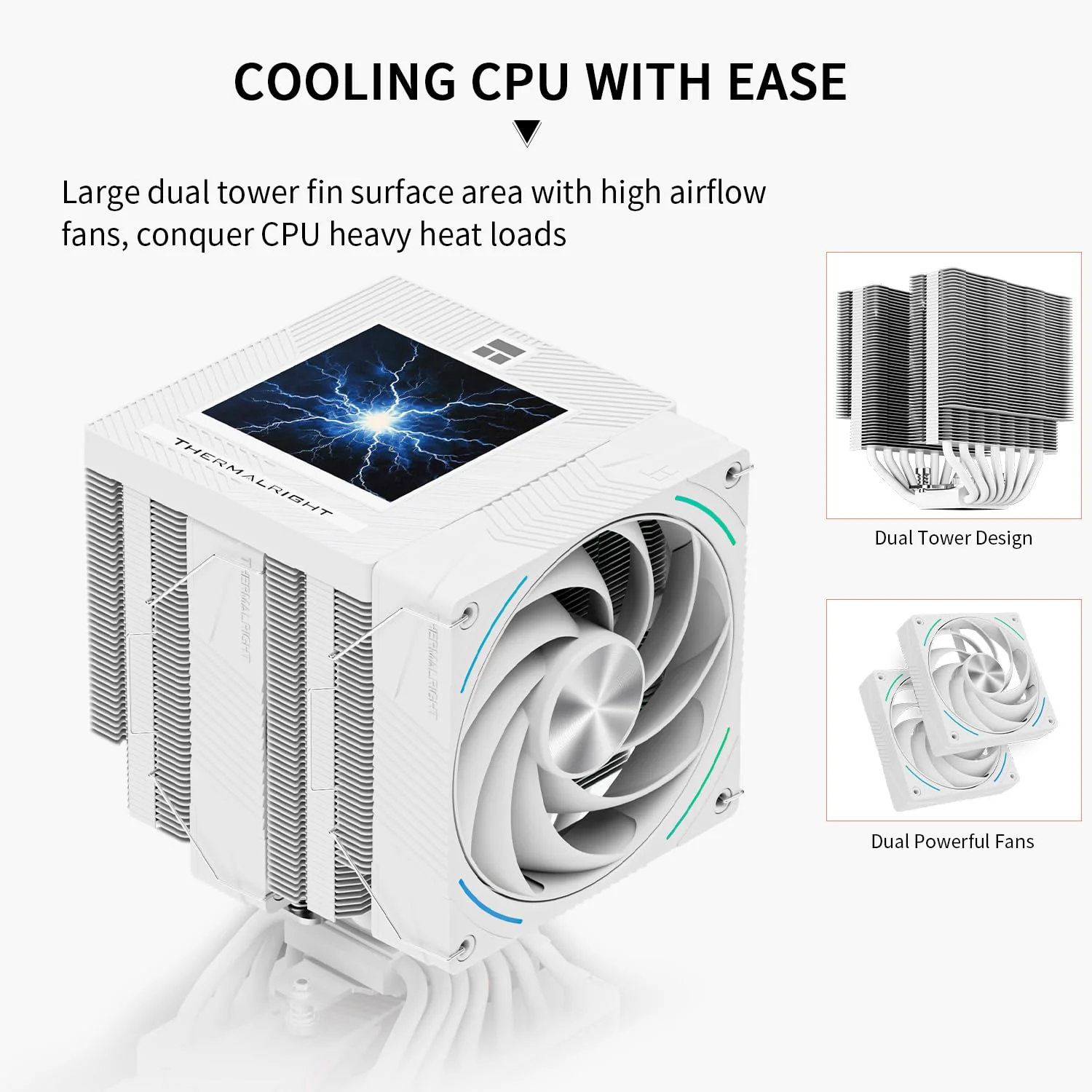

Excellent Heat Dissipation - The CPU cooler as a whole is composed of a twin-tower body and two 120mm fans, a 3.95-inch magnetic screen top cover, a 7X6mm pure copper heat pipe, and a 2150RPM fan speed that can easily dissipate the temperature of the CPU, making the heatsink have a good cooling effect.
CPU Cooler Specifications - Model: Phantom Spirit 120 Vision Snow, Overall Size: 125x138x160mm, Fan Size: 120x120x28mm, Fan Speed: 2150RPM+10%, Air Pressure: 3.0mm H2O, Air Volume: 92CFM, Operating Noise≤36DB(A), Fan Power Supply Interface: 4PIN PWM, Lighting Interface: 5V 3pin ARGB, S-FDB included V2 bearings have a long life feature, which ensures that the heat sink maintains good heat dissipation.
Dual PWM Fans - The PWM fan is surrounded by ARGB arc light strips, LCP anti-vibration balanced noise reduction rings, secondary dispensing dynamic balancing technology, and 28mm thick dual fans to provide stable heat dissipation performance for the radiator
3.95 inch LCD Display - Equipped with a square 3.95-inch 480x480 resolution IPS LCD screen, this panel screen can accurately restore colors, and the newly developed TRCC can DIY the background subject.
Wide Compatibility - The heatsink supports AMD/Intel dual platforms: AM4/AM5 and LGA1851/1700/1150/1151/1155/1156/1200, and comes with dual-platform mounting fasteners, which can be well installed on the corresponding platform, and can be installed according to the manual or installation video. (Note: AMD platform installation requires the original backplate of the motherboard, this product does not come with this backplate)
Specification:
| Heatsink Specifications： | |
|---|---|
| Dimension： | L125 mm x W138 mm x H160 mm |
| Heat pipes： | 6 mm heatpipe x 7 units |
| Copper Base： | C1100 Pure copper nickel plated |
| Screen Size： | 3.95-Inch |
| Screen Resolution： | 480×480 |
| LCD DISPLAY Connector： | MB 9 pin/USB 2.0 Port |
| TL-K12W-X28-R9 FAN Spec： | |
|---|---|
| Dimension： | L120 mm x W120 mm x H28 mm |
| Rated Speed： | 2150 RPM±10% (MAX) |
| Noise Level： | 36 dBA |
| Air Flow： | 92 CFM (MAX) |
| Air Pressure： | 3.0 mm H2O (MAX) |
| Connector : | 4 Pin (PWM Fan connector) |
| ARGB Connector： | 3 PIN 5V |
| Bearing Type : | S-FDB V2 Bearing |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Excellent Heat Dissipation - The CPU cooler as a whole is composed of a twin-tower body and two 120mm fans, a 3.95-inch magnetic screen top cover, a 7X6mm pure copper heat pipe, and a 2150RPM fan speed that can easily dissipate the temperature of the CPU, making the heatsink have a good cooling effect.
CPU Cooler Specifications - Model: Phantom Spirit 120 Vision Snow, Overall Size: 125x138x160mm, Fan Size: 120x120x28mm, Fan Speed: 2150RPM+10%, Air Pressure: 3.0mm H2O, Air Volume: 92CFM, Operating Noise≤36DB(A), Fan Power Supply Interface: 4PIN PWM, Lighting Interface: 5V 3pin ARGB, S-FDB included V2 bearings have a long life feature, which ensures that the heat sink maintains good heat dissipation.
Dual PWM Fans - The PWM fan is surrounded by ARGB arc light strips, LCP anti-vibration balanced noise reduction rings, secondary dispensing dynamic balancing technology, and 28mm thick dual fans to provide stable heat dissipation performance for the radiator
3.95 inch LCD Display - Equipped with a square 3.95-inch 480x480 resolution IPS LCD screen, this panel screen can accurately restore colors, and the newly developed TRCC can DIY the background subject.
Wide Compatibility - The heatsink supports AMD/Intel dual platforms: AM4/AM5 and LGA1851/1700/1150/1151/1155/1156/1200, and comes with dual-platform mounting fasteners, which can be well installed on the corresponding platform, and can be installed according to the manual or installation video. (Note: AMD platform installation requires the original backplate of the motherboard, this product does not come with this backplate)
Specification:
| Heatsink Specifications： | |
|---|---|
| Dimension： | L125 mm x W138 mm x H160 mm |
| Heat pipes： | 6 mm heatpipe x 7 units |
| Copper Base： | C1100 Pure copper nickel plated |
| Screen Size： | 3.95-Inch |
| Screen Resolution： | 480×480 |
| LCD DISPLAY Connector： | MB 9 pin/USB 2.0 Port |
| TL-K12W-X28-R9 FAN Spec： | |
|---|---|
| Dimension： | L120 mm x W120 mm x H28 mm |
| Rated Speed： | 2150 RPM±10% (MAX) |
| Noise Level： | 36 dBA |
| Air Flow： | 92 CFM (MAX) |
| Air Pressure： | 3.0 mm H2O (MAX) |
| Connector : | 4 Pin (PWM Fan connector) |
| ARGB Connector： | 3 PIN 5V |
| Bearing Type : | S-FDB V2 Bearing |
