Raidmax Meshian X616 Gaming PC Case (Black) (X616TBF)





CREATION OF

VALUE & FUNCTION

• ​Mid Tower multi-color colorful chassis

• Convenient top-mounted I/O, can support USB 3.0 X 1

• Plentiful storage space, full support for SSD/HDD hard drives

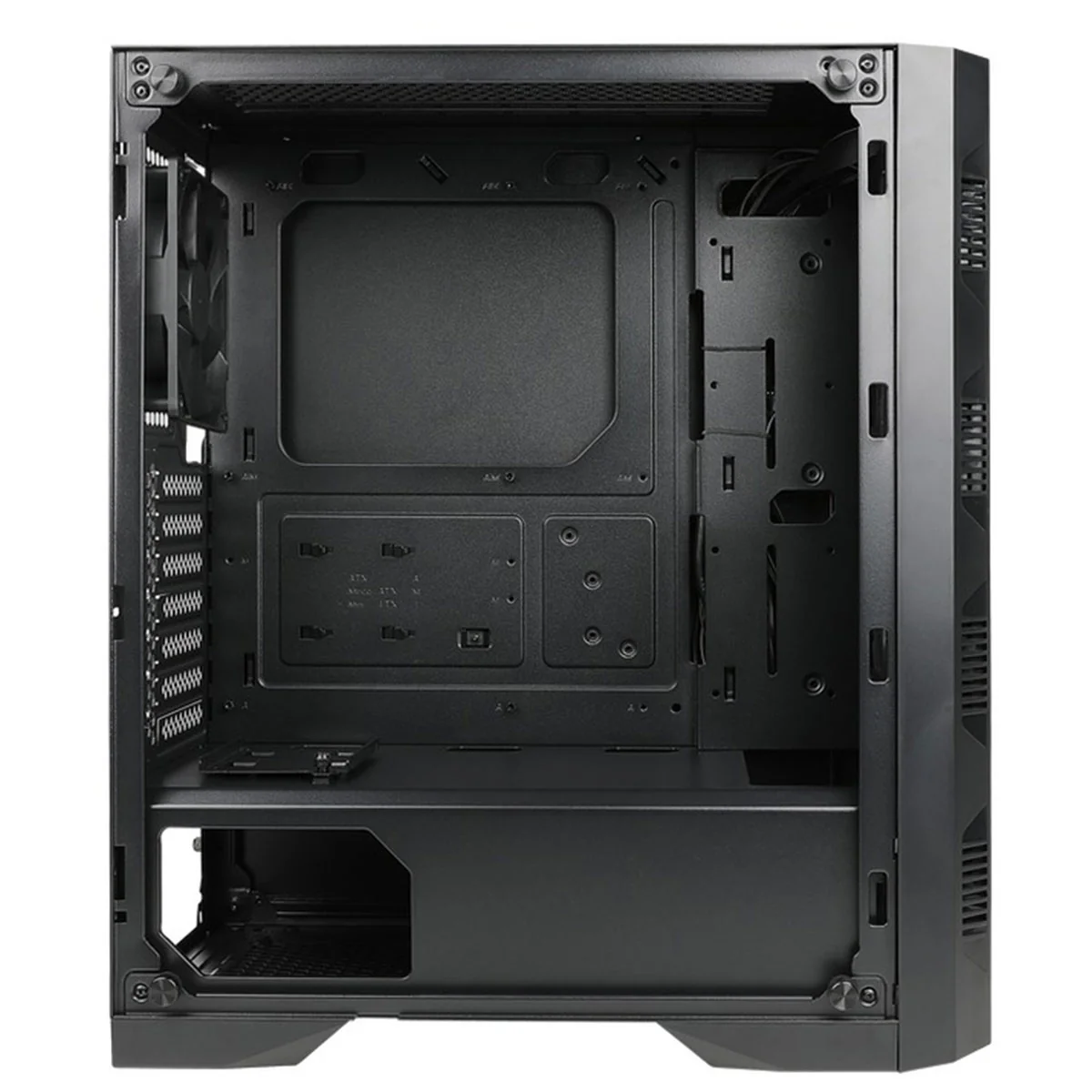

• Sufficient cable management space, 14mm at the flat plate and 32mm at the bend, convenient for users to have a good installation experience

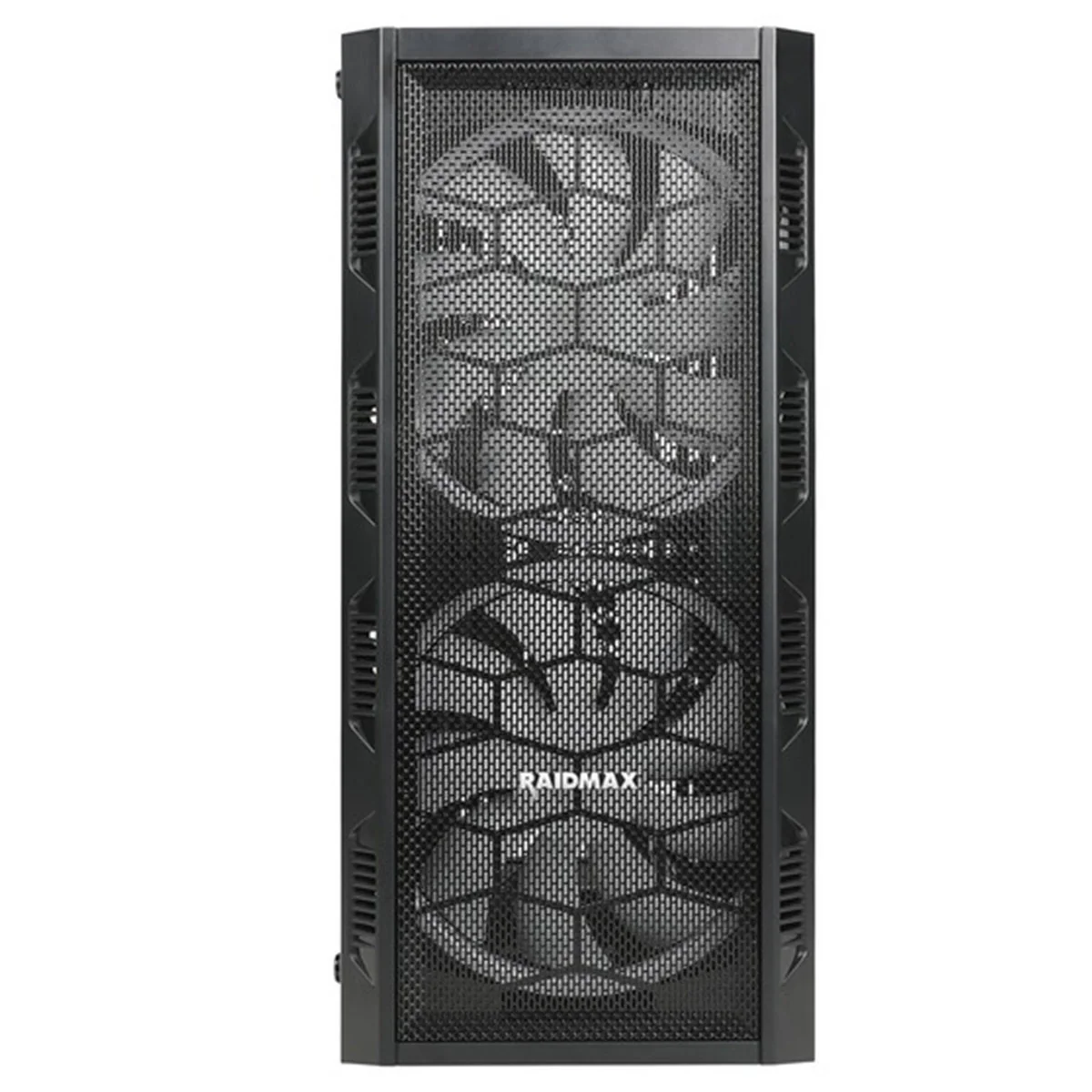

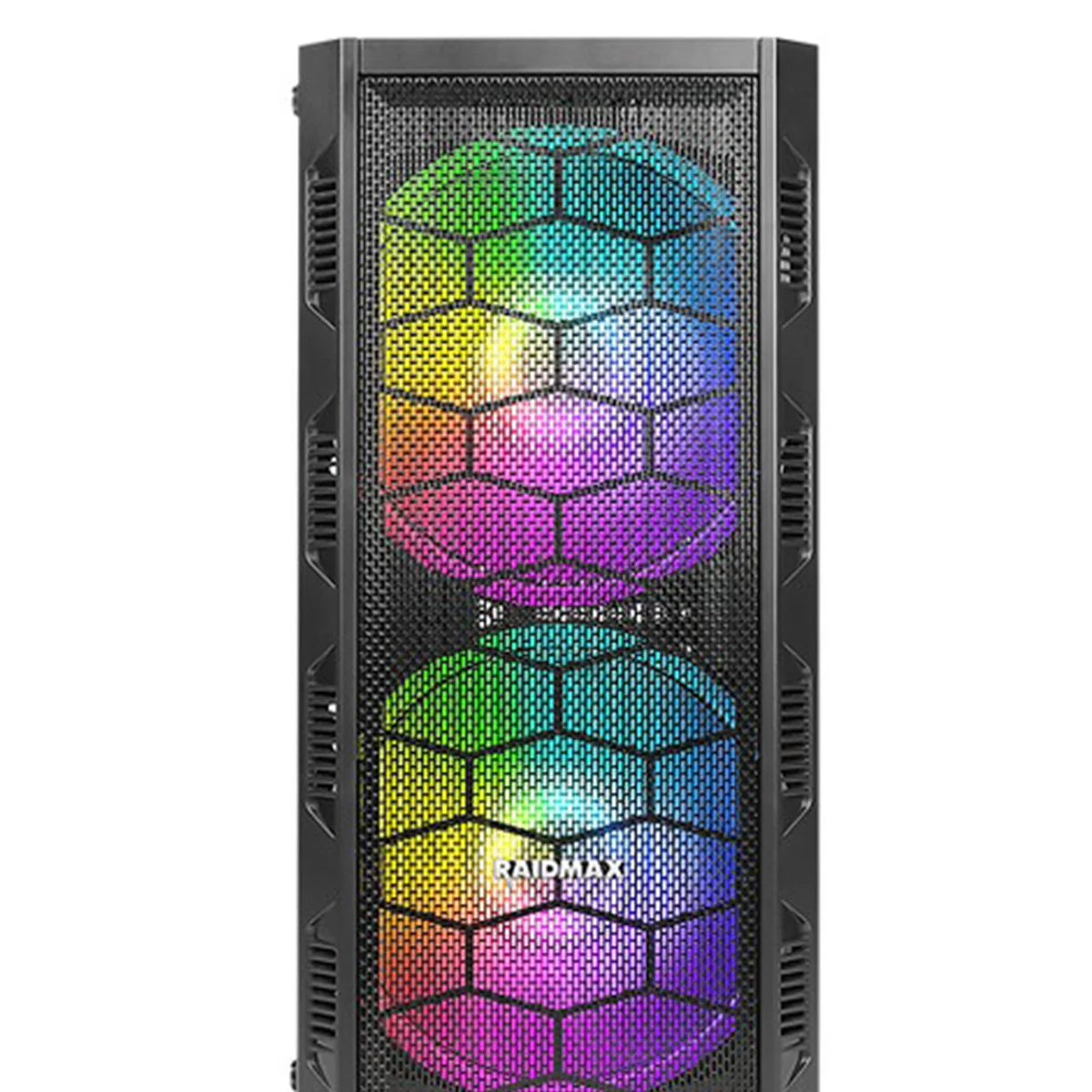

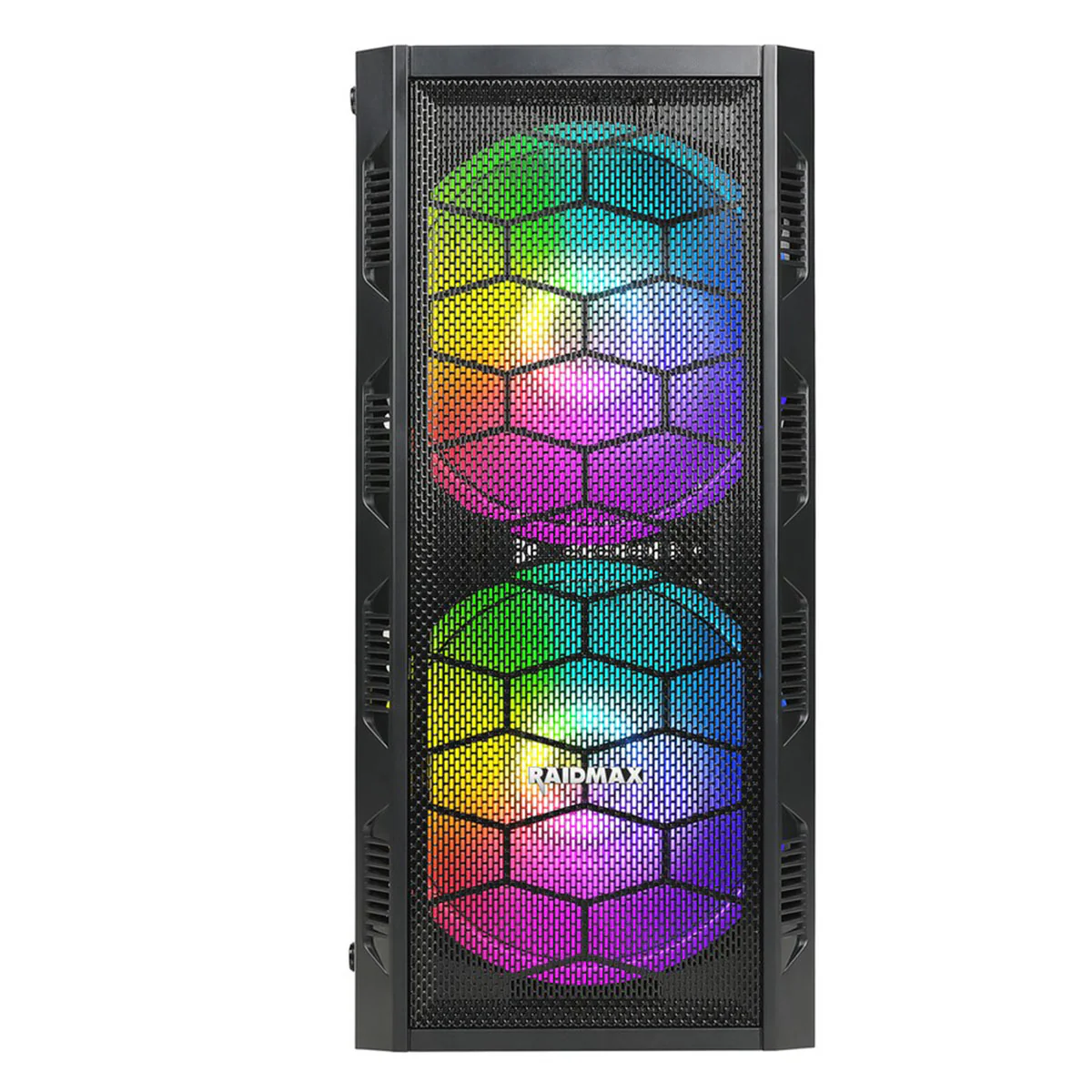

• Two 200mm, adjustable dazzling light effect fans in the front panel

• The water-cooled front can support up to 360mm

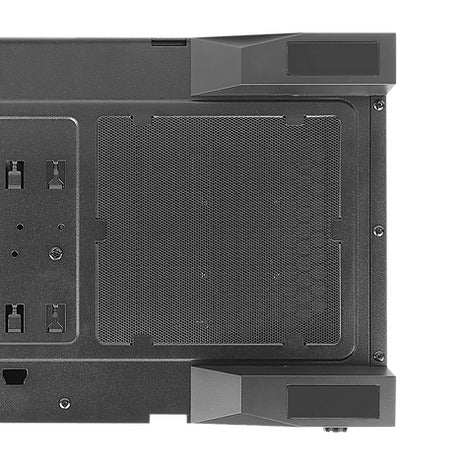

• Detachable filters are attached to the top and bottom for easy cleaning

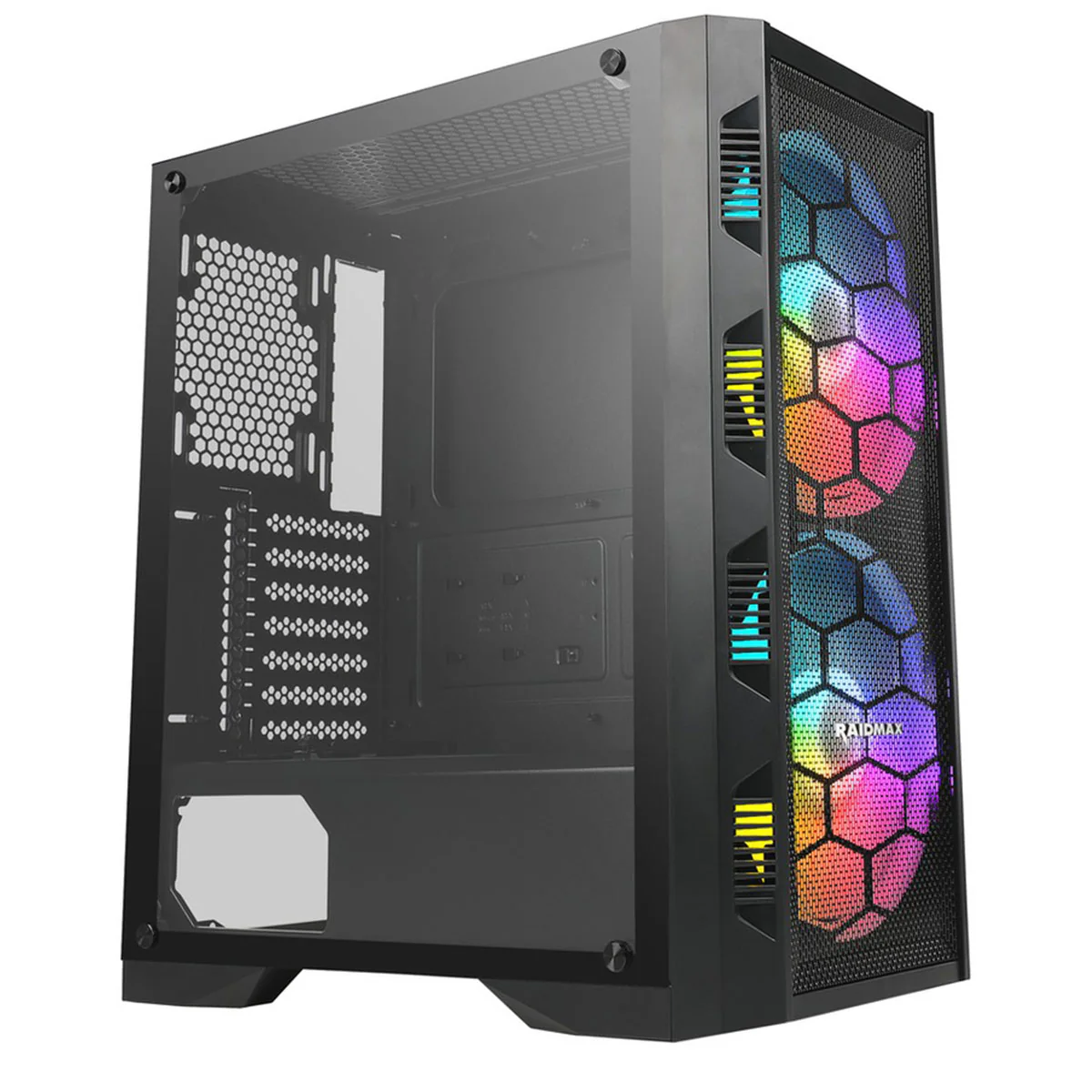

• Tempered glass transparent side panels

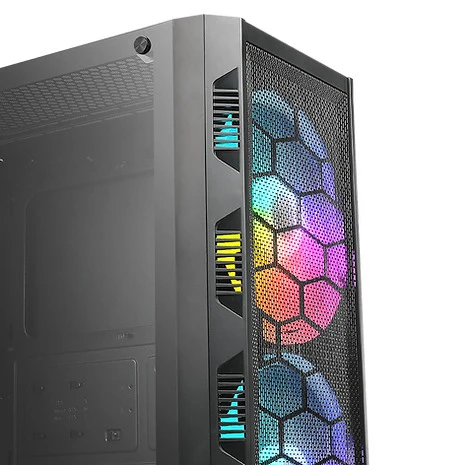

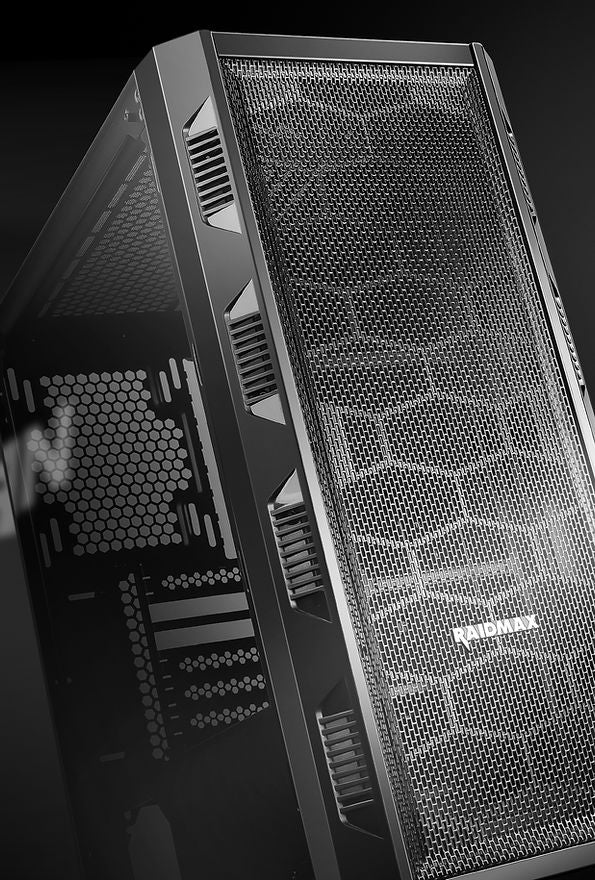

• Shark gill-shaped air intake holes are designed on the side of the front panel to facilitate heat dissipation

• Detachable hard disk bracket for easy installation for extended power supplies









SPEFICATIONS:



Product Name	X616
Dimensions	420mm(L) X 220mm(W) X 464mm(H)
Motherboard Support	ATX / Micro-ATX / ITX
Expansion Slots	7
Materials	Steel + Plastic
3.5"HDD / 2.5"SSD	2 / 1
2.5"SSD	2
I/O Ports	Power,Reset,Fan Control Button,2 X USB2.0,1 X USB3.0,HD-AUDIO
Front Fan	120mm X 3 /140mm X 2 /200mm X 2
Top Fan	120mm X 2 /140mm X 2
Rear Fan	120mm X 1/140mm X 1
Included Fan(s)	200mm X 2 ARGB fans in front,120mm X 1 regular fan in rear
Front Radiator	120mm / 140mm / 240mm / 280mm / 360mm
Top Radiator	120mm / 240mm
Rear Radiator	120mm
Max GPU Length	≦ 355mm
Max CPU Cooler Height	≦ 170mm
Side Panel	Tempered Glass Panel
PSU Support	≦ 170mm
Dust Filter	Front / Bottom / Top
Net Weight	5.3 Kgs
Gross Weight	6.3 Kgs
