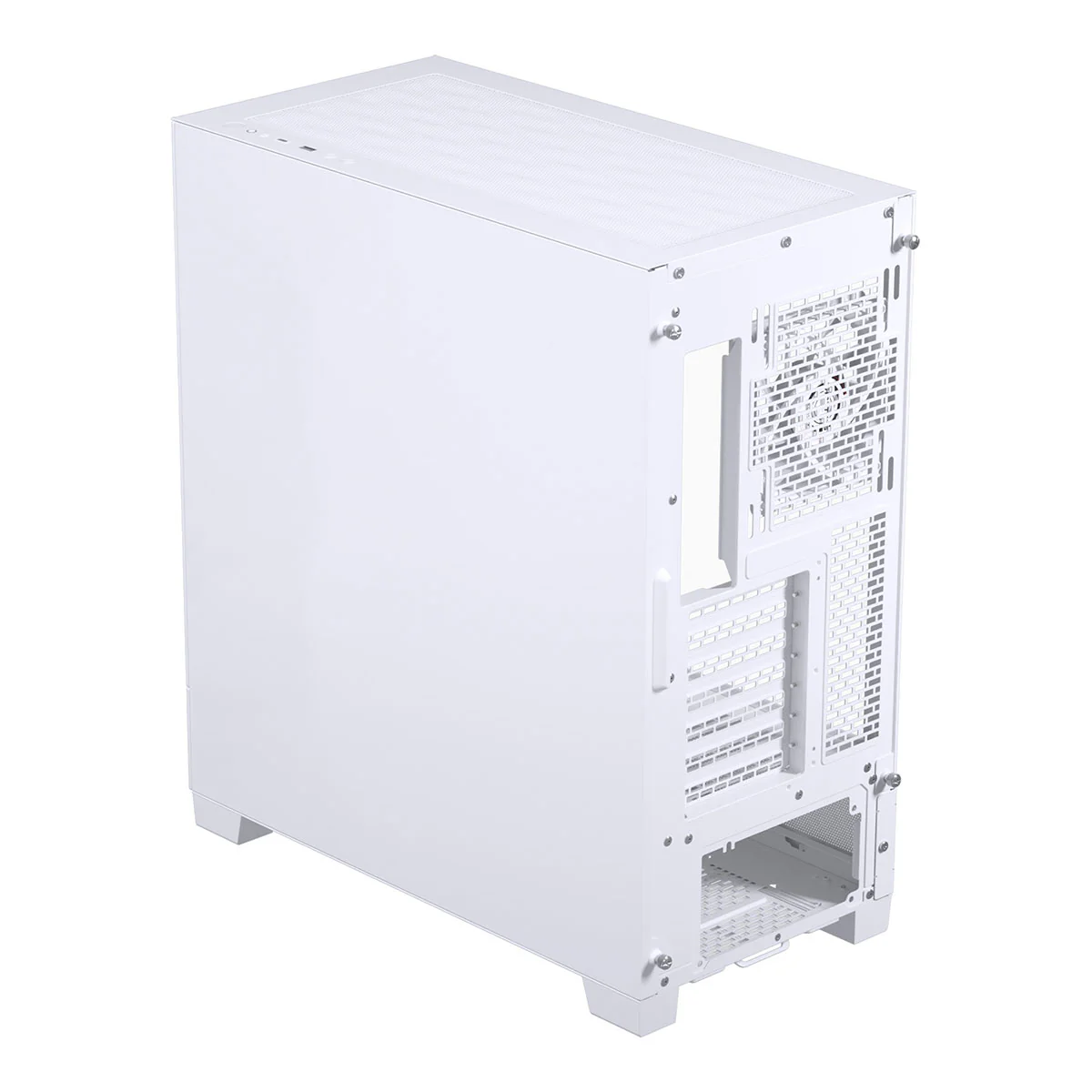

XT Pro Ultra

Spacious, Powerful & Affordable
With new hardware releases demanding more cooling capacity and internal space, the XT-series is designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans, and dedicated radiator space in the top of the chassis.

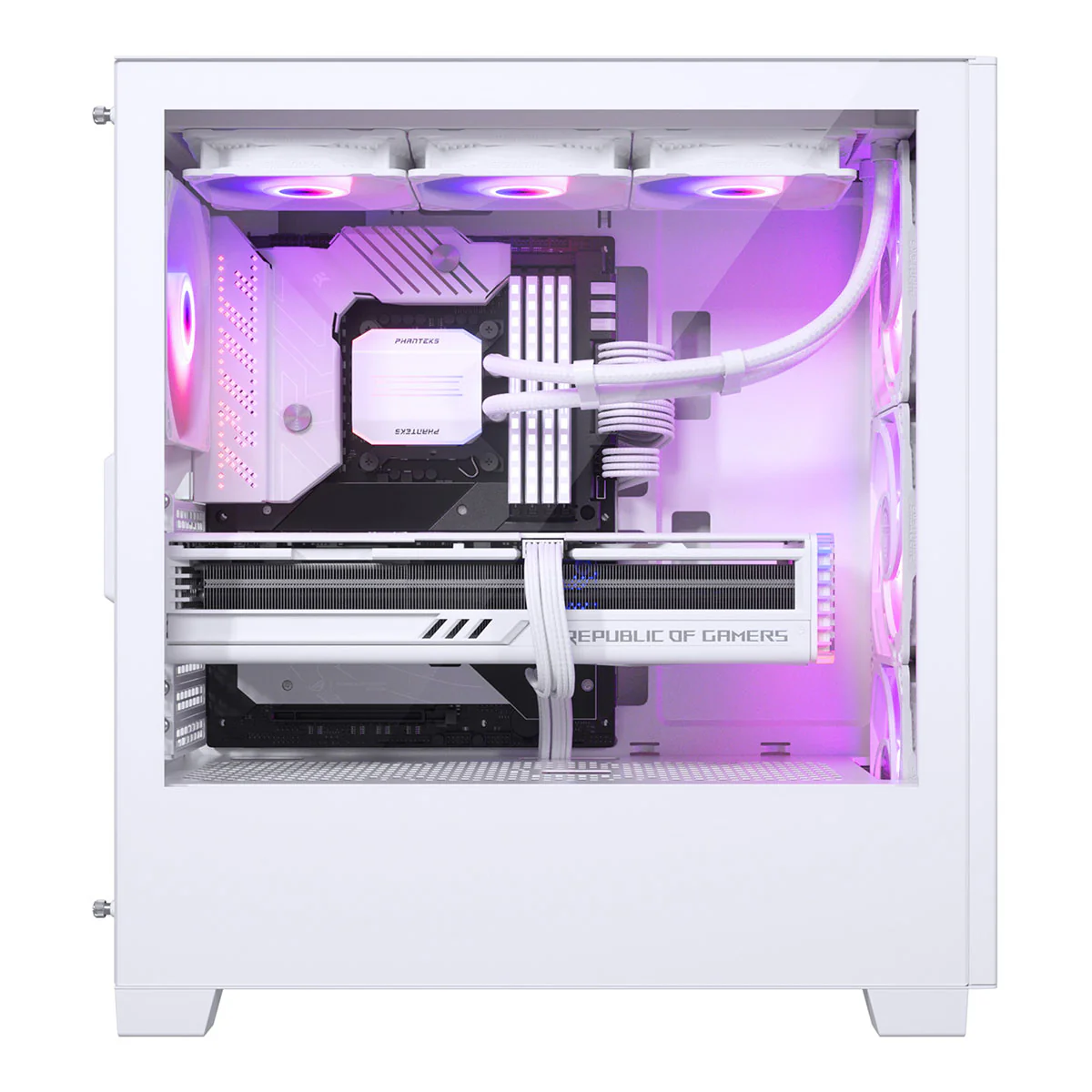

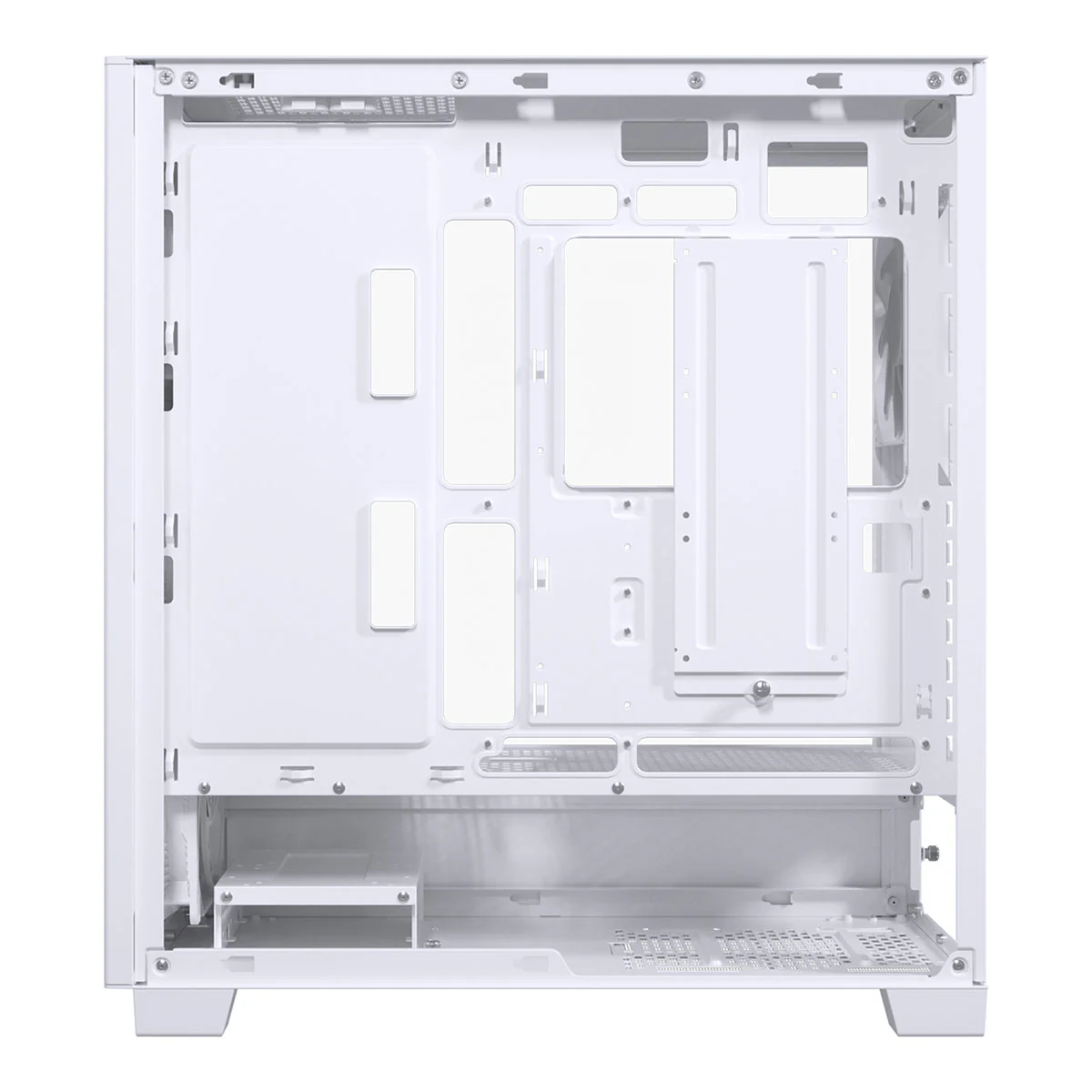

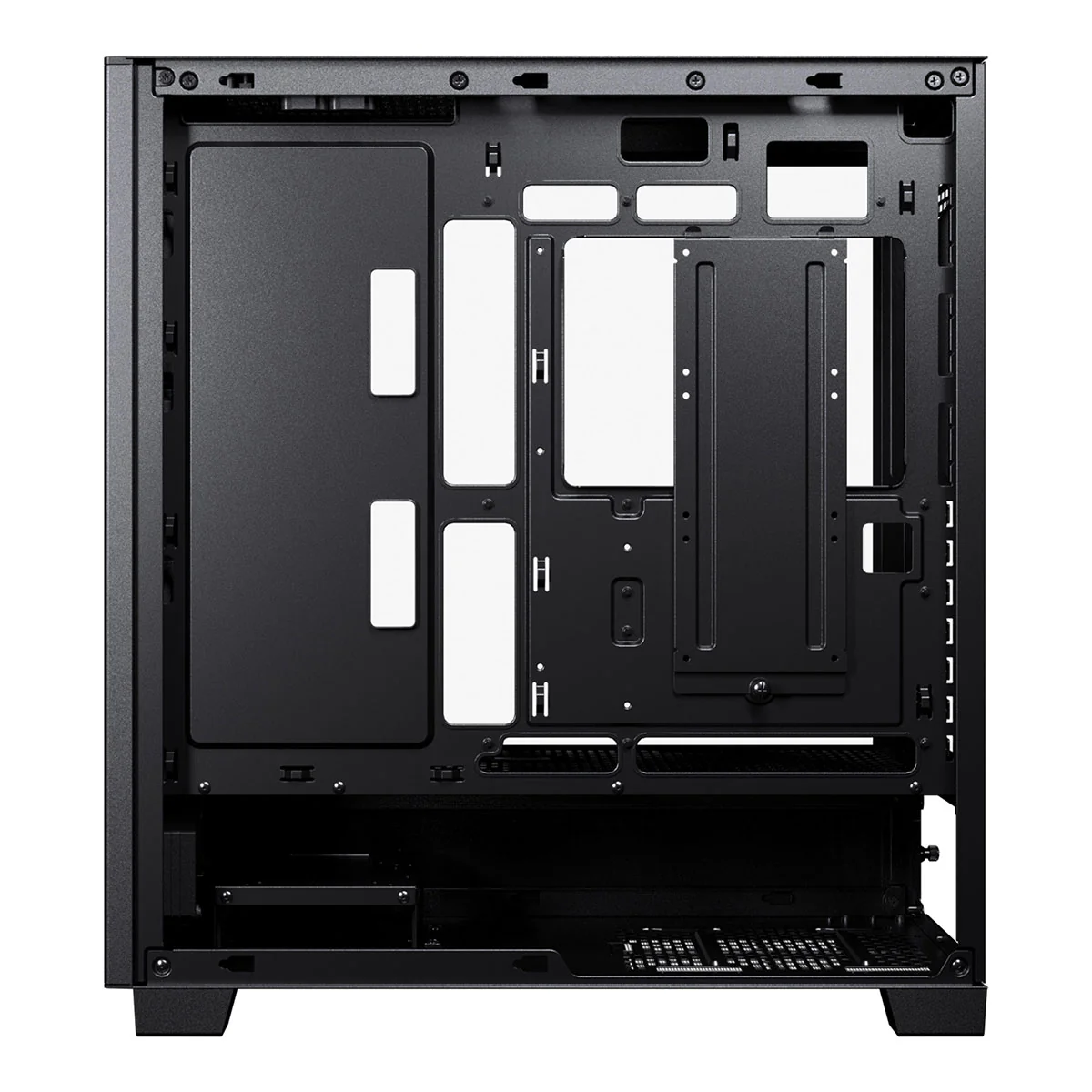

The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provide direct cooling.

Specifications:

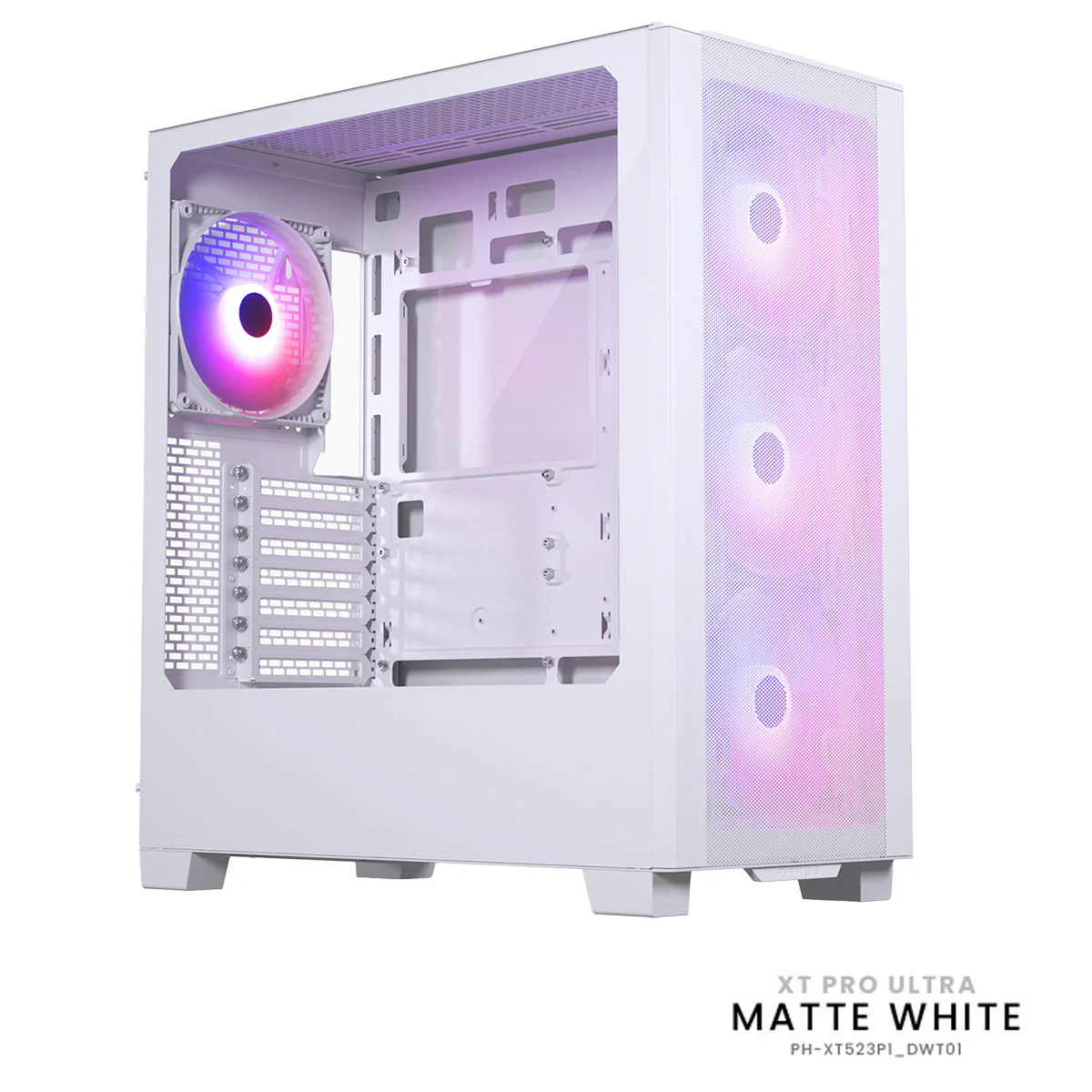

Model No.	PH-XT523P1_DBK01 / PH-XT523P1_DWT01
Case Dimensions	450 x 230 x 500 mm | 17.7×9.05×19.68 in
Form Factor	Mid-Tower
Mainboard Support	E-ATX* | ATX | Micro-ATX | Mini-ITX (*Up to 280mm wide)
Rear Mainboard Support	MSI Project Zero | ASUS BTF | Gigabyte Project Stealth
Materials	Steel chassis | Tempered glass | ABS plastic
Side Window	Yes
PCI Slots	7
Vertical GPU Support	3-slots (Riser Cable sold separately)
Internal 2.5″ Bay	5 (+ 1x 3.5″ HDD)
Internal 3.5″ Bay	2 (+ 3x 2.5″ SSD)

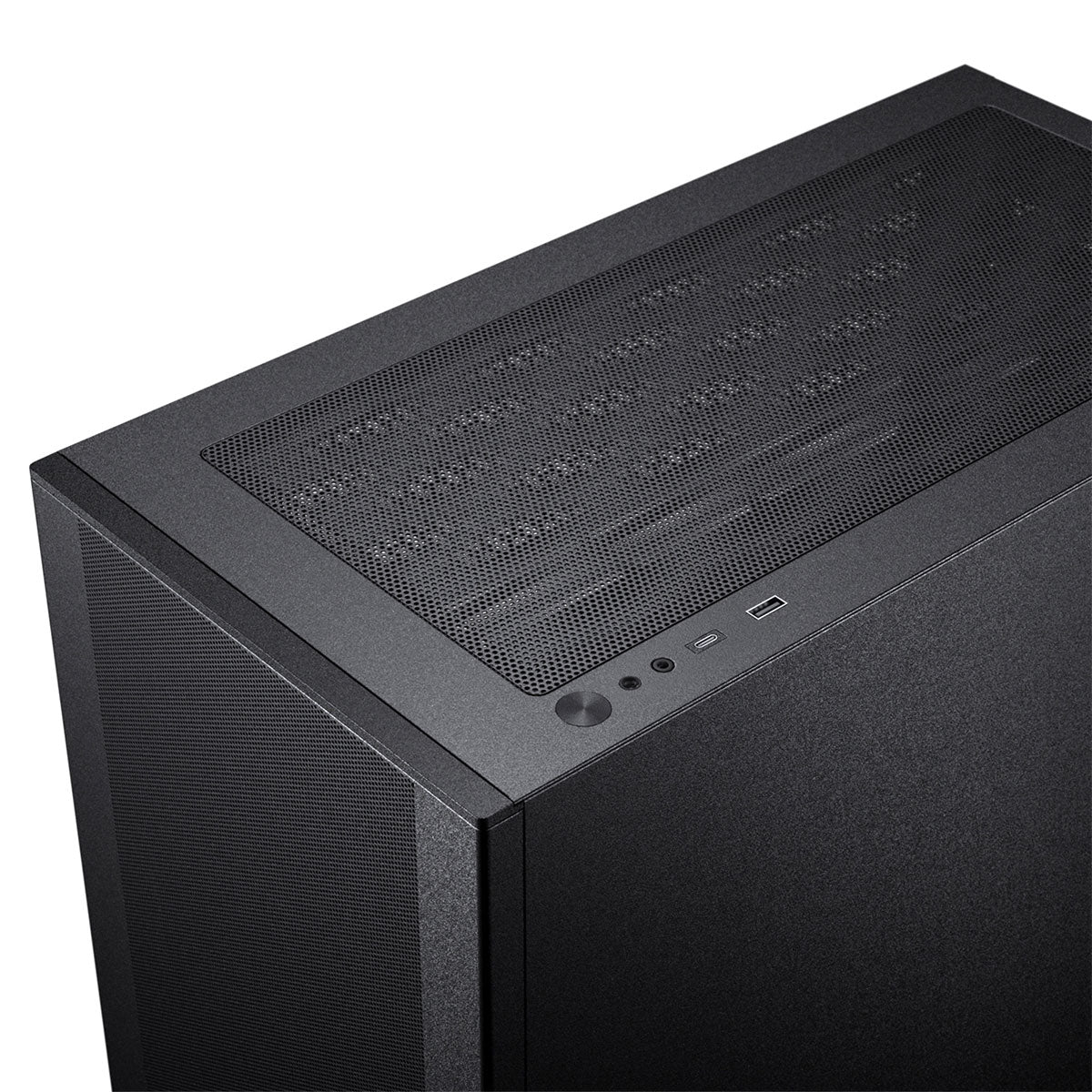

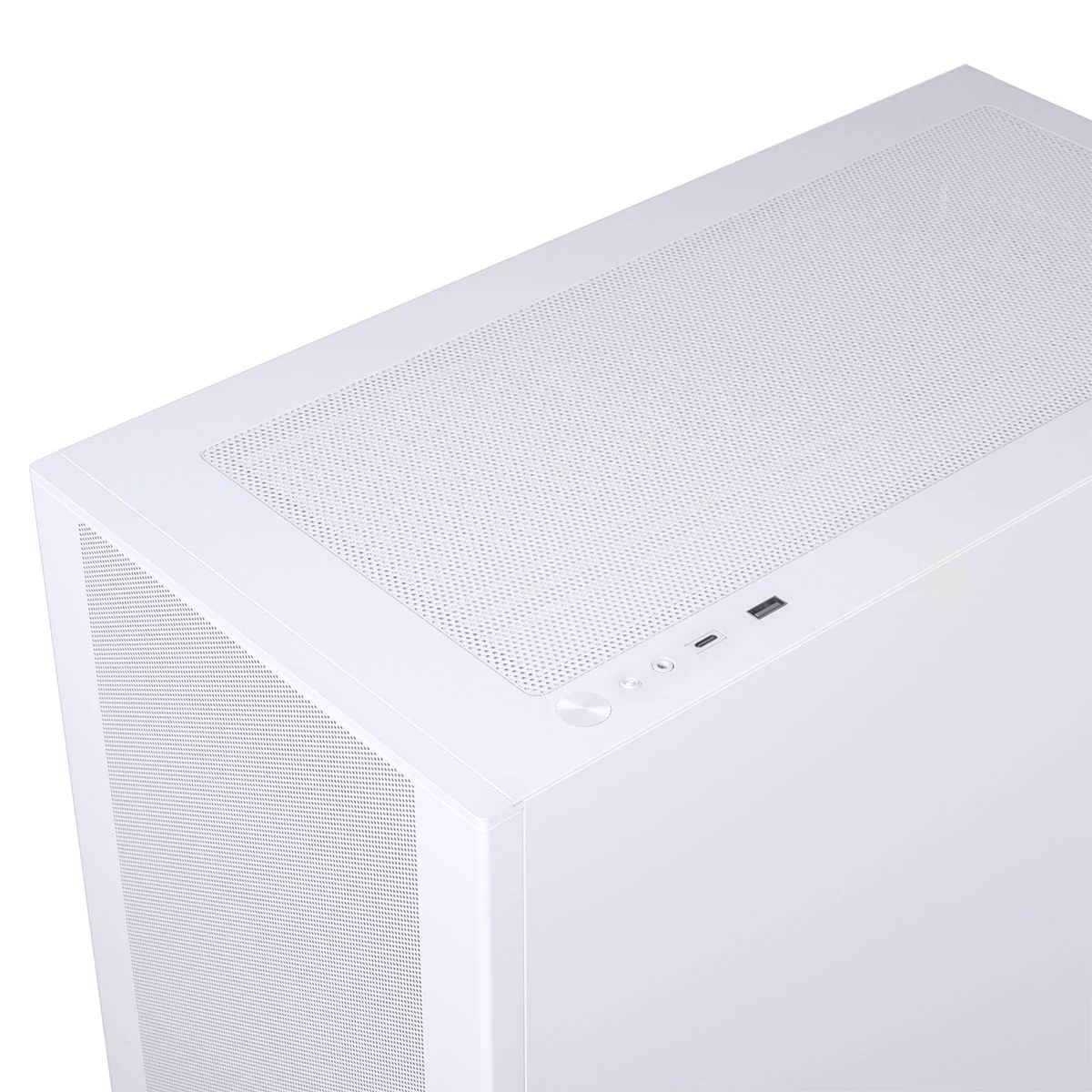

Front I/O	1x USB-C 3.2 Gen2, 1x USB 3.0, Microphone | Headphone combo, Power Button, Reset Button
Total Fans (120 mm | 140 mm)	10x | 6x
Fan Support Top (120 mm | 140 mm)	3x | 2x

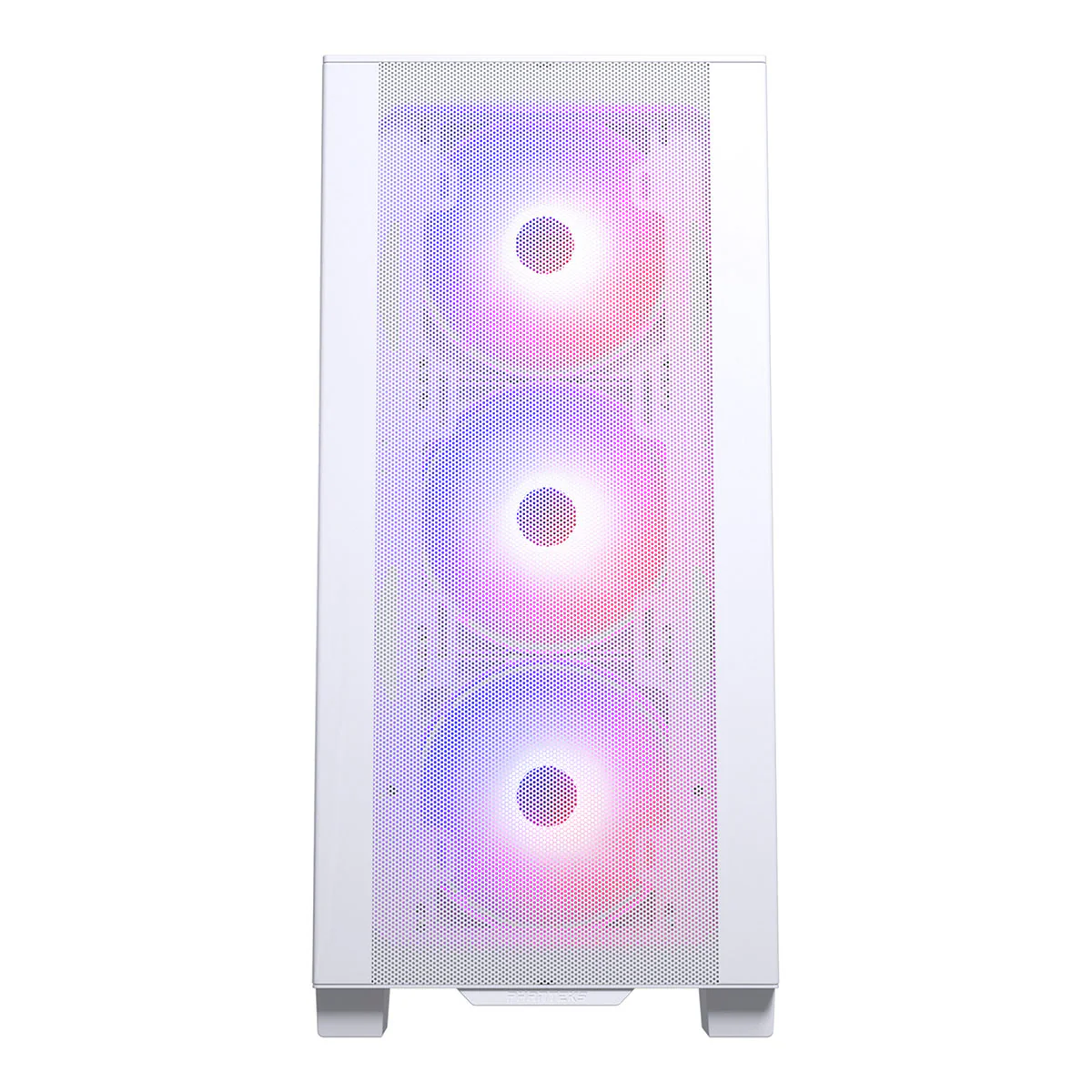

Fan Support Front (120 mm | 140 mm)	3x | 3x
Fan Support Rear (120 mm | 140 mm)	1x | 1x
Fan Support Midplate (120 mm | 140 mm)	3x | –
Radiator Support Top	Max. 360
Radiator Support Front	Max. 240
Radiator Support Rear	120
CPU Cooler Height Clearance	184 mm | 7.24 in
GPU Length Clearance	415 mm | 16.33 in
GPU Width Clearance	184 mm | 7.24 in
Power Supply Length Clearance	270 mm | 10.62 in
Net Weight	7.55 kg | 16.64 lbs
Gross Weight	9.45 kg | 20.83 lbs
Warranty	5 Years limited
Included Fans	4x M25-140 D-RGB fans
