Phanteks Evolv S2 D-RGB TG Premium Mid-Tower Case (Silver Black, Silver White)

Phanteks Evolv S2 D-RGB TG Premium Mid-Tower Case (Silver Black, Silver White)

Evolv S2

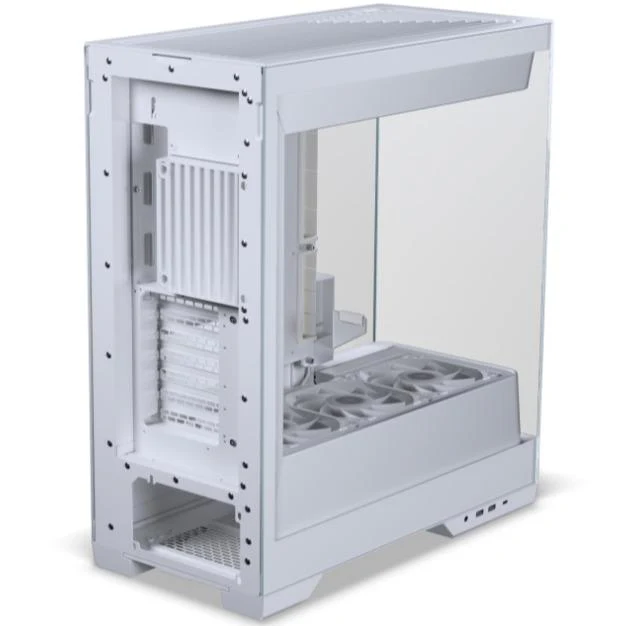

See-Through Tempered Glass Chassis

A unique see-through ATX chassis design makes the Evolv S2 stand out from the crowd. It feels spacious and highlights the main system components with a compact footprint making it look perfect on any desk.

The interior of the Evolv S2 blends with the hardware components for a fully integrated look with all cooling components sitting flush into the top and base. Having a vertical cooling system with triple intake fans in the bottom that directly cool the GPU and a dedicated top 360 radiator area makes the Evolv S2 perform in any condition.

• Unique see-through tempered glass chassis design
• Integrated D-RGB Lighting throughout the chassis
• Support for ATX rear-connect mainboards
• Four high airflow M25-120 mm D-RGB fans included and built-in
• All fans and radiators fully integrate into the chassis for a clean look
• Triple 120mm fan positions in the bottom for air intake and direct GPU cooling
• Triple 120mm fan positions in the top with dedicated 360 radiator clearance for exhaust
• Rear 120mm fan position for a total of 7x 120mm fan positions



Ultra Clean Look

One of the main features that sets the Evolv S2 apart from other cases is the extremely clean look. All screws are covered by panels, all cables are hidden behind silkprint on the left glass panel and the support for rear-side connectors enables a zero cable setup.

Good Cooling Performance

The Evolv S2 has good cooling performance with its bottom air intake and top exhaust. The top features dedicated space for a 360 radiator.

Premium Aesthetics

The Evolv S2 has a unique design with its see through chassis and integrated D-RGB running from the top to the bottom.



Model Number	PH-ES524S2_DBK01 / PH-ES524S2-DWT01

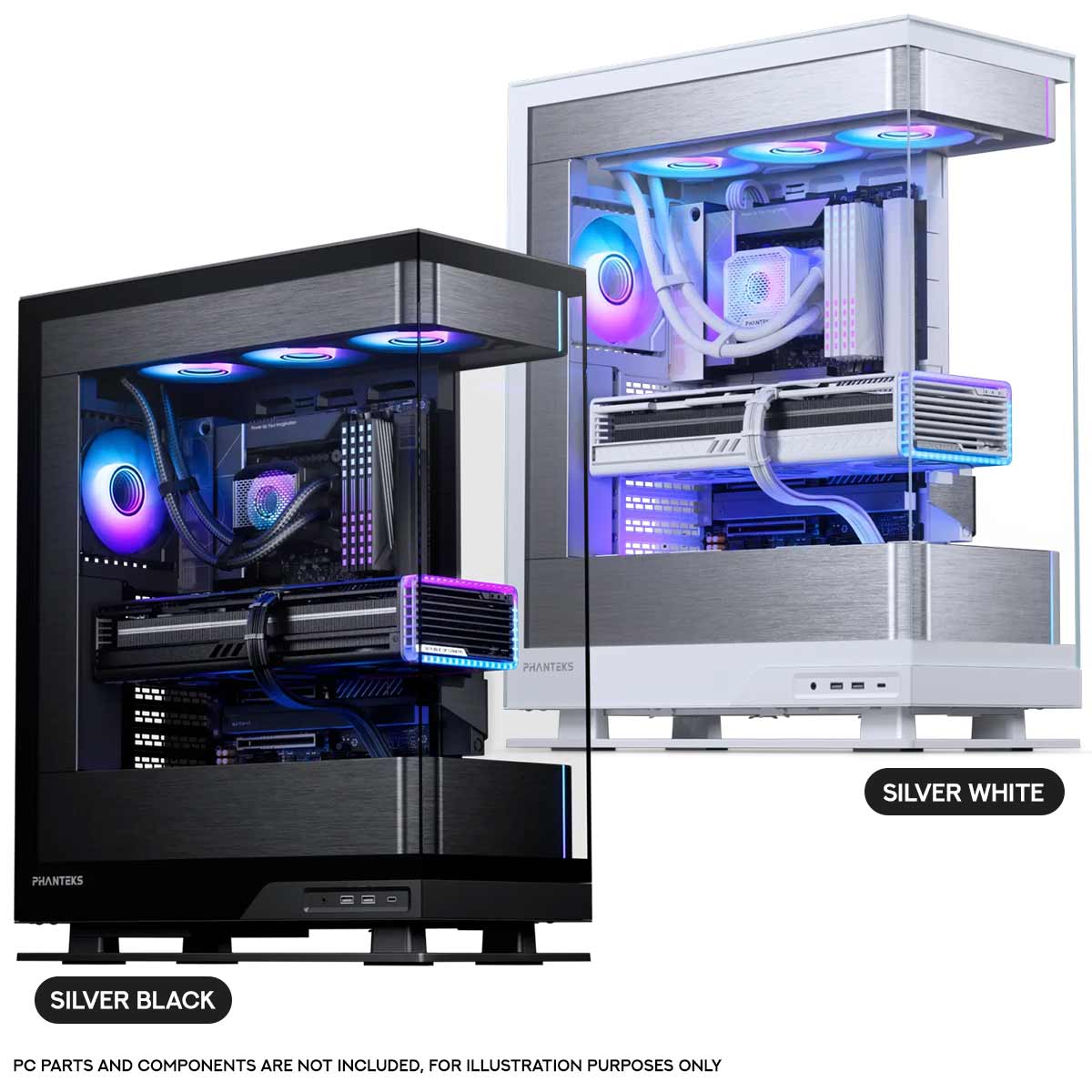

Colour	Silver Black / Silver White
Product Dimension (D x W x H)	455 x 230 x 525 mm
Form Factor	Mid Tower
Mainboard Support	ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280mm wide)
Rear-Sided Mainboard Support	Yes, ATX
Integrated Fans Look	Yes
Cable Management Cover	Silkscreen on tempered glass
Integrated D-RGB Lightstrip	Yes
Materials	Steel Chassis, Tempered Glass, ABS plastic covers
Front IO	1x USB-C 3.2 Gen2x2 + 2x USB 3.0 Microphone/Headphone combo Reset Button Power Button
Connectors	Power Switch Reset Switch HD-audio USB 3.0 USB-C Type-E
Warranty	5 Years Limited
Weight	9.90 kg
What’s Included	1x Evolv S2 chassis 1x M25-120 mm Regular D-RGB fan 3x M25-120 mm Reverse D-RGB fan 1x Storage Bracket (2x HDD / 2x SSD) 1x Accessory box with necessary screws

Expansion

PCI Slots	7
Internal 3.5″ Bay	2 (1x if 2x SSD installed)
Internal 2.5″ Bay	2 (0x if 2x HDD installed)
Vertical GPU Support	Yes, with optional bracket: PH-VGPUKT4.0_03R or PH-PGPUKT4.0_01

Fans & Radiators

Top Fan	3 x 120 mm
Bottom Fan	3 x 120 mm (3x included)
Rear Fan	1 x 120 mm (1x included)
Top Radiator	Up to 360

Clearances

GPU Length	395 mm
GPU Width	175 mm
CPU Cooler Height	175 mm
Power Supply	210 mm
Top 360 Radiator	410 x 125 x 55 mm
