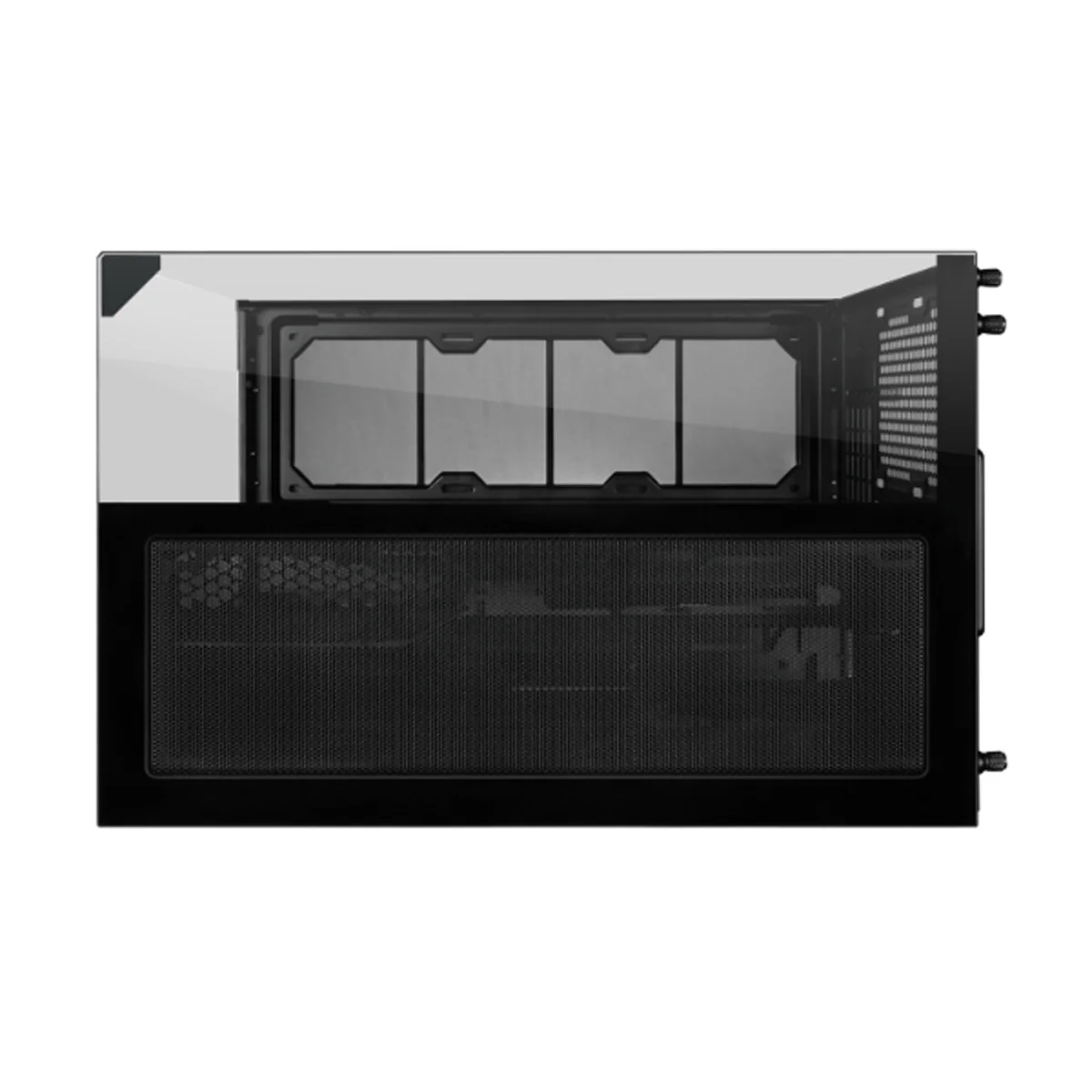

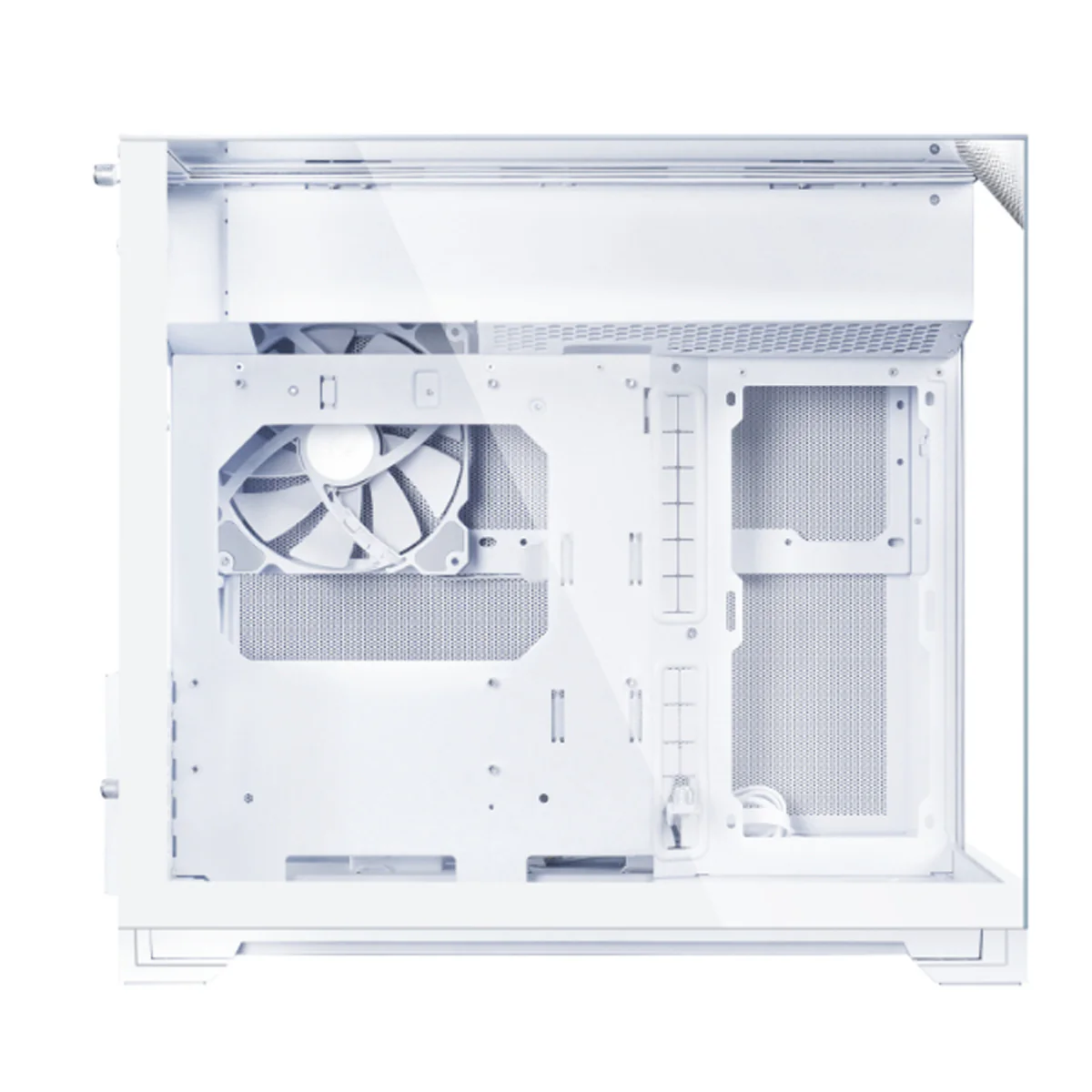

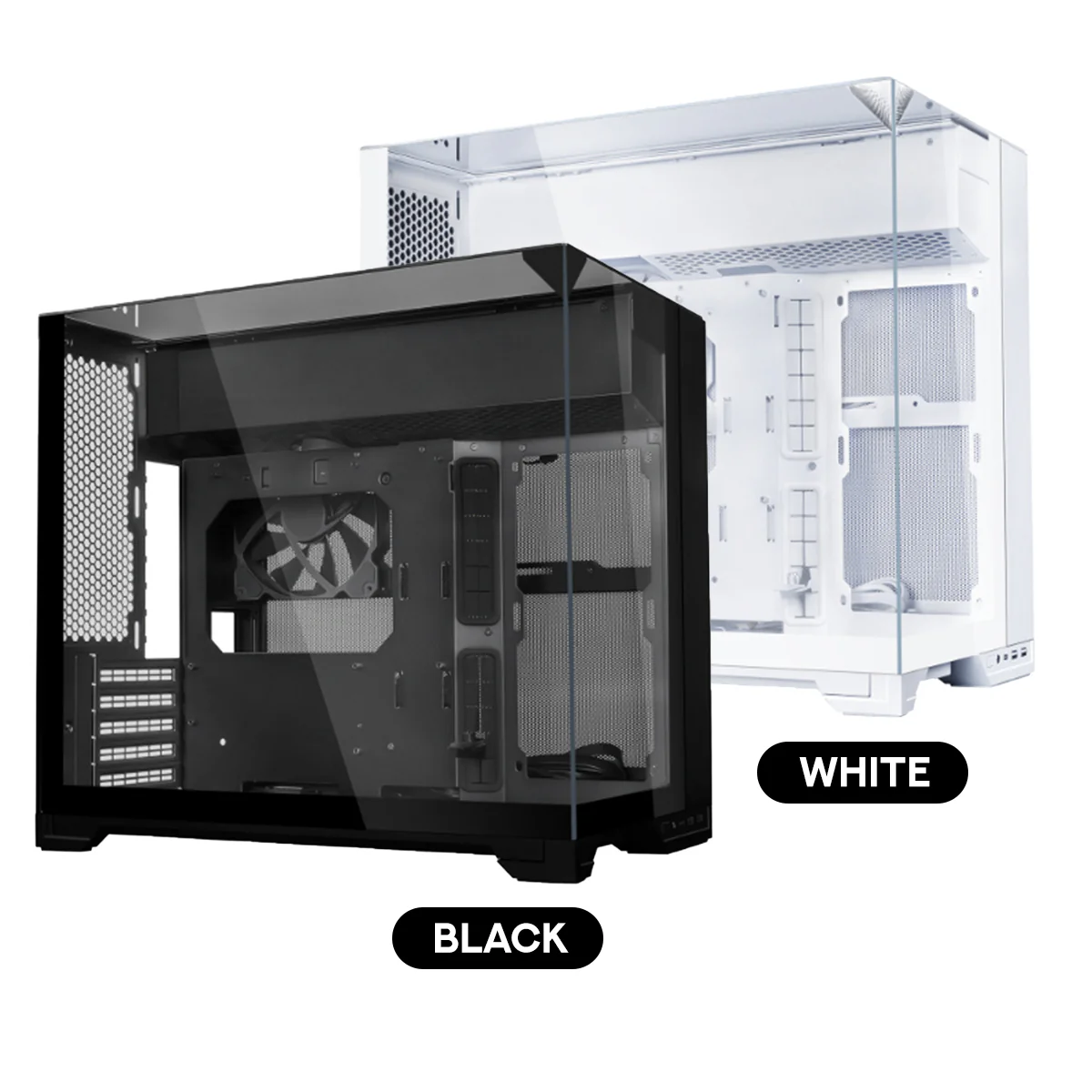

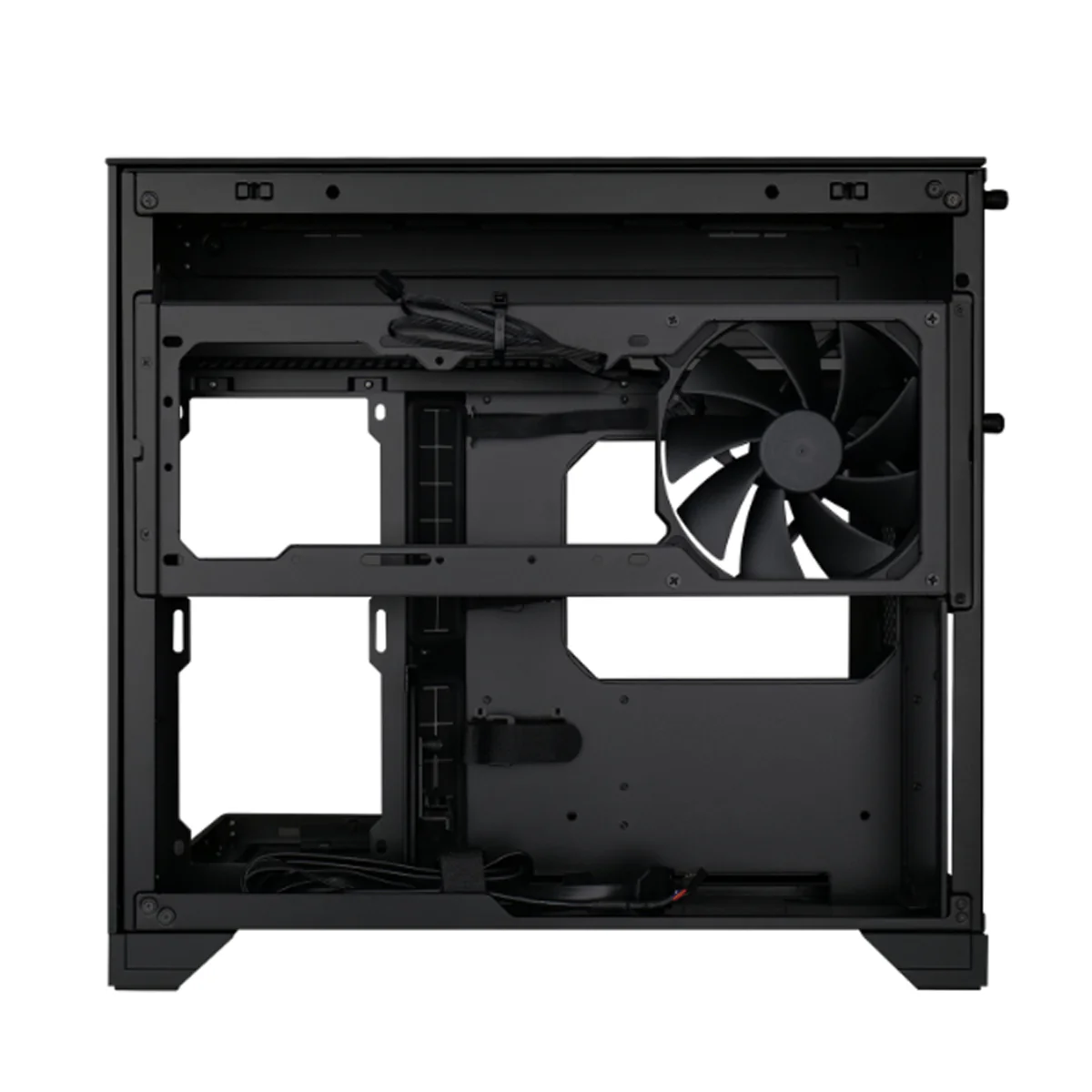

Lian Li O11 Vision-M Compact Dual Chamber M-ATX Gaming PC Case (Black, White)

Features

• Compact dual-chamber design with three-sided glass showcase
• Front, side, and top tempered glass panels for panoramic viewing
• Supports M-ATX and Mini-ITX motherboards
• Supports graphics cards up to 410 mm
• Supports up to 360 mm top-mounted radiator
• Glass panel mesh cutout improves top airflow
• Pre-installed 140 mm fan enhances radiator cooling
• Hidden second-chamber routing for tubes and cables
• Removable modular divider for flexible interior presentation

• Adjustable anti-sag bracket for horizontal GPUs
• Supports ATX PSU up to 182 mm





Product Name	O11 VISION-M
Model No.	O11VMX (Black) / O11VMW (White)
Color	Black / White
Digital Screen	No
Dimensions	419.6 × 275.1 × 395.2 mm (D × W × H)
Materials	Steel / 4.0 mm Tempered Glass / 3.0 mm Tempered Glass / Aluminum
Motherboard Support	Micro-ATX (M-ATX), Mini-ITX Back-Connect: No
Expansion Slots	5
Storage	1 × 3.5" HDD + 2 × 2.5" SSD or 3 × 2.5" SSD
GPU Length Clearance	410 mm
CPU Cooler Height Clearance	162 mm
PSU Support	ATX (Under 182 mm)
Radiator Support	Top: 360 mm / 240 mm Side: 240 mm
Fan Support	Top: 3 × 120 mm Side: 2 × 120 mm Second Chamber: 1 × 140 mm (Pre-installed) + 2 × 120 mm Bottom: 3 × 120 mm Rear: 2 × 120 mm
Included Fans	Second Chamber (Side): 1 × 140 mm
Fan Connector	4-Pin PWM
Dust Filter	Removable Bottom Dust Tray ×1
I/O Ports	Power Button ×1 USB 3.0 Type-A ×2 USB 3.2 Type-C ×1 Audio ×1
