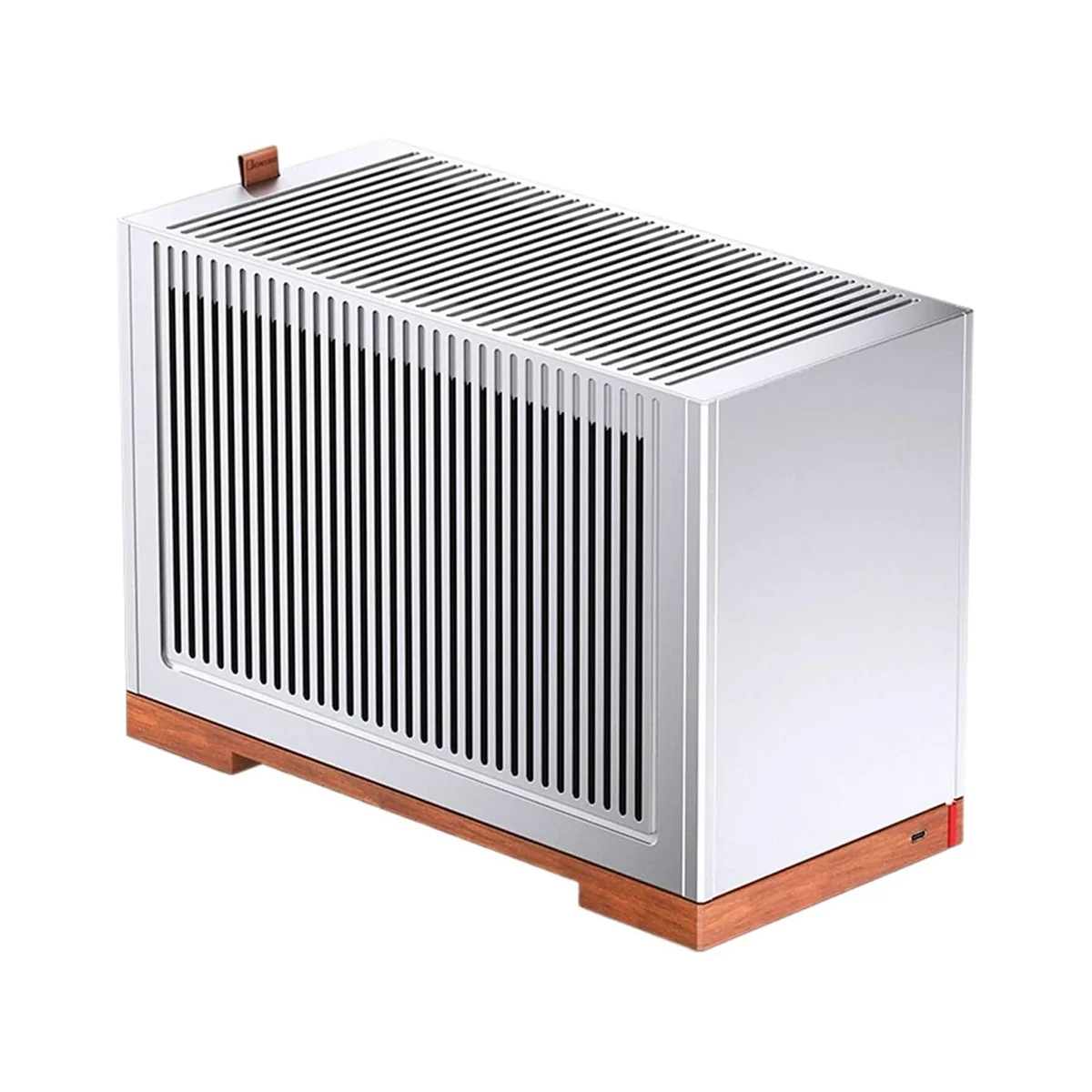

Jonsbo T9 5.0 ITX Separated Cabinet Computer Case (Silver, Black)

• Features a Mini ITX form factor, matching the installation specifications of compact computer build components for seamless assembly of small-form-factor PC systems.
• Comes with a standard PCI-E5.0 graphics card extension cable, supporting the connection of PCI-E5.0 graphics cards to meet the needs of high-performance component configurations.
• Constructed with aluminum alloy material, forming a sturdy frame that maintains structural stability while keeping the chassis lightweight for easy placement and handling.
• Designed as the 5.0 version of the chassis model, incorporating updated design elements to align with the assembly requirements of modern computer hardware components.
• Provides a dedicated space layout for essential PC parts, facilitating organized wiring and component installation for routine build and upgrade tasks.



Specification:

T9 5.0 version parameters
Product model	T9-5.0
Product size	155mm (W) * 325mm (D) * 224mm (H)
Material	4mm aluminum plate/1mm steel plate/20mm North American walnut wood
Hard drive slots	2.5 SSD * 1/3.5 HDD * 1+2.5 SSD * 1
Compatible motherboard	ITX
Front I/O port	Type-C * 1
Power supply	SFX 100mm
Heat sink	58mm-78mm
Graphics card	202mm-310mm, standard PCI-E 5.0 adapter cable
Fan (optional)	Top 120mm * 1
Weight	Net weight 3.85kg
High-concerned chemical	None
With Power Supply	No
With Fan	No
With Side Panel Window	No
Power Supply Mounted	Bottom
Dust Filters	Bottom
RGB Support	NO RGB
140mm Fan Options	0
120mm Fan Options	1
Hot-Swap Drive Bays	0
Internal 2.5" Drive Bays	1
Internal 3.5" Drive Bays	1
Max GPU Length	310mm
Max CPU Cooler Height	78mm
Max PSU Length	100mm
Case Weight	4kg
Case Size	155mm(W) * 325mm(D) * 224mm(H)
Power Model	SFX
Chassis Type	Desktops
Front Ports	Type-C*1
Application	Desktop
Form Factor	Mini-ITX
Material	Aluminum alloy
Model Number	T9 5.0
Type	Horizontal
Series	T9
