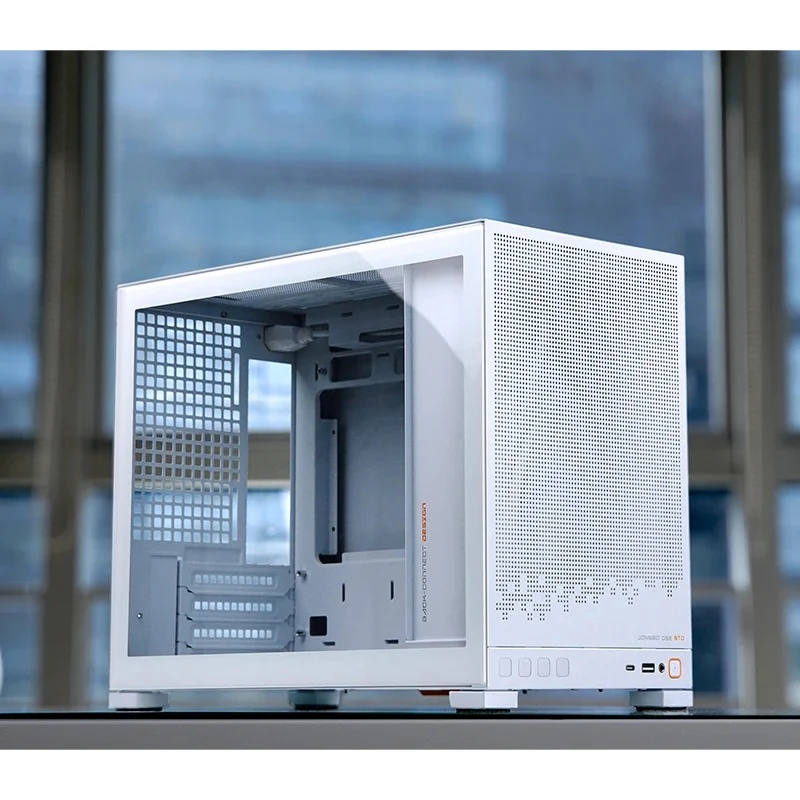

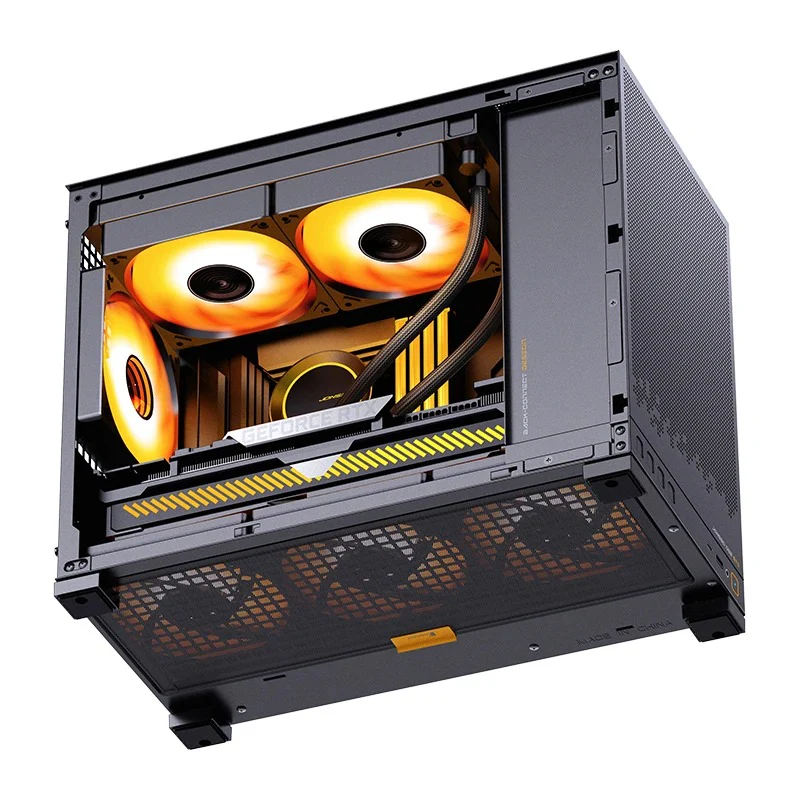

Jonsbo D32 STD M-ATX Computer Case (Black, White)

The JONSBO D32 STD Standard Edition is designed to build a new generation of standard MATX chassis with the use of simple contour lines to meet practical needs and economy under the premise of synchronizing updates with hardware development changes. Usually compatible with 360 water-cooled chassis three-circumference ratio can not be small and comfortable, for most users, compatible with 240 water-cooled and high-performance twin tower air cooling is still the desktop small host first choice. Therefore, the D32 STD is compatible with new hardware specifications such as back-plug motherboards while keeping the precision size small, and the overall balance/economy is good enough to meet the needs of most users.





Specifications:

Model	D32 STD
Color	Black, White
Dimensions (w/o feet and other protrusions)	384mm (D) × 207mm (W) × 302mm (H)
Dimensions (with feet and other protrusions)	395mm (D) × 207mm (W) × 314mm (H)
Case Material	SPCC Steel (0.7mm + 0.8mm)
Motherboard Support	Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect)
Drive Bay	2.5": Up to 3 3.5": Up to 1 (shared with one of the 2.5" mounts)
Front I/O Port	USB3.2 Gen1 Type-A × 1 / USB3.2 Gen2 Type-C × 1 / AUDIO × 1 & MIC × 1
Fan	Top: 2 × 120mm or 2 × 140mm Rear: 1 × 120mm Bottom: 3 × 120mm or 2 × 140mm
Radiator Support	Top, up to 240mm
ATX PS2 PSU Clearance	• When GPU is installed in the first PCI-E slot: max PSU length 150mm (recommended ≤140mm) • When GPU is installed in the second PCI-E slot: max PSU length 170mm (recommended ≤160mm) • When GPU length ≤288mm: PSU length limited to 200mm (not compatible with 16A plugs)
SFX PSU Support	SFX / SFX-L
CPU Air Cooler Clearance	Up to 164mm (Intel CPU) or 163mm (AMD CPU)
GPU Clearance	Up to 365mm
Weight	N.W. 4.5kg / G.W. 5.5kg
