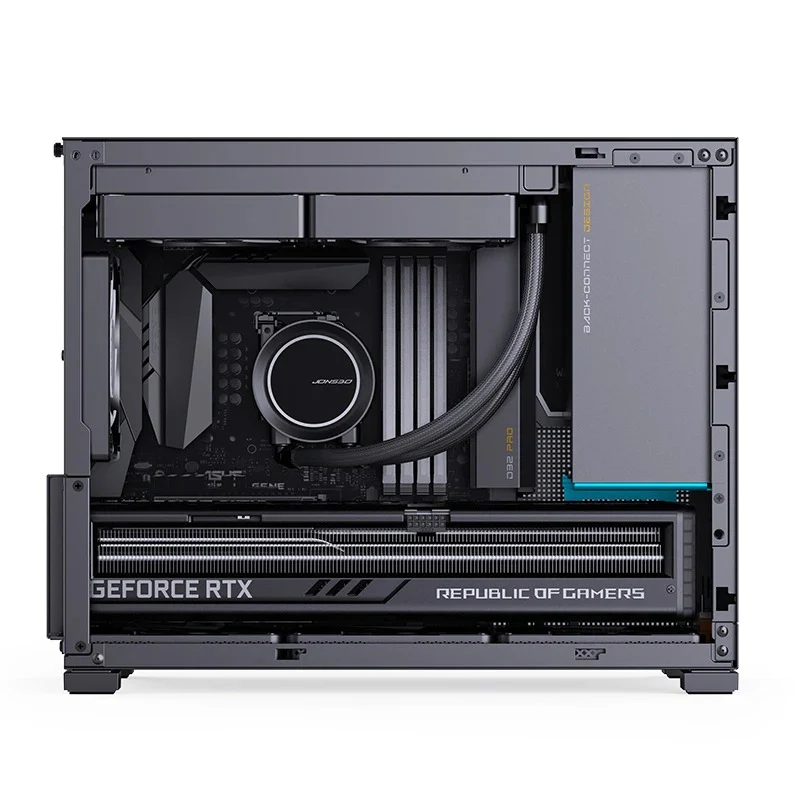

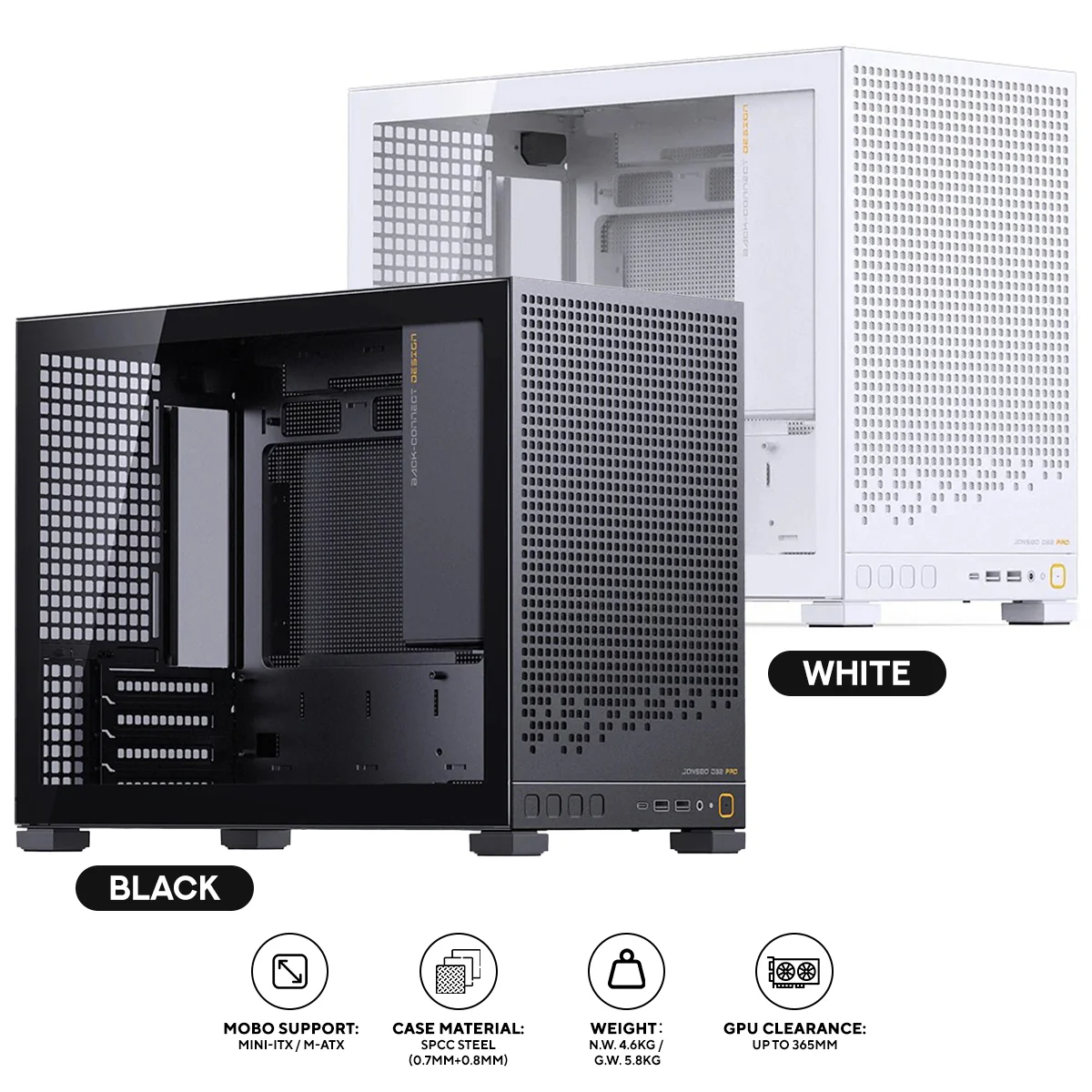

Jonsbo D32 Pro M-ATX Computer Case (Black, White)

• Unmatched Price per Performance - 24L Volume offer A/B mode for MB( Standard MB and BTF MB), Achieve different compatibility optimization solutions,Easier to build your PC,More convenient.
• High Compatibility- Micro ATX case upgrade to support the main popular hardware , such as BTF motherboard, Max.Length 365mm GPU，ATX/SFX-LSFX PSU （16A plug except), 240AIO,163mm Height Air Cooler etc.
• Optimize visual design: Tempered side glass shows the Concise and neat working hardware.(Adjustable motherboard cable management cover to block visible complex wires)

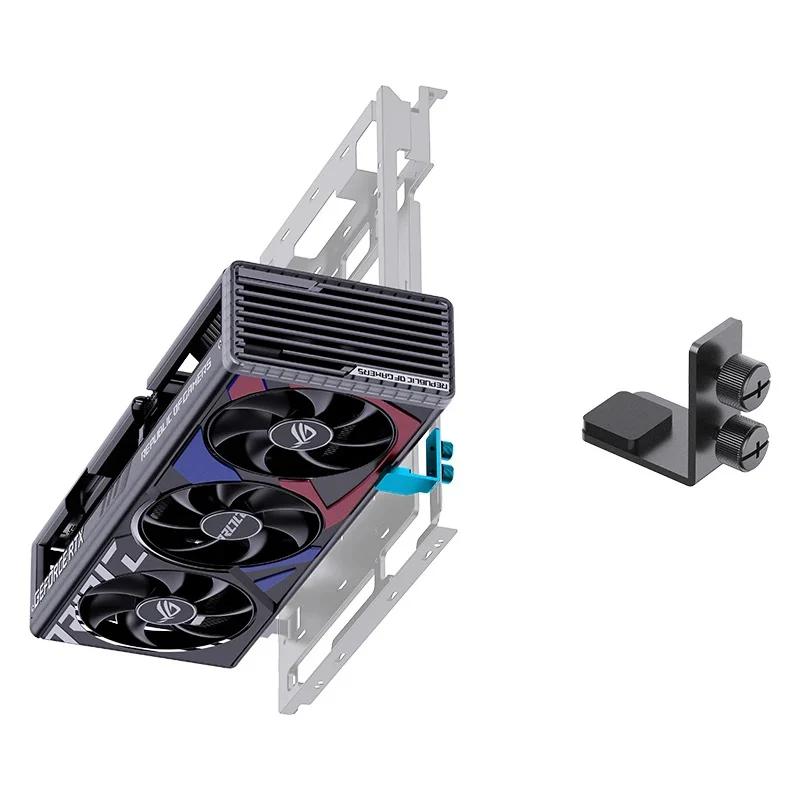

• Optimized installation experience design: detachable PCI-E position unobstructed opening design, easy insertion of large graphics card
• Size：D396×W207×H314mm (Foot included)：
• MB support：MINI-ITX/MICRO-ATX standard /MICRO-ATX (Back-connect, the case needs to be switched to B mode)
• Drive Bay： 2.5": up to 4, depends on other hardware configurations,3.5": up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations (depends on other hardware configurations)
• PSU Clearance：Max.L200mm (not compatible with 16A plugs)



Specifications:

Model	D32 PRO
Color	Black, White
Dimensions (w/o feet and other protrusions)	384mm (D) × 207mm (W) × 302mm (H)
Dimensions (with feet and other protrusions)	396mm (D) × 207mm (W) × 314mm (H)
Case Material	SPCC Steel (0.7mm + 0.8mm)
Motherboard Support	Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, chassis must be switched to B mode)
Drive Bay	2.5": Up to 4 (depends on other hardware configurations) 3.5": Up to 2 (shared with 2 × 2.5" mounts, depends on other hardware configurations)
Front I/O Port	USB3.2 Gen1 Type-A × 2 / USB3.2 Gen2 Type-C × 1 / AUDIO × 1 & MIC × 1

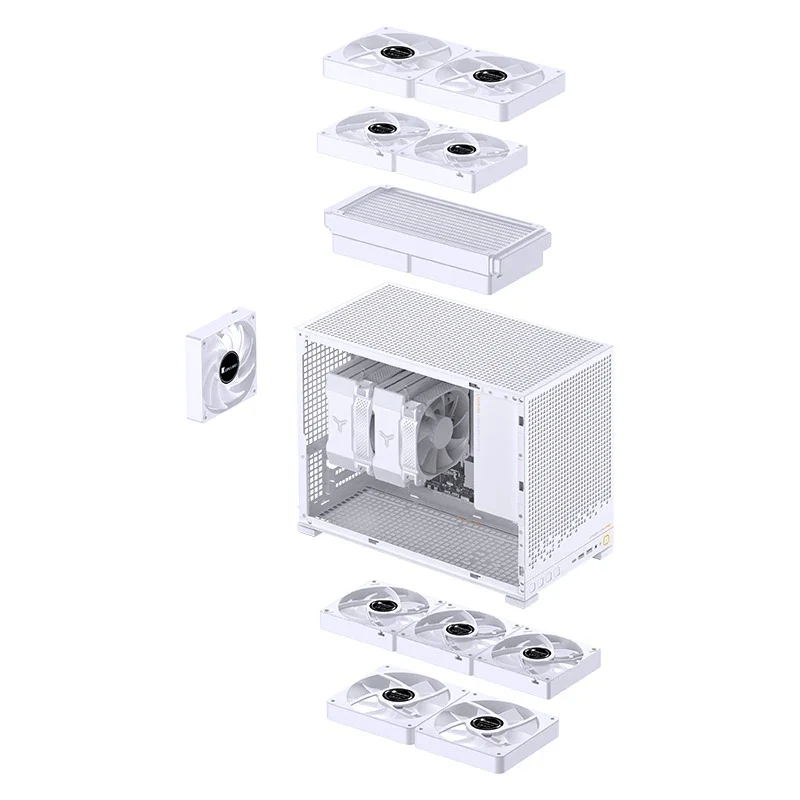

Fan	Top: 2 × 120mm or 2 × 140mm Rear: 1 × 120mm Bottom: 3 × 120mm or 2 × 140mm (depends on other hardware configurations)
Radiator Support	Top, up to 240mm

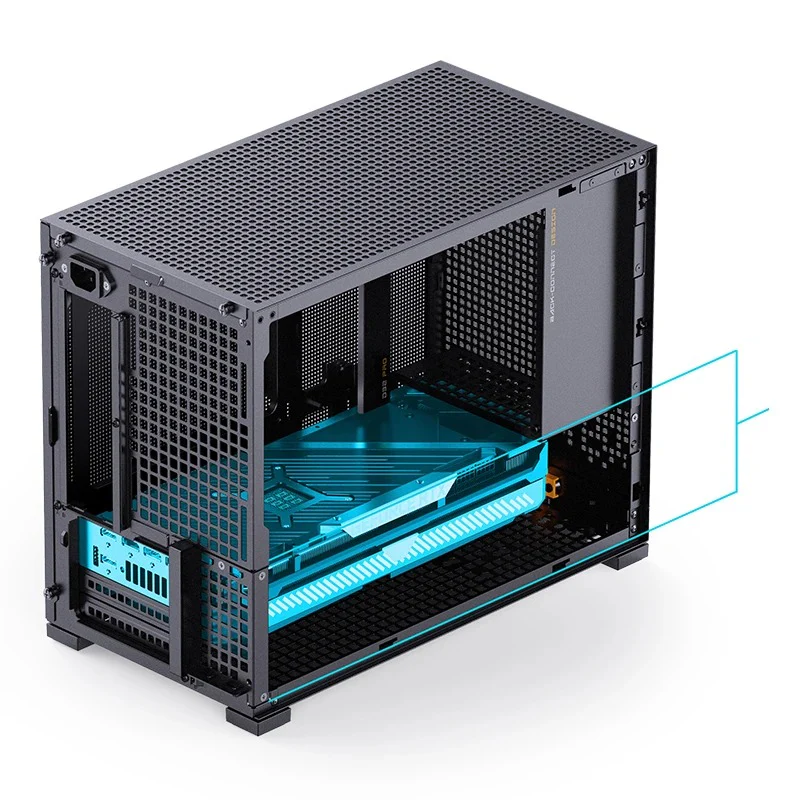

ATX PS2 PSU Clearance	• When GPU is installed in the first PCI-E slot: max PSU length 150mm (recommended ≤140mm) • When GPU is installed in the second PCI-E slot: max PSU length 170mm (recommended ≤160mm) *This mounting position depends on the motherboard — refer to motherboard specifications. • When GPU length ≤288mm and power compartment partition is removed: PSU length limited to 200mm (not compatible with 16A plugs)
SFX PSU Support	SFX / SFX-L
CPU Air Cooler Clearance	A Mode: Up to 170mm (Intel) or 169mm (AMD) B Mode: Up to 164mm (Intel) or 163mm (AMD)
GPU Clearance	Up to 365mm
Weight	N.W. 4.6kg / G.W. 5.8kg
