Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White)
HomeStore

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White)

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White)

Select Computer Case Color
From $21.93

Original: $73.10

-70%
Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White)—

$73.10

$21.93

The Story


Specifications:

Jonsbo D31 Mesh M-ATX Computer Case


Dimension:

Dimension: 205mm (W) * 347.5mm(H) *440mm(D) (Vol: 31.3L)

*Depth does not include the PCI brackets outside the chassis, height does not include case stand
205mm (W) * 363mm(H) * 452mm(D) (overall size)
Material： 0.6mm+0.7mm steel panel
Drive Bay： 2.5〞SSD*2+3.5〞HDD*1
Motherboard： ITX / DTX / M-ATX
PCI expansion slots： 4
Front I/O： USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
Power supply support： ATX
CPU cooler support： 168mm
Graphics card support： 330-400mm
Fan mounting position： Top 120mm*3 or 140mm*2
Rear 120*1mm
 Bottom 120mm*3 or 140mm*2
Front 120mm*1
Radiator support：  Top 240/280/360*1
Rear 120*1
Bottom 240/360*1
Weight:  Net 6.4KG
Jonsbo DS8 8" Display Secondary Screen
Dimension： 24.6mm(W) * 131.7(H) * 205.3(L)
Display size： 8" Color TFT-LCD
Colors： 16.7M
Resolution： 1280*800
Response Time： 30ms(Typ.)
Brightness： 300cd/m2(Typ.)
Contrast Ratio： 1000（Typ.）
I/O： MINI-HDMI*1(Video Signal)   Type-C*1
Refresh Rate(max.)： 60Hz
Working Temperture： 0-50℃






















Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 15

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 16

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 17

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 18

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 19

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 20

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

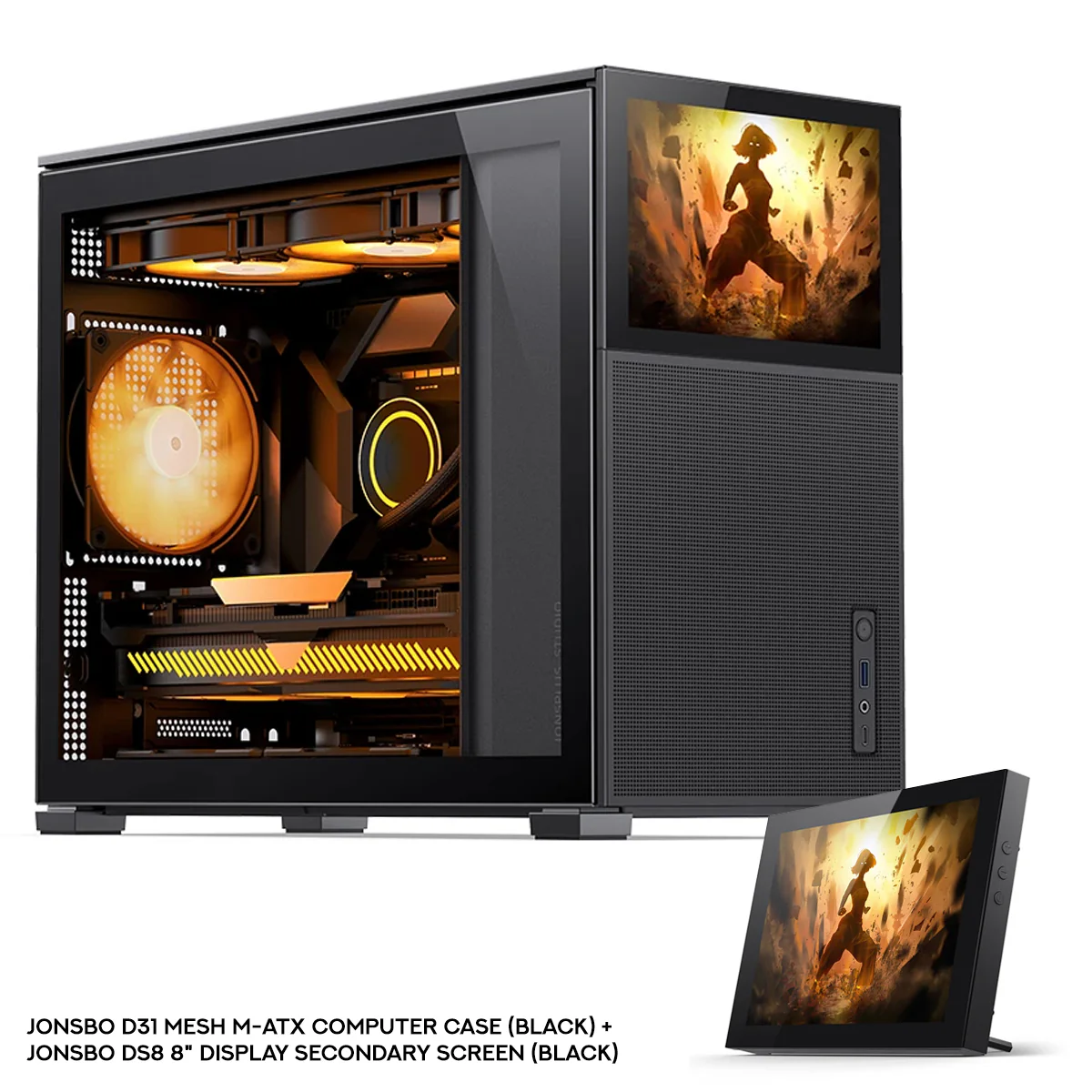

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 21

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 22

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Jonsbo D31 Mesh M-ATX Computer Case (Black, White) + Jonsbo DS8 8" Display Secondary Screen (Black, White) - Image 23

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description


Specifications:

Jonsbo D31 Mesh M-ATX Computer Case


Dimension:

Dimension: 205mm (W) * 347.5mm(H) *440mm(D) (Vol: 31.3L)

*Depth does not include the PCI brackets outside the chassis, height does not include case stand
205mm (W) * 363mm(H) * 452mm(D) (overall size)
Material： 0.6mm+0.7mm steel panel
Drive Bay： 2.5〞SSD*2+3.5〞HDD*1
Motherboard： ITX / DTX / M-ATX
PCI expansion slots： 4
Front I/O： USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
Power supply support： ATX
CPU cooler support： 168mm
Graphics card support： 330-400mm
Fan mounting position： Top 120mm*3 or 140mm*2
Rear 120*1mm
 Bottom 120mm*3 or 140mm*2
Front 120mm*1
Radiator support：  Top 240/280/360*1
Rear 120*1
Bottom 240/360*1
Weight:  Net 6.4KG
Jonsbo DS8 8" Display Secondary Screen
Dimension： 24.6mm(W) * 131.7(H) * 205.3(L)
Display size： 8" Color TFT-LCD
Colors： 16.7M
Resolution： 1280*800
Response Time： 30ms(Typ.)
Brightness： 300cd/m2(Typ.)
Contrast Ratio： 1000（Typ.）
I/O： MINI-HDMI*1(Video Signal)   Type-C*1
Refresh Rate(max.)： 60Hz
Working Temperture： 0-50℃
