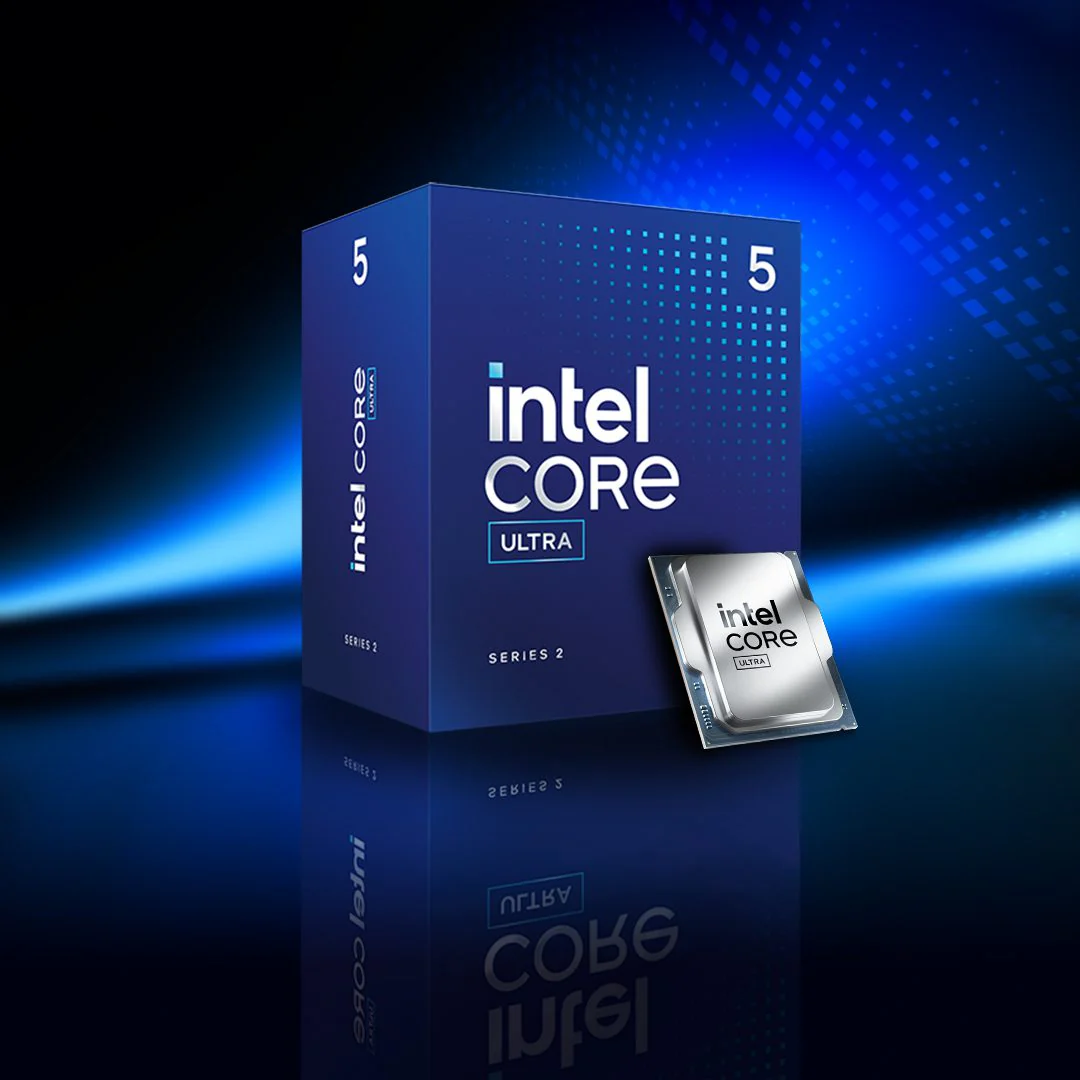

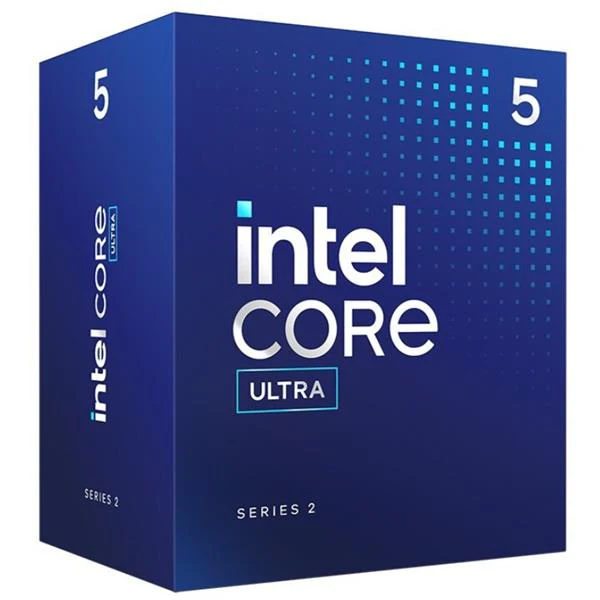

Intel Core Ultra 5 225F Processor

INTEL CORE ULTRA 5 225F CPU PRODUCT OVERVIEW

Core Ultra 5 225F is a popular processor in the Core Ultra Series 2 line. Core Ultra 5 225F is designed based on Arrow Lake architecture , providing relatively strong performance and high energy efficiency, suitable for content creation and multitasking. Core Ultra 5 225F is suitable for building PCs, multitasking office computers that operate multiple tasks in parallel. In addition, Ultra 5 225F also responds well to graphics work, or mid-range gaming.

• Product: CPU Intel Core Ultra 5 225F
• Brand: Intel
• Model: Core Ultra 5 225F
• Socket: LGA 1851
• Cores/Threads: 10/10
• Clock: 4.9 GHz
• L2 Cache: 22 Mb
• L3 Cache: 20 MB
• Power consumption (Max): 121W

SPECIFICATION

Essentials
Product Collection	Intel® Core™ Ultra Processors
Vertical Segment	Desktop
Processor Number	225F
CPU Specifications
Total Cores	10
# of Performance-cores	6
# of Efficient-cores	4
Total Threads	10
Max Turbo Frequency	4.9 GHz
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core Base Frequency	3.3 GHz
Efficient-core Base Frequency	2.7 GHz
Cache	20 MB Intel® Smart Cache
Total L2 Cache	22 MB
Processor Base Power	65 W
Maximum Turbo Power	121 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
AI Software Frameworks Supported by CPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography	TSMC N3B
Supplemental Information
Marketing Status	Launched
Launch Date	Q1'25
Embedded Options Available	No
Use Conditions	PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type)	192 GB
Memory Types	Up to DDR5 6400 MT/s
Max # of Memory Channels	2
NPU Specifications
NPU Name‡	Intel® AI Boost
NPU Peak TOPS (Int8)	13
Sparsity Support	Yes
Windows Studio Effects Support	Yes
AI Software Frameworks Supported by NPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision	4
Max # of DMI Lanes	8
Intel® Thunderbolt™ 4	Yes
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations ‡	Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max # of PCI Express Lanes	24
Package Specifications
Sockets Supported	FCLGA1851
Thermal Solution Specification	PCG 2022C
Max Operating Temperature	105 °C
Advanced Technologies
Intel® Volume Management Device (VMD)	Yes
Intel® Gaussian & Neural Accelerator	3.5
Intel® Thread Director	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology ‡	2
Intel® 64 ‡	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® Trusted Execution Technology ‡	Yes
Execute Disable Bit ‡	Yes
Intel® OS Guard	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® VT-x with Extended Page Tables (EPT) ‡	Yes
