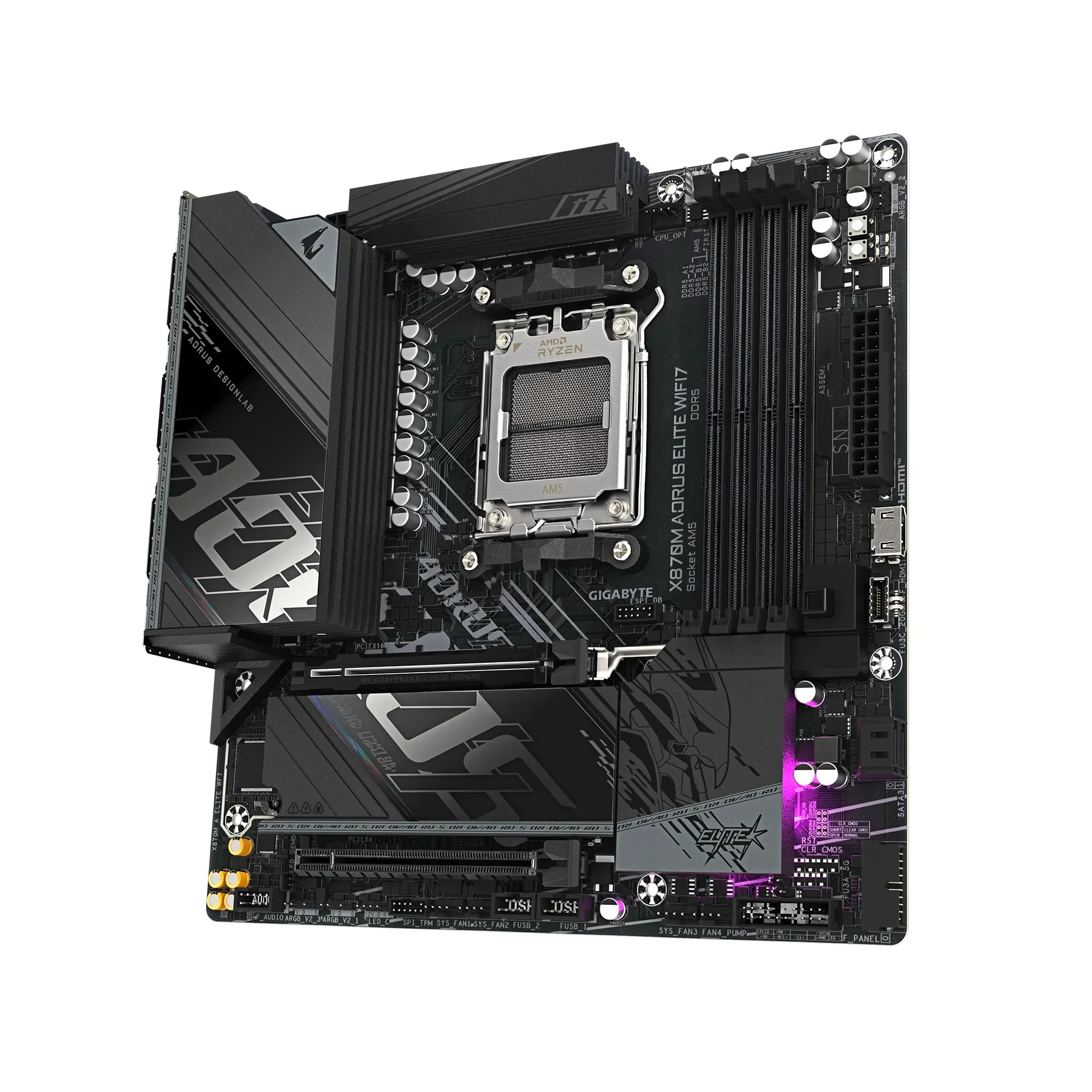

Gigabyte X870M Aorus Elite WiFi7 DDR5 AMD Gaming Motherboard

Gigabyte X870M Aorus Elite WiFi7 DDR5 AMD Gaming Motherboard

• X3D Turbo Mode：Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
• D5 Bionic Corsa for Infinite Memory Performance
• EZ-Latch：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• Friendly UI：Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
• Ultra-Fast Storage：2*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
• Fast Networking：2.5GbE LAN & Wi-Fi 7
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
• PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card



Specification:

CPU	AMD Socket AM5, support for: Ryzen 9000 / 8000 / 7000 Series Processors
Chipset	AMD X870
Memory	DDR5 8200(O.C) to 4400 MT/s supported 4 x DDR5 DIMM sockets, up to 256 GB Dual channel architecture Supports AMD EXPO™ and XMP profiles
Onboard Graphics	Integrated AMD Radeon™ Graphics 2 x USB4 Type-C (3840x2160@240Hz) 1 x HDMI (4096x2160@60Hz) 1 x front HDMI (1920x1080@30Hz)
Audio	Realtek ALC1220 CODEC, DSD Audio 7.1-channel HD Audio S/PDIF Out supported
LAN	Realtek 2.5GbE LAN
Wireless	Realtek Wi-Fi 7 RTL8922AE Bluetooth 5.4 Supports 2.4/5/6 GHz bands *Requires Windows 11 SV3
Expansion Slots	1 x PCIe x16 (CPU): - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000 Phoenix 1: PCIe 4.0 x8 - Phoenix 2: PCIe 4.0 x4 1 x PCIe x4 (Chipset): PCIe 4.0 x4
Storage Interface	1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 1 x M.2 (M2C_SB): PCIe 4.0 x2 2 x SATA 6Gb/s RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA) *RAID 5 only on Ryzen 9000
USB	Rear: - 2 x USB4 Type-C - 1 x USB 3.2 Gen 2 Type-A (red) - 4 x USB 2.0 - 4 x USB 3.2 Gen 1 Internal: - 1 x USB 3.2 Gen 2x2 Type-C - 1 x USB 3.2 Gen 2 Type-A - 2 x USB 3.2 Gen 1 - 4 x USB 2.0
Internal I/O	1 x 24-pin ATX 1 x 8-pin ATX 12V 1 x CPU fan / 1 x pump header 3 x system fan / 1 x pump header 3 x ARGB Gen2 / 1 x RGB header 2 x M.2 Socket 3 2 x SATA 6Gb/s Front panel, audio, TPM, HDMI headers USB 3.2 Gen 2x2, USB 3.2 Gen 1, USB 2.0

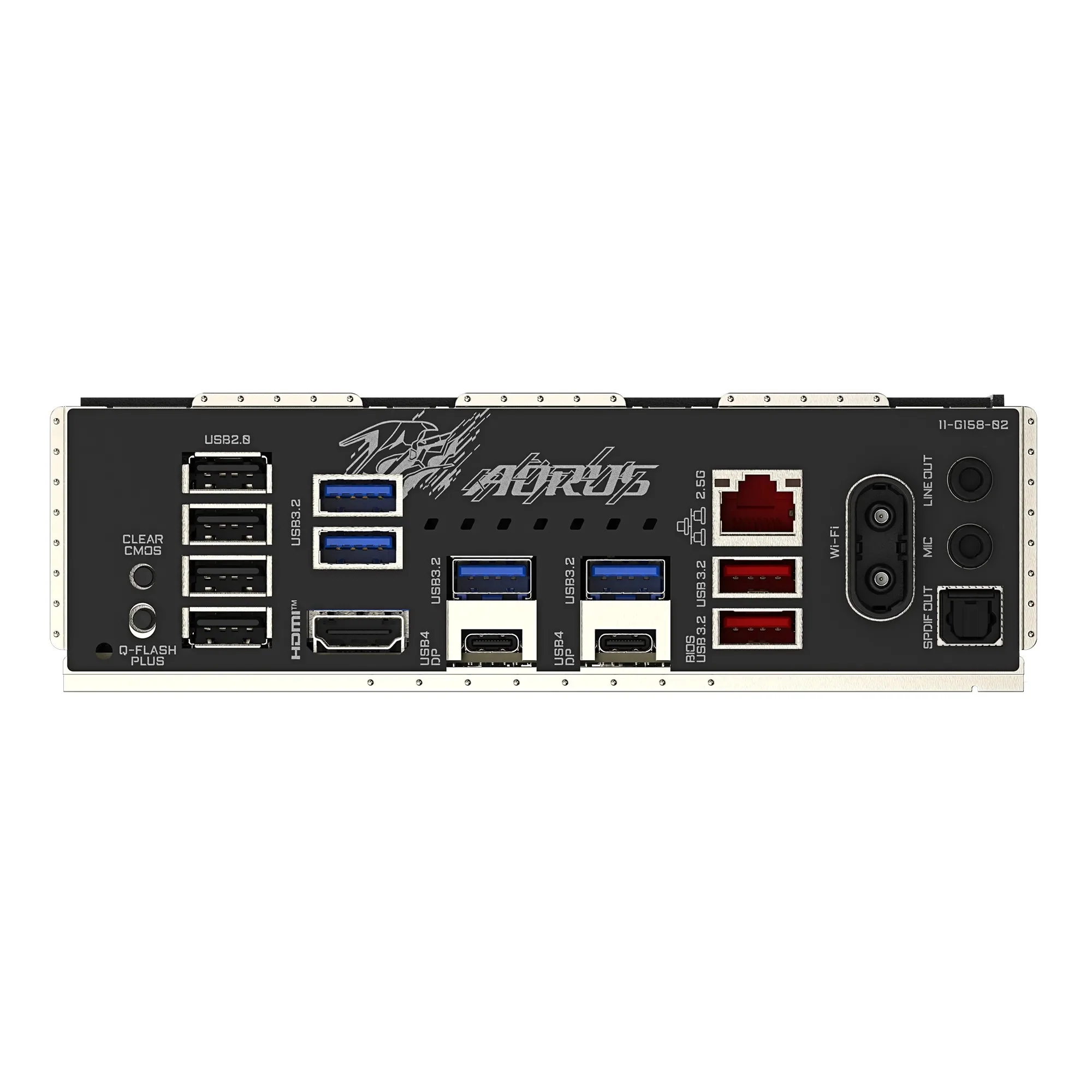

Back Panel I/O	1 x Clear CMOS / Q-Flash Plus button 1 x HDMI 4 x USB 2.0 / 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 Type-A (red) 2 x USB4 Type-C (DisplayPort capable) 1 x RJ-45 2 x antenna connectors 2 x audio jacks + Optical S/PDIF Out
Monitoring	Voltage / Temp / Fan / Water flow Fan fail warning / Fan control
BIOS	256 Mbit AMI UEFI BIOS Supports PnP, DMI 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center Q-Flash / Q-Flash Plus Smart Backup
Software	Norton Internet Security (OEM)
OS Support	Windows 11 64-bit
Form Factor	Micro ATX (24.4 x 24.4 cm)
