Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply

Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply

Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply

$54.40

Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply—

$54.40

The Story

Specification	Details
Model	GP-P650G PG5
Type	Intel Form Factor ATX 12V v3.1
PFC	Active PFC (>0.9 typical)
Input Voltage	100–240 Vac
Input Current	10–6A
Input Frequency	50–60 Hz
Output Capacity	650W
Efficiency Certification	80 PLUS Gold
Efficiency	90% at typical load
Fan Type	120mm HYB Fan
Dimensions (L×W×H)	150 × 140 × 86 mm
MTBF	>100,000 hours
Protections	OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal	100–150 ms
Hold Up Time	>17 ms
Cable Type	Embossed, all black
Connectors	ATX/MB 20+4 Pin: 1 × 600 mm CPU/EPS 4+4 Pin: 1 × (600 mm + 150 mm) PCI-e 16 Pin: 1 × 500 mm PCI-e 6+2 Pin: 2 × (500 mm + 150 mm) SATA: 6 × (420 mm + 150 mm + 150 mm ×2) 4 Pin Peripheral: 3 × (420 mm + 150 mm + 150 mm ×1)

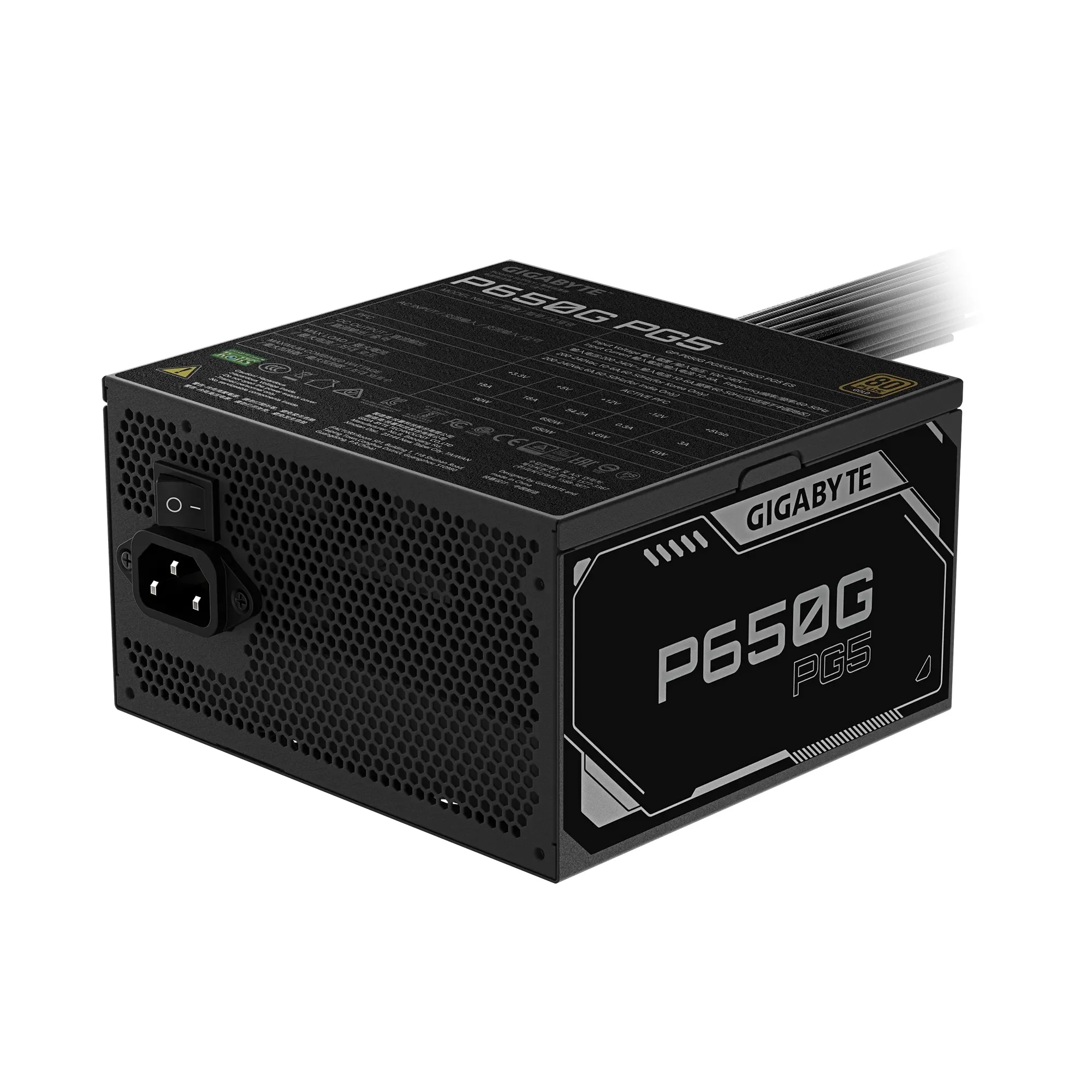

Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Gigabyte P650G PG5 650W 80+ Gold PCIe Gen 5.1 ATX 3.1 Power Supply - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Specification	Details
Model	GP-P650G PG5
Type	Intel Form Factor ATX 12V v3.1
PFC	Active PFC (>0.9 typical)
Input Voltage	100–240 Vac
Input Current	10–6A
Input Frequency	50–60 Hz
Output Capacity	650W
Efficiency Certification	80 PLUS Gold
Efficiency	90% at typical load
Fan Type	120mm HYB Fan
Dimensions (L×W×H)	150 × 140 × 86 mm
MTBF	>100,000 hours
Protections	OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal	100–150 ms
Hold Up Time	>17 ms
Cable Type	Embossed, all black
Connectors	ATX/MB 20+4 Pin: 1 × 600 mm CPU/EPS 4+4 Pin: 1 × (600 mm + 150 mm) PCI-e 16 Pin: 1 × 500 mm PCI-e 6+2 Pin: 2 × (500 mm + 150 mm) SATA: 6 × (420 mm + 150 mm + 150 mm ×2) 4 Pin Peripheral: 3 × (420 mm + 150 mm + 150 mm ×1)
