Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboard
HomeStore

Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboard

Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboard

$109.78
Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboardā€”
$109.78

The Story

Ā

Specifications:

CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation IntelĀ® Coreā„¢, PentiumĀ® Gold and CeleronĀ® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset IntelĀ® B760 Express Chipset
Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-IntelĀ® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3. Support for up to triple-display at the same time
Audio RealtekĀ® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
LAN RealtekĀ® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module RealtekĀ® Wi-Fi RTL8821CE - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard
Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset: - 1 x USB Type-CĀ® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 2 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
Back Panel Connectors 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 2 x antenna connectors (1T1R); 1 x D-Sub port; 1 x HDMI port; 1 x DisplayPort; 3 x USB 3.2 Gen 1 ports; 1 x USB Type-CĀ® port, with USB 3.2 Gen 1 support; 1 x RJ-45 port; 3 x audio jacks
I/O Controller iTEĀ® I/O Controller Chip
H/W Monitoring Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control
BIOS 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Bundled Software NortonĀ® Internet Security (OEM version)
Operating System Support for Windows 11 64-bit; Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboard - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboard - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

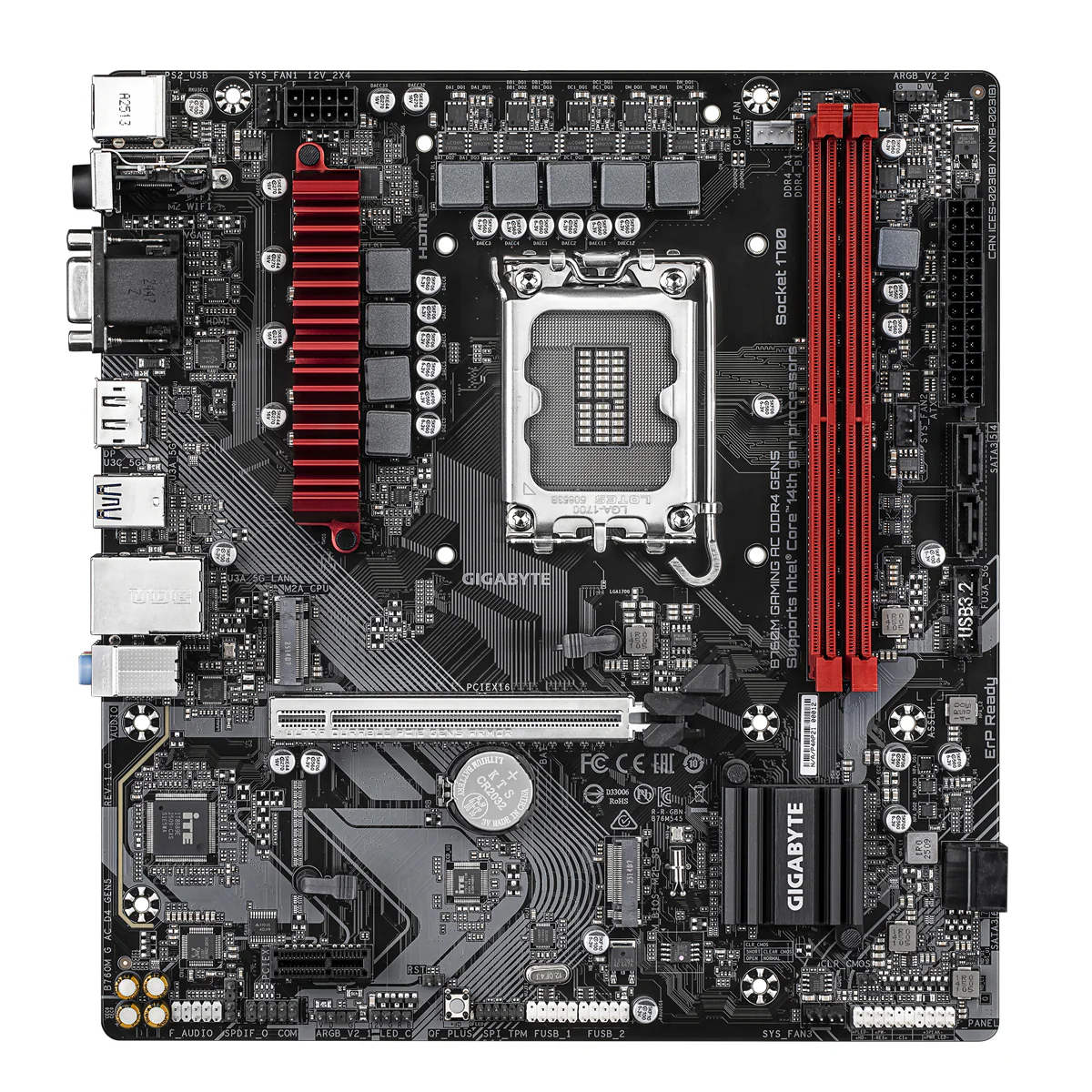

Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboard - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboard - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Gigabyte B760M Gaming AC DDR4 Gen5 Intel Motherboard - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Ā

Specifications:

CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation IntelĀ® Coreā„¢, PentiumĀ® Gold and CeleronĀ® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset IntelĀ® B760 Express Chipset
Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-IntelĀ® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3. Support for up to triple-display at the same time
Audio RealtekĀ® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
LAN RealtekĀ® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module RealtekĀ® Wi-Fi RTL8821CE - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard
Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset: - 1 x USB Type-CĀ® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 2 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
Back Panel Connectors 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 2 x antenna connectors (1T1R); 1 x D-Sub port; 1 x HDMI port; 1 x DisplayPort; 3 x USB 3.2 Gen 1 ports; 1 x USB Type-CĀ® port, with USB 3.2 Gen 1 support; 1 x RJ-45 port; 3 x audio jacks
I/O Controller iTEĀ® I/O Controller Chip
H/W Monitoring Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control
BIOS 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Bundled Software NortonĀ® Internet Security (OEM version)
Operating System Support for Windows 11 64-bit; Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
