Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P)
HomeStore

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P)

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P)

$11.20

Original: $37.32

-70%
Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P)—

$37.32

$11.20

The Story

Prisma AL-12

Our Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

  • Six individually addressable hub-mounted RGB LEDs
  • Specially designed fan blades and outer ring
  • Long Life Sleeve-bearings provide silent operation with a long lifespan

Specification:

General Specifications
  • Size
    120 x 120 x 25 mm
  • Screw hole pattern
    105 x 105 mm
  • Fan connector
    3-pin
  • RGB connector
    3-pin 5V addressable RGB
  • Bearing
    LLS
  • Number of blades
    7
  • Rotational speed
    1200 RPM
  • Noise level
    19.5 dB(A)
  • Airflow (CFM)
    50.63 CFM
  • Airflow (m3/h)
    86.02 m3/h
  • Static pressure
    1.27 mmH2O
  • Fan input power
    1.2 W
  • Fan max input current
    0.10 A
  • Fan input voltage
    12 V
  • Fan starting voltage
    7 V
  • LED input power
    1.50 W
  • LED max input current
    0.30 A
  • LED input voltage
    5V
  • MTBF
    100,000 hours
  • Fan weight
    167 g
  • Cable length
    500 mm
  • Cable type
    Black sleeved

Other
  • Package contents
    Prisma AL-12 120 mm fan, 4x fan screws / 3x Prisma AL-12 120 mm fan, 12x fan screws (3-pack)
  • Package weight
    210 g / 590 g (3-pack)
  • Package dimensions (Including hanging tab)
    182 x 122 x 30 mm / 202 x 122 x 80 mm (3-pack)
  • Package dimensions (Excluding hanging tab)
    147 x 122 x 30 mm / 157 x 122 x 80 mm (3-pack)
Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

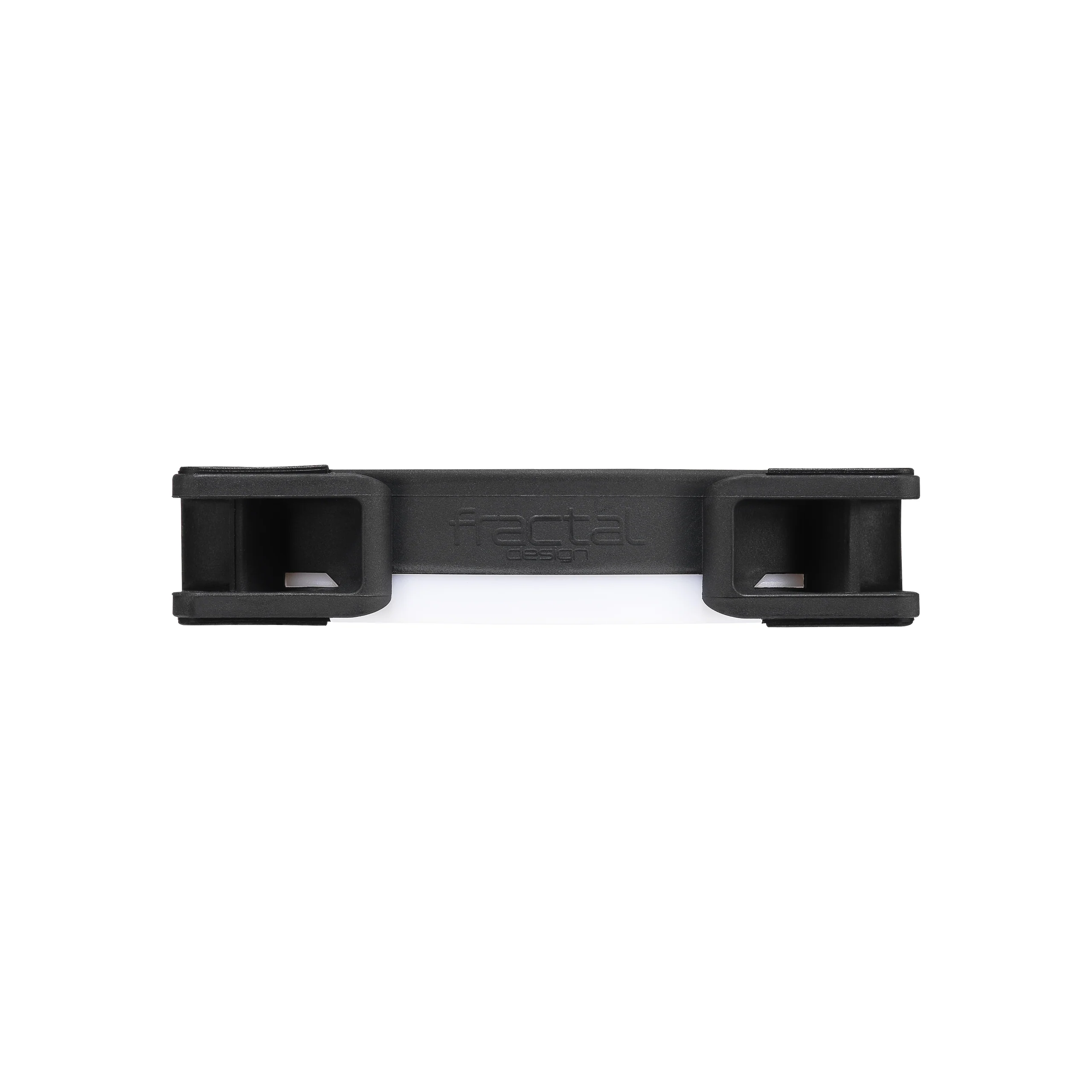

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

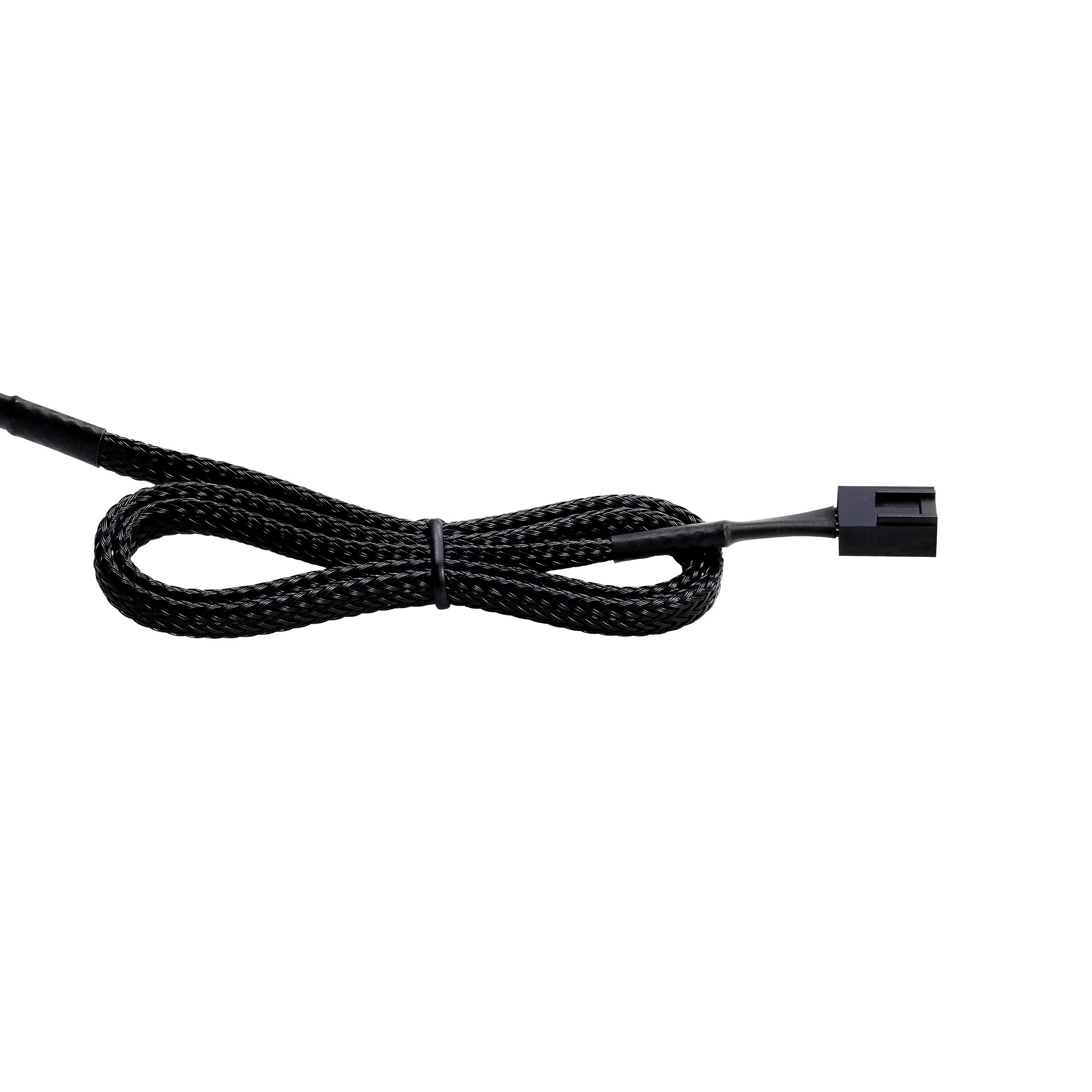

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

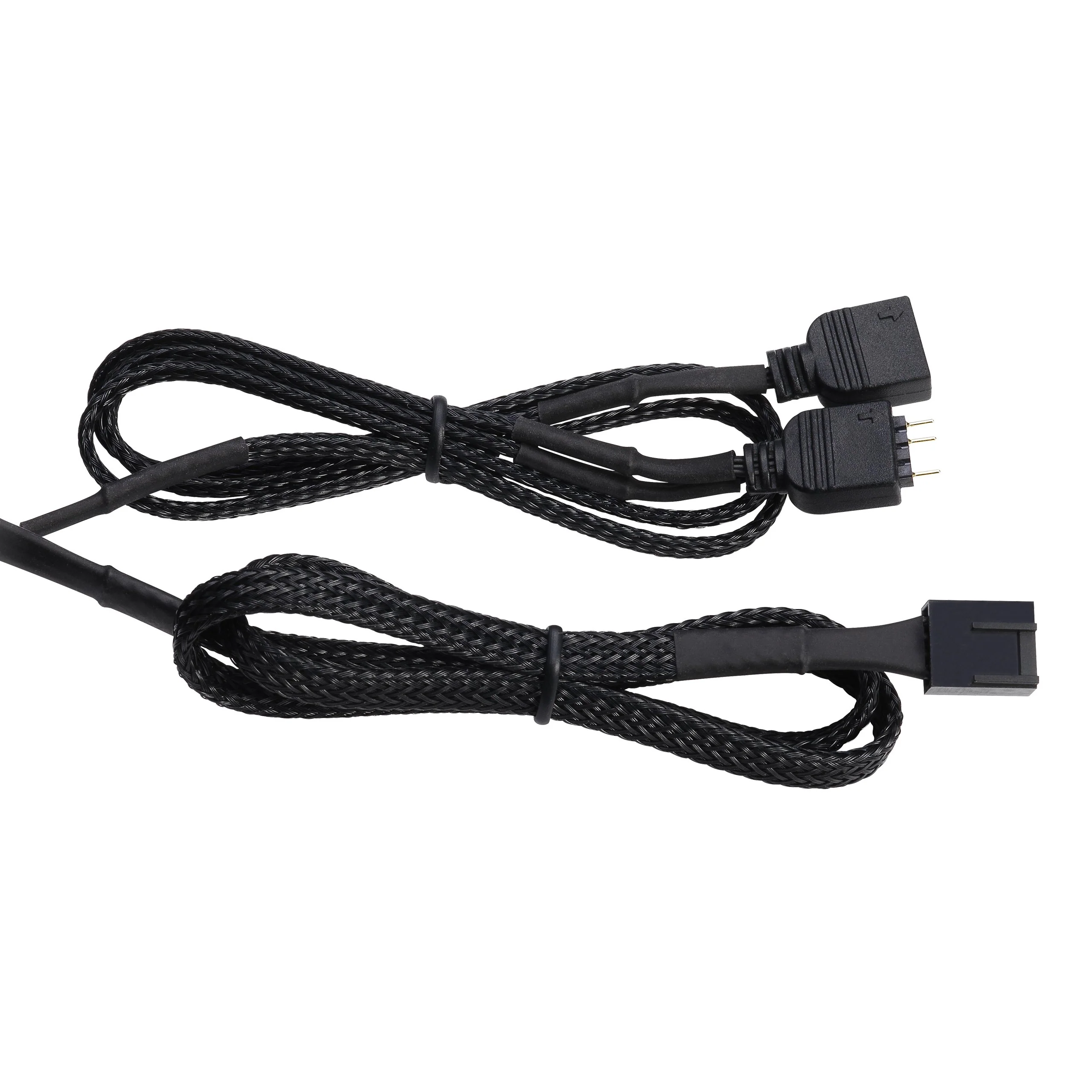

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 15

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 16

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

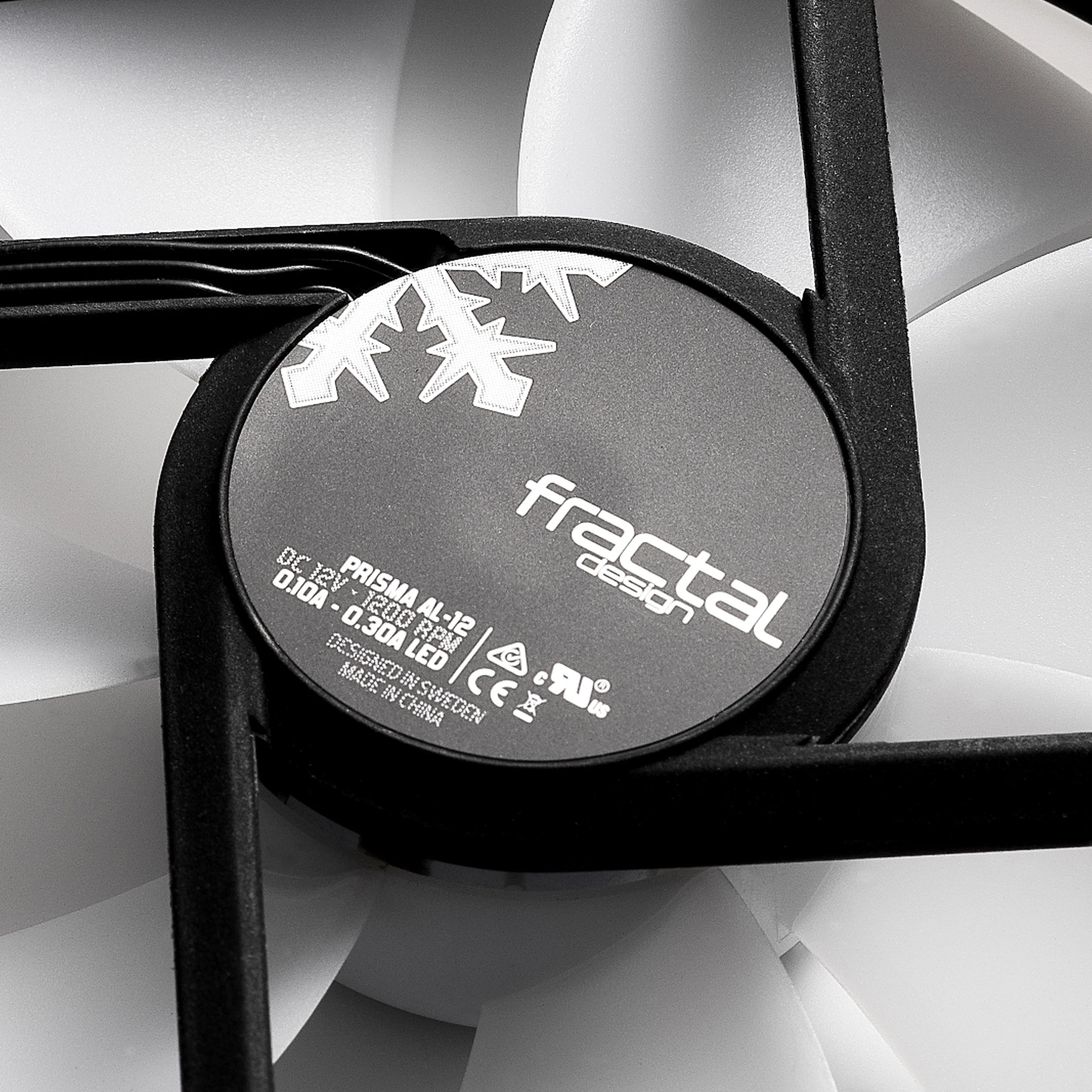

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 17

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

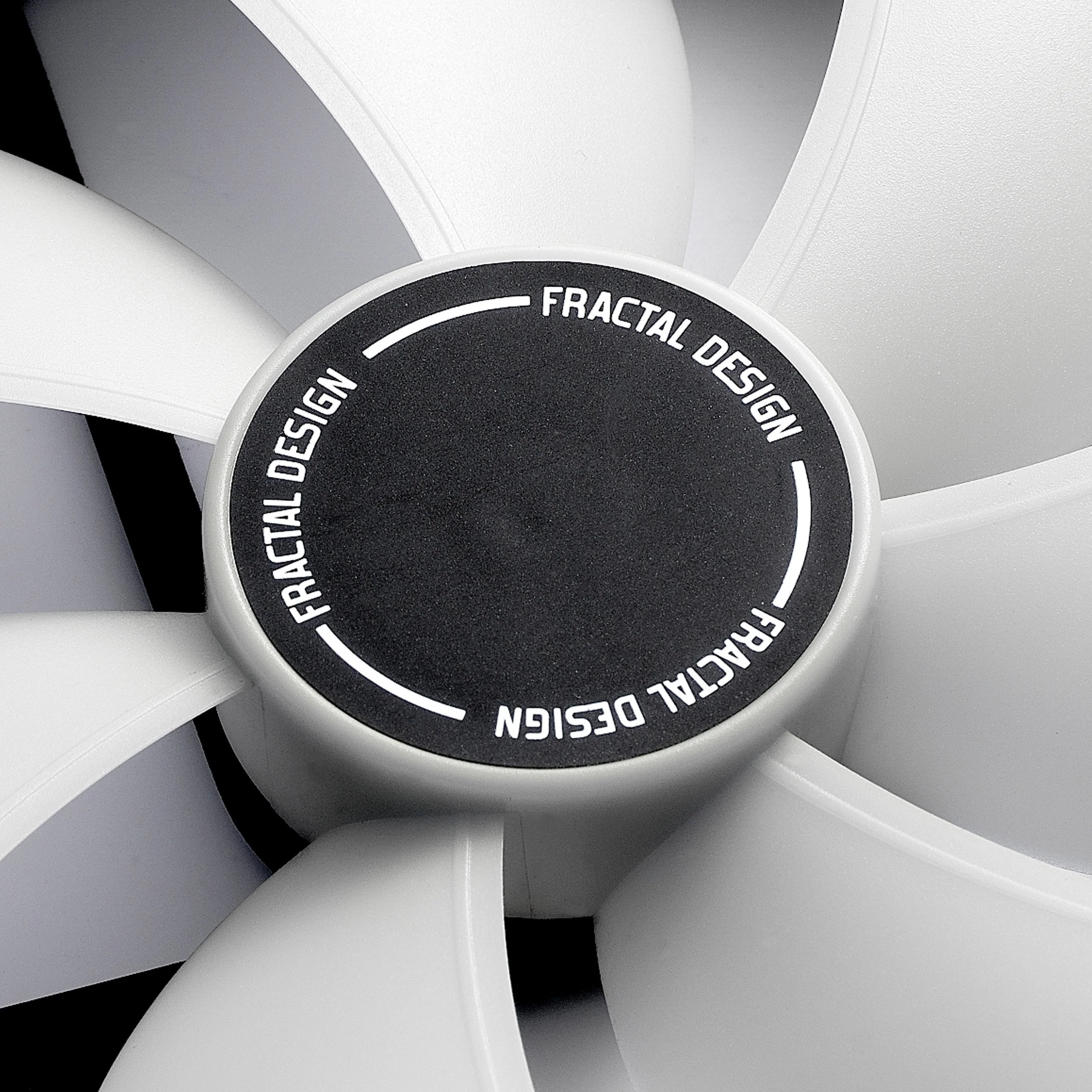

Fractal Design Prisma AL-12 ARGB Computer Fan (3-Pack) (FD-FAN-PRI-AL12-3P) - Image 18

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Prisma AL-12

Our Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

  • Six individually addressable hub-mounted RGB LEDs
  • Specially designed fan blades and outer ring
  • Long Life Sleeve-bearings provide silent operation with a long lifespan

Specification:

General Specifications
  • Size
    120 x 120 x 25 mm
  • Screw hole pattern
    105 x 105 mm
  • Fan connector
    3-pin
  • RGB connector
    3-pin 5V addressable RGB
  • Bearing
    LLS
  • Number of blades
    7
  • Rotational speed
    1200 RPM
  • Noise level
    19.5 dB(A)
  • Airflow (CFM)
    50.63 CFM
  • Airflow (m3/h)
    86.02 m3/h
  • Static pressure
    1.27 mmH2O
  • Fan input power
    1.2 W
  • Fan max input current
    0.10 A
  • Fan input voltage
    12 V
  • Fan starting voltage
    7 V
  • LED input power
    1.50 W
  • LED max input current
    0.30 A
  • LED input voltage
    5V
  • MTBF
    100,000 hours
  • Fan weight
    167 g
  • Cable length
    500 mm
  • Cable type
    Black sleeved

Other
  • Package contents
    Prisma AL-12 120 mm fan, 4x fan screws / 3x Prisma AL-12 120 mm fan, 12x fan screws (3-pack)
  • Package weight
    210 g / 590 g (3-pack)
  • Package dimensions (Including hanging tab)
    182 x 122 x 30 mm / 202 x 122 x 80 mm (3-pack)
  • Package dimensions (Excluding hanging tab)
    147 x 122 x 30 mm / 157 x 122 x 80 mm (3-pack)
