The Story

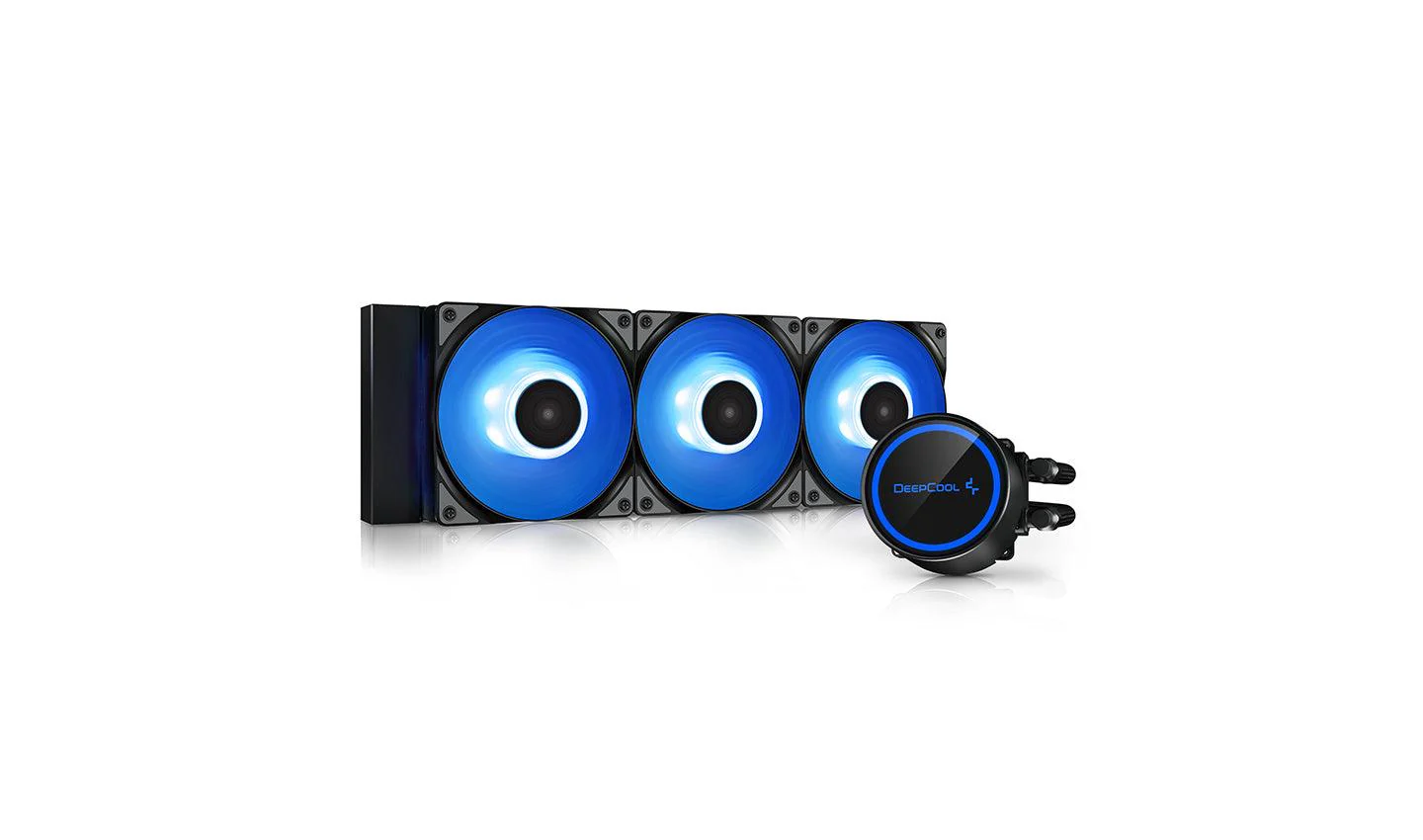

GAMMAXX L360 A-RGB
In keeping safety first, GAMMAXX L360 A-RGB is equipped with DeepCool’s new standard for liquid cooling systems—Anti-Leak Technology.This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage risk.
EFFICIENT COOLING
The E-shaped micro water channel design effectively enhances heat transfer efficiency and circulation throughout the radiator.
ULTRA COMPATIBILITY
The large copper base provides more contact with CPU and supports mainstream Intel & AMD socket types.

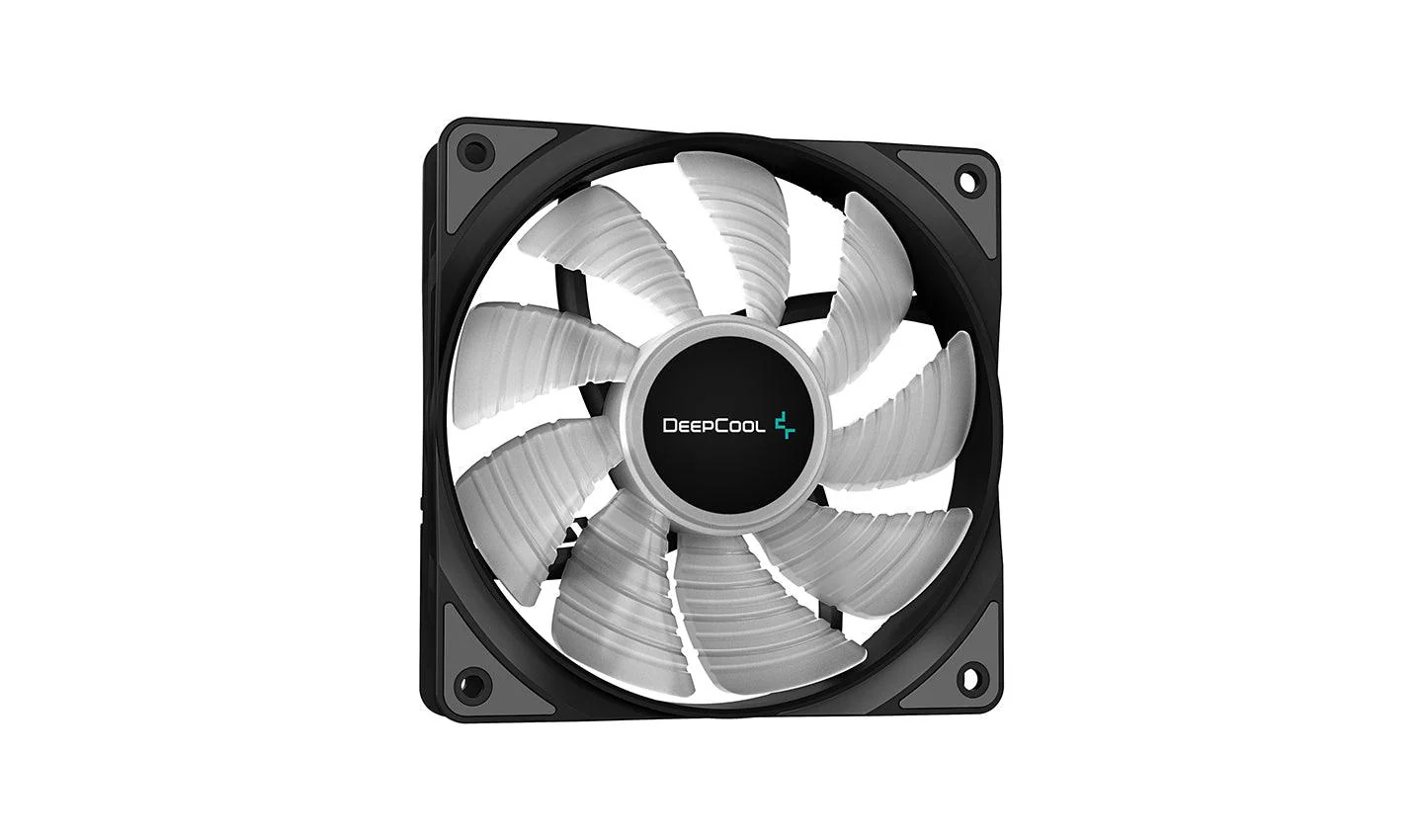

A-RGB & PWM FANS
Three A-RGB fans are included with exceptional performance and minimum noise level. The fans come with noise damping pads and support PWM control; its A-RGB lighting can also be synchronized with the waterblock
CHOOSE YOUR STYLE
5V A-RGB lighting is embedded on the waterblock. Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.
Specifications :
| Net Weight | 1696 g |
| Radiator Dimensions | 402×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 465 mm |
| Pump Dimensions | 91×79×47 mm |
| Pump Speed | 2550 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.21 A |
| Pump Power Consumption | 2.52 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500-1800 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤30 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.17 A |
| Fan Power Consumption | 2.04 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W（PUMP）/ 6.6 W（FAN×3） |
| P/N | DP-H12CF-GL360-ARGB |
