TUF GAMING
B760M-BTF WIFI

Name: Asus TUF Gaming B760M-BTF Wifi Motherboard
Brand: DataBlitz
SKU: asus-tuf-gaming-b760m-btf-wifi-motherboard
Availability: InStock

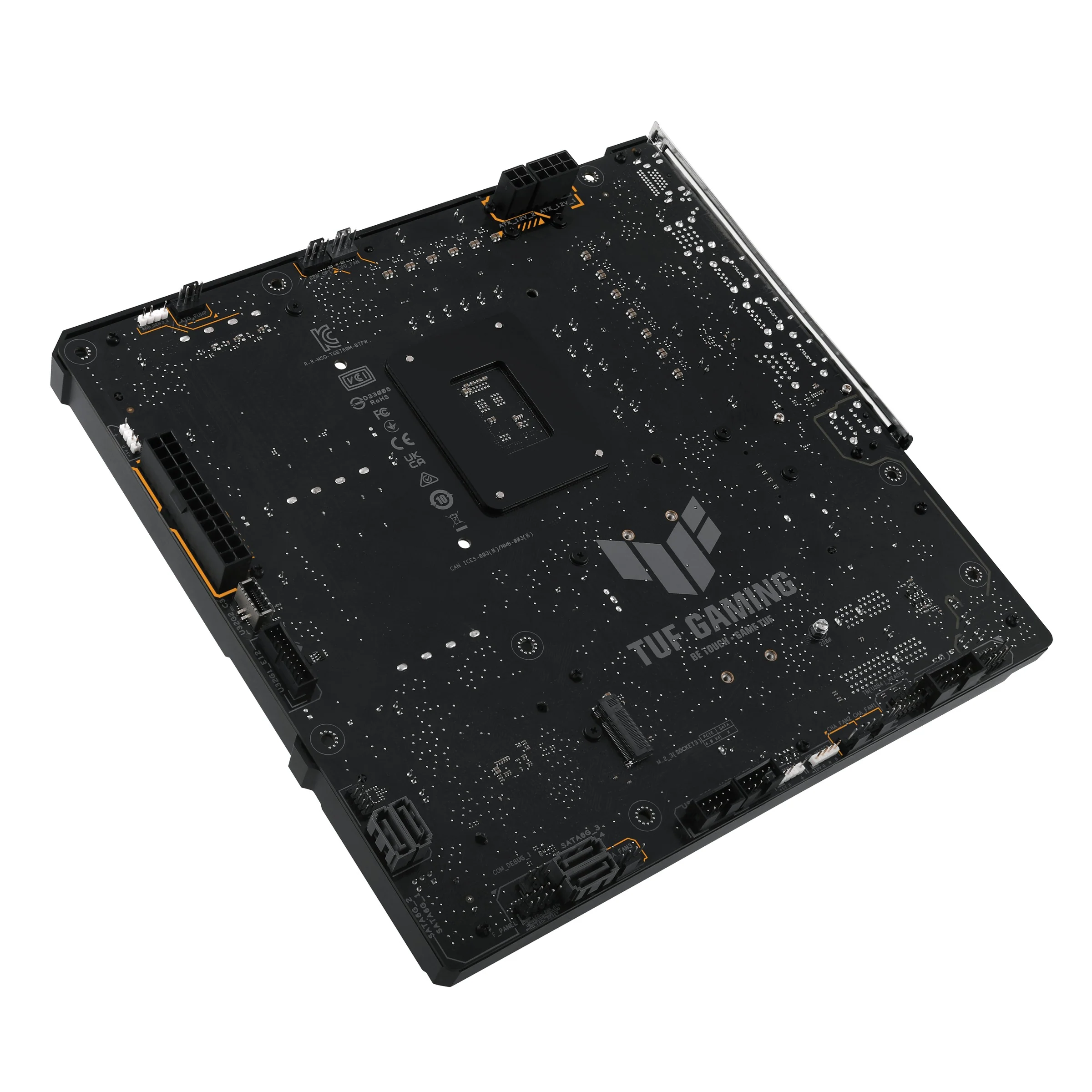

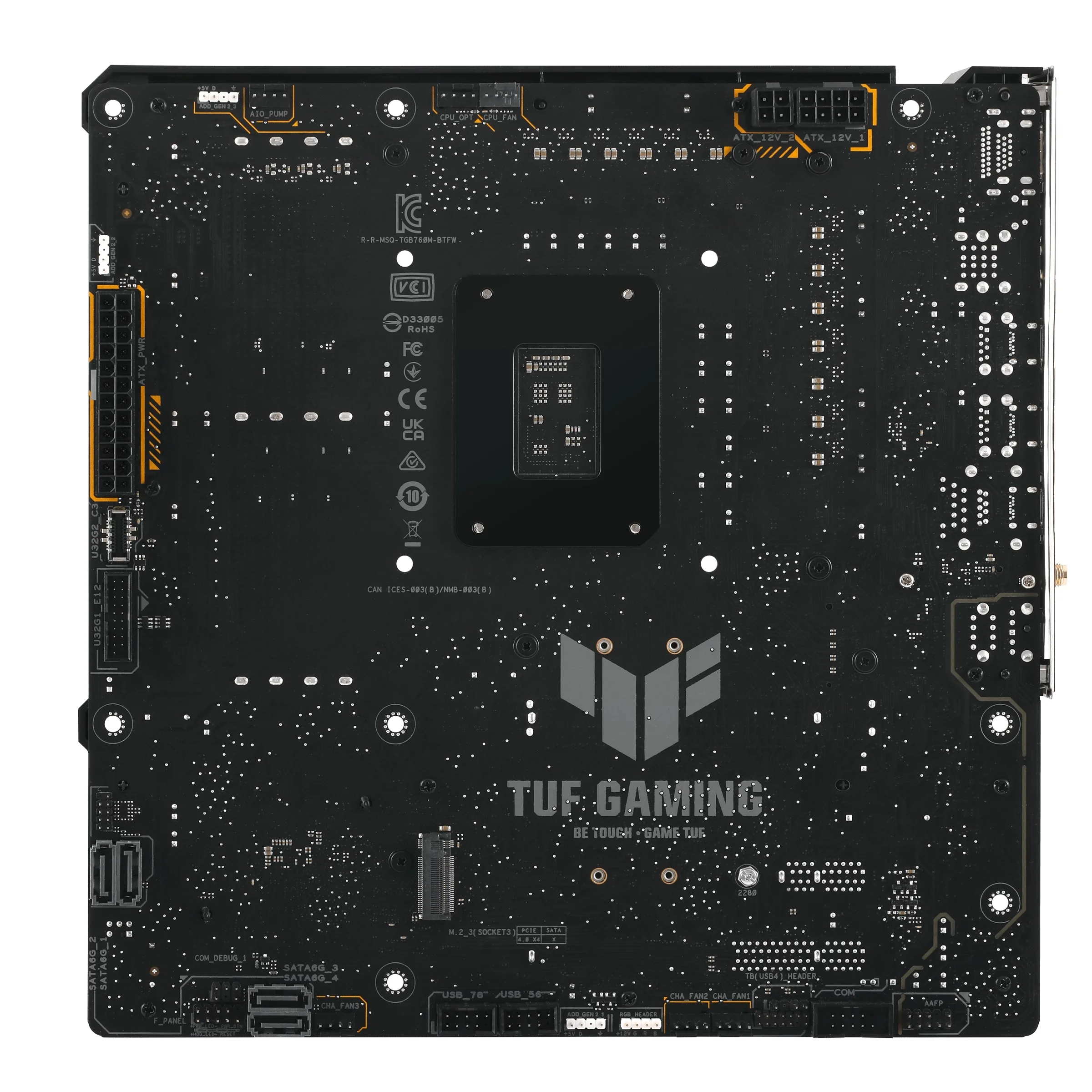

The TUF GAMING B760M-BTF WIFI takes all the essential elements of the latest Intel^® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the BTF series hides its connectors on the underside of the motherboard for clean cable management and a minimalist build appearance.
This motherboard is engineered with military-grade components, an upgraded power solution and a comprehensive cooling system so that it can go beyond expectations with rock-solid performance and marathon gaming.

SPECIFICATION

Model	TUF GAMING B760M-BTF WIFI
CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
CPU	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset	Intel B760 Chipset
Memory	4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP)
	OptiMem II
Graphics	1 x DisplayPort
Graphics	1 x HDMITM port
Expansion Slots	Intel 13th & 12th Gen Processors
	1 x PCIe 5.0 x16 slot
	Intel B760 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x1 slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel 13th & 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	Intel B760 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
	4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 2.5Gb Ethernet
	Wireless & Bluetooth
	Wi-Fi 6
	2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	Bluetooth v5.2*
Rear USB (Total 10 ports)	1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C庐)
	2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C庐)
	3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C庐)
	4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)	1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Dedicated audio PCB layers
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C)
	2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C)
	3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMITM port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )
	1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Aura RGB header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x 10-1 pin System Panel header
	1 x Thunderbolt™ (USB4®) header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage Protection
	- SafeSlot Core+
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsinks
	- VRM heatsink design
	ASUS EZ DIY
	- Clear CMOS button
	- CPU Socket lever protector
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Aura RGB header
	- Addressable Gen 2 headers
	Software Features
	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- FAN Xpert 2+
	- Power Saving
	- Two-Way AI Noise Cancellation
	AI Suite 3
	- DIGI+ VRM
	- PC Cleaner
	TUF GAMING CPU-Z
	DTS Audio Processing
	MyASUS
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form FactorComputer Accessories
Form Factor	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
