ASUS TUF Gaming 850W Gold Evo Fully Modular Power Supply

• Military-grade capacitors provide premium durability.
• Dual-Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
• Protective PCB coating protects against moisture, dust, and extreme temperatures.
• 80 Plus & Cybenetics Gold certified: Japanese capacitors and premium components deliver industry-leading power efficiency.
• ATX 3.1 Compatible: TUF Gaming Gold EVO series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that is compatible with PCIe Gen 5.1 graphics cards.
• Fully modular etched cables keep your rig neat and tidy.



Specifications:

Model	TUF-GAMING-850G-EVO
Intel Form Factor	ATX12V
PFC Type	Active PFC
ATX Standard	ATX 3.1
Dimensions	140 x 150 x 86 mm
Efficiency	80Plus Gold
MTBF	>120,000 hrs @ 40°C
Protection Features	OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials	ROHS
AC Input Range	100-240Vac
DC Output Voltage	+3.3V +5V +12V -12V +5Vsb
Maximum Load	20A 20A 70.83A 0.3A 3A
Combined Load	110W 110W 850W 3.6W 15W
Total Output	850W

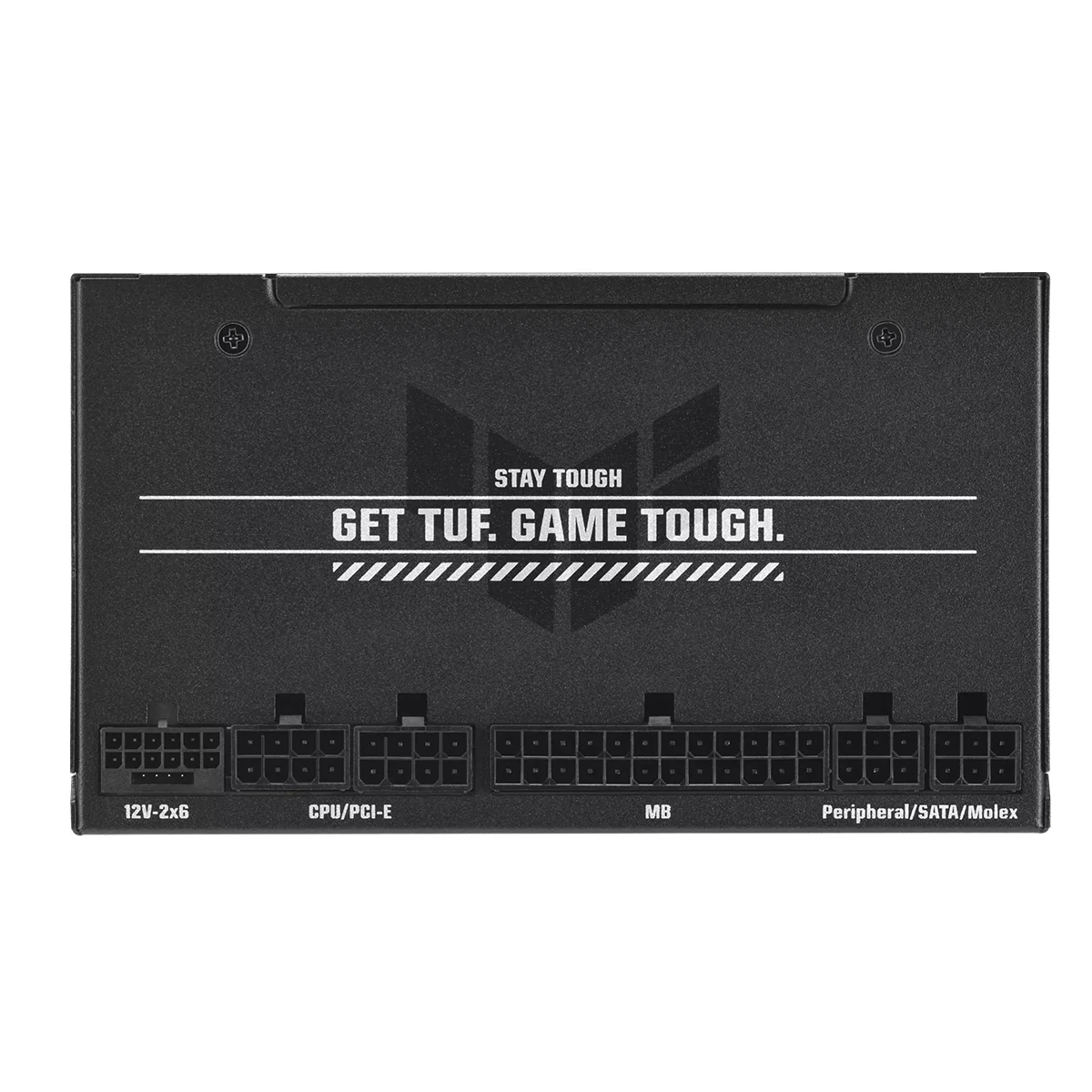

Cable Connectors	MB 20+4pin x 1, CPU 4+4pin x 2, PCI-E 16pin x 1 (12V-2x6), PCI-E 6+2pin x 3, SATA x 4, PERIPHERAL x 2
Package Contents	Power Cord, Motherboard Power cable (500mm), CPU 1-to-2 Cable (650mm+100mm), PCI-E Gen 5.1 Cable (500mm), PCI-E 1-to-1 Cable (500mm), PCI-E 1-to-2 Cable (500+100mm), SATA & Peripheral 1-to-2+1 Cable x 2, TUF Gaming Cable Ties, User Manual
Weight	1.35 kg (Single PSU)
Cybenetics Noise Level Certification	NA
0dB Technology	No
