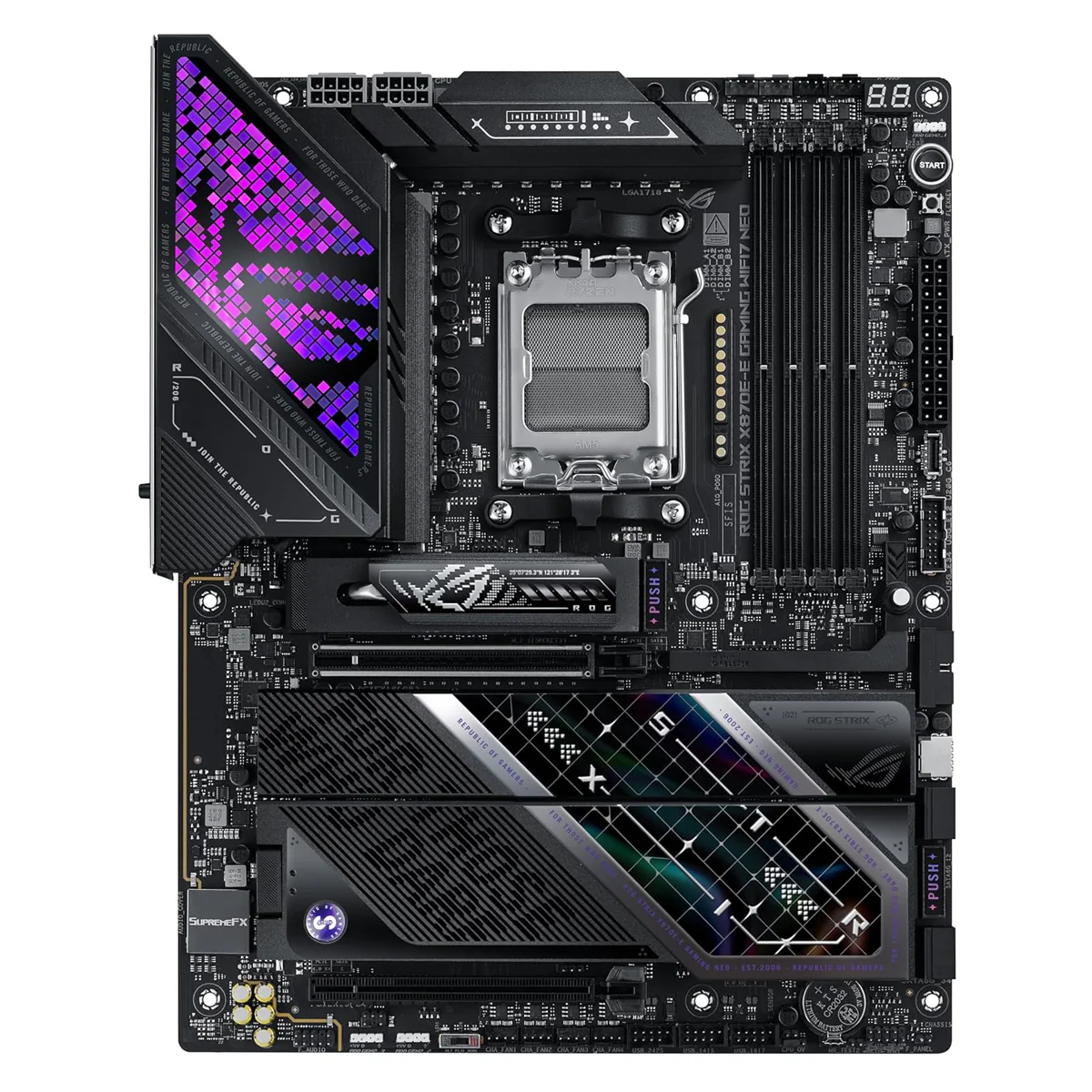

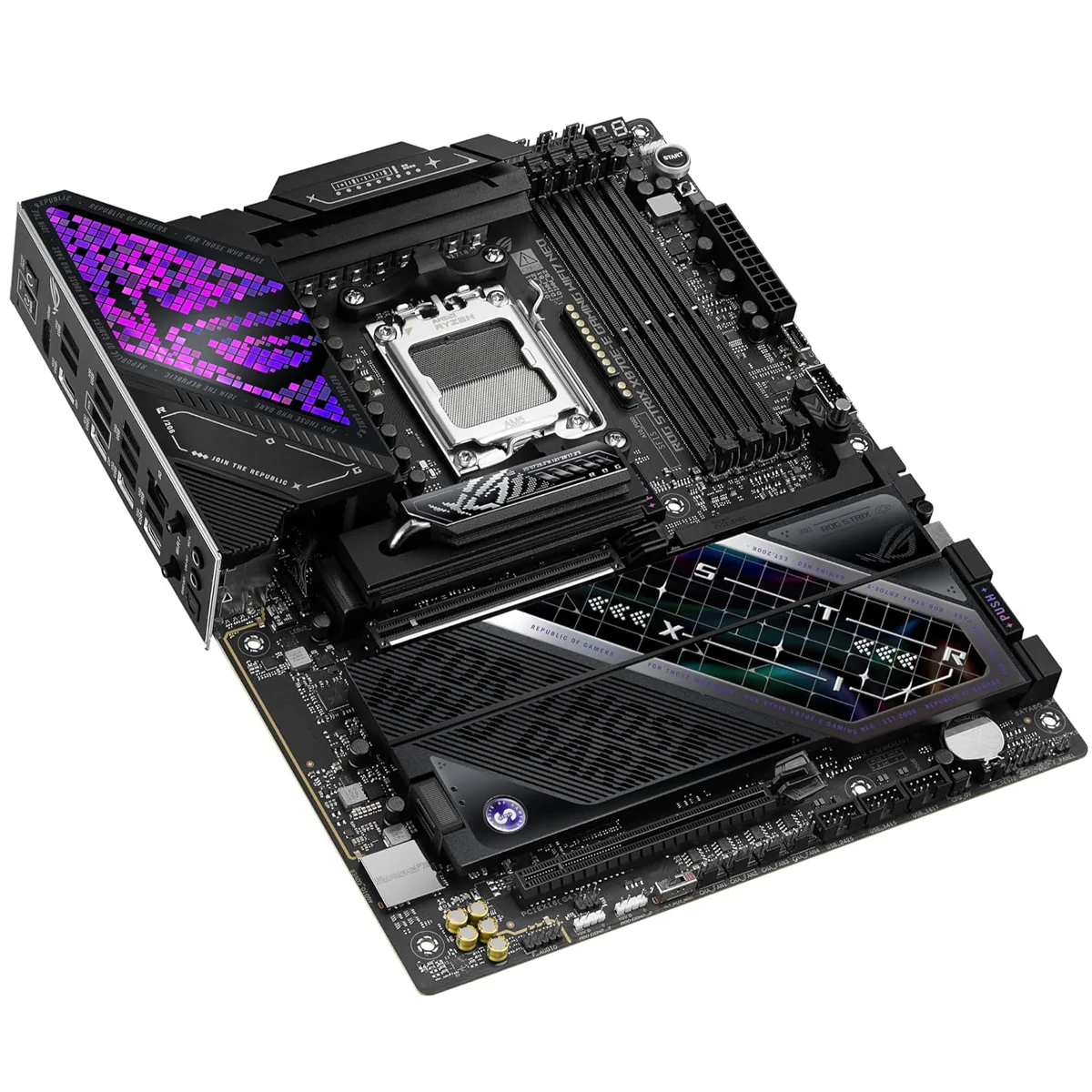

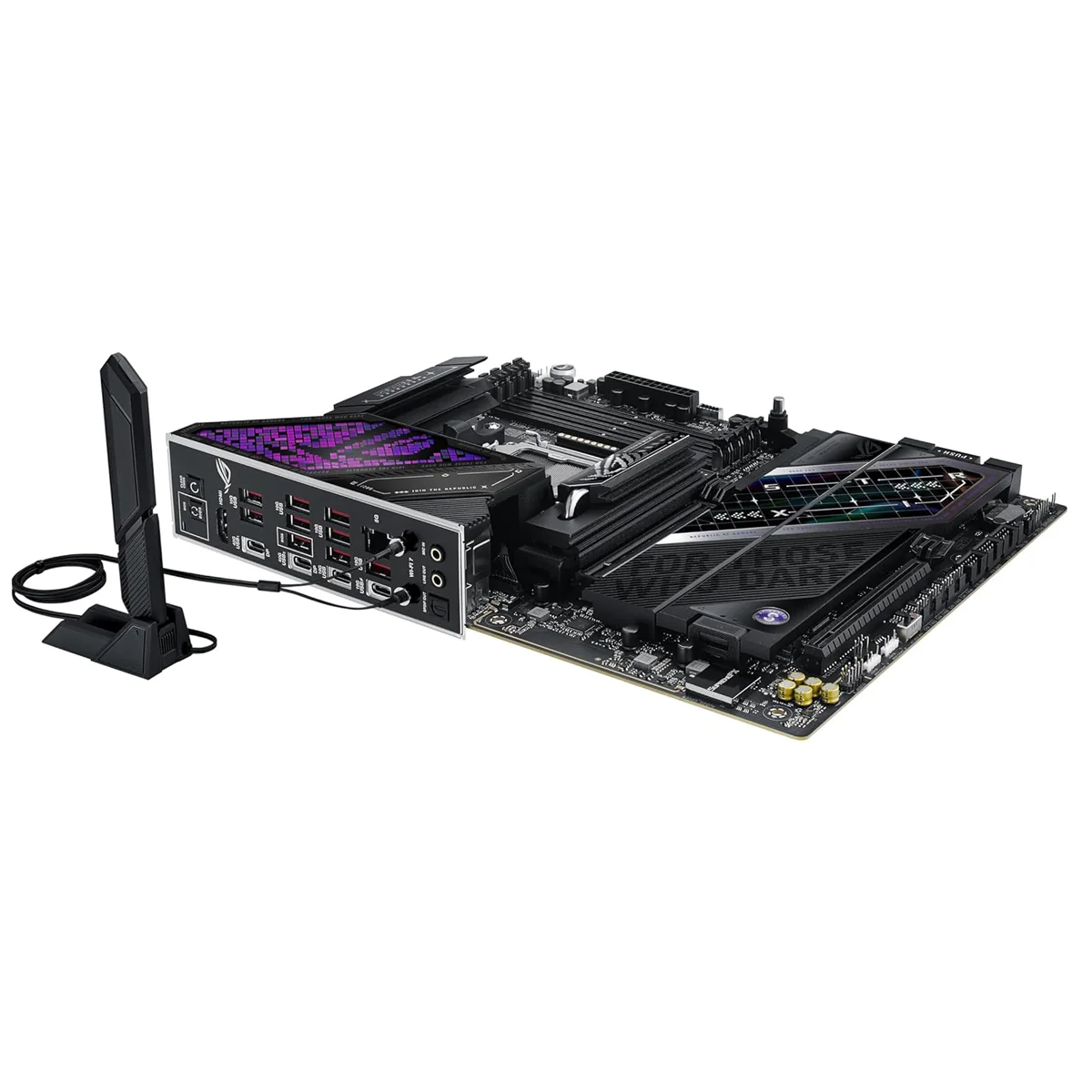

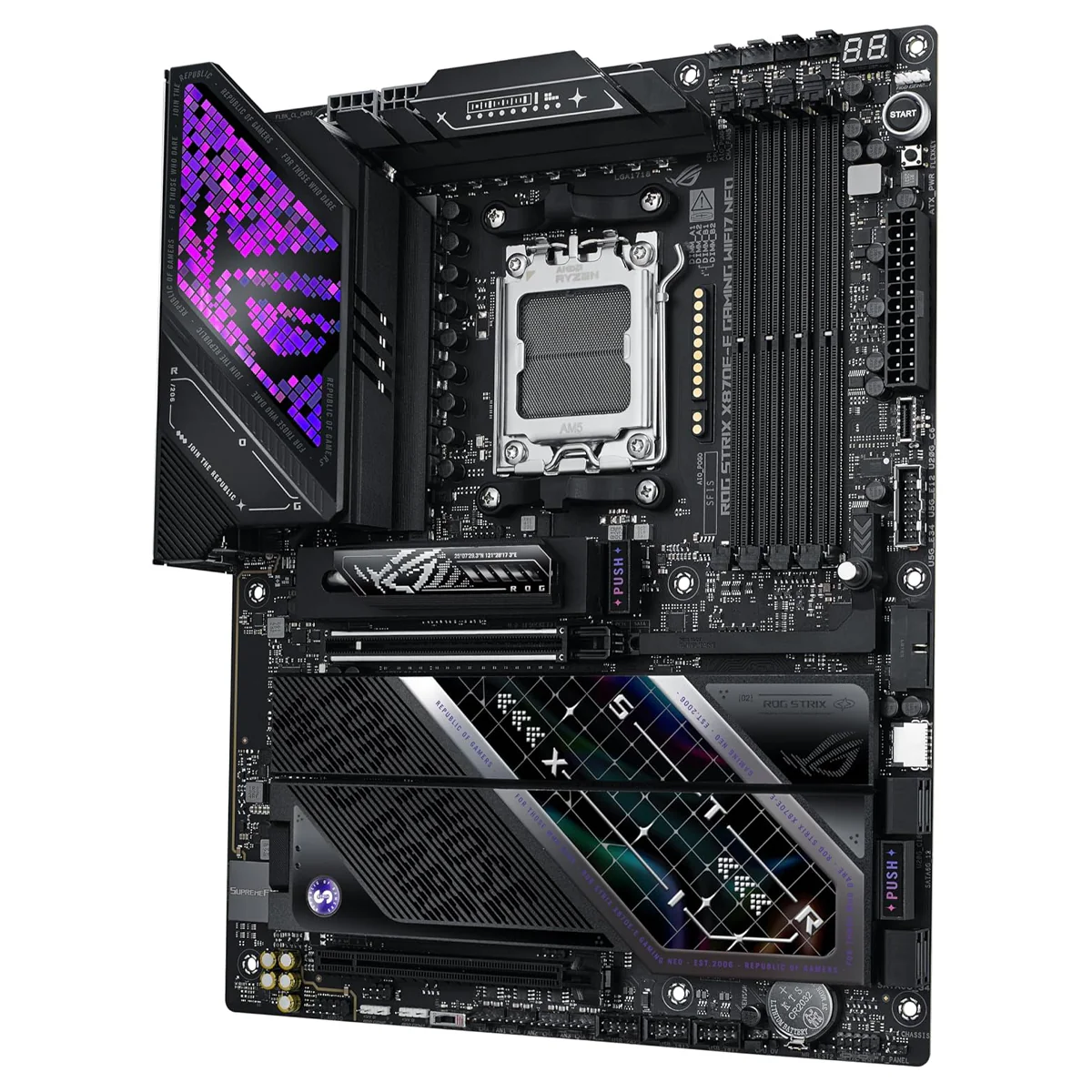

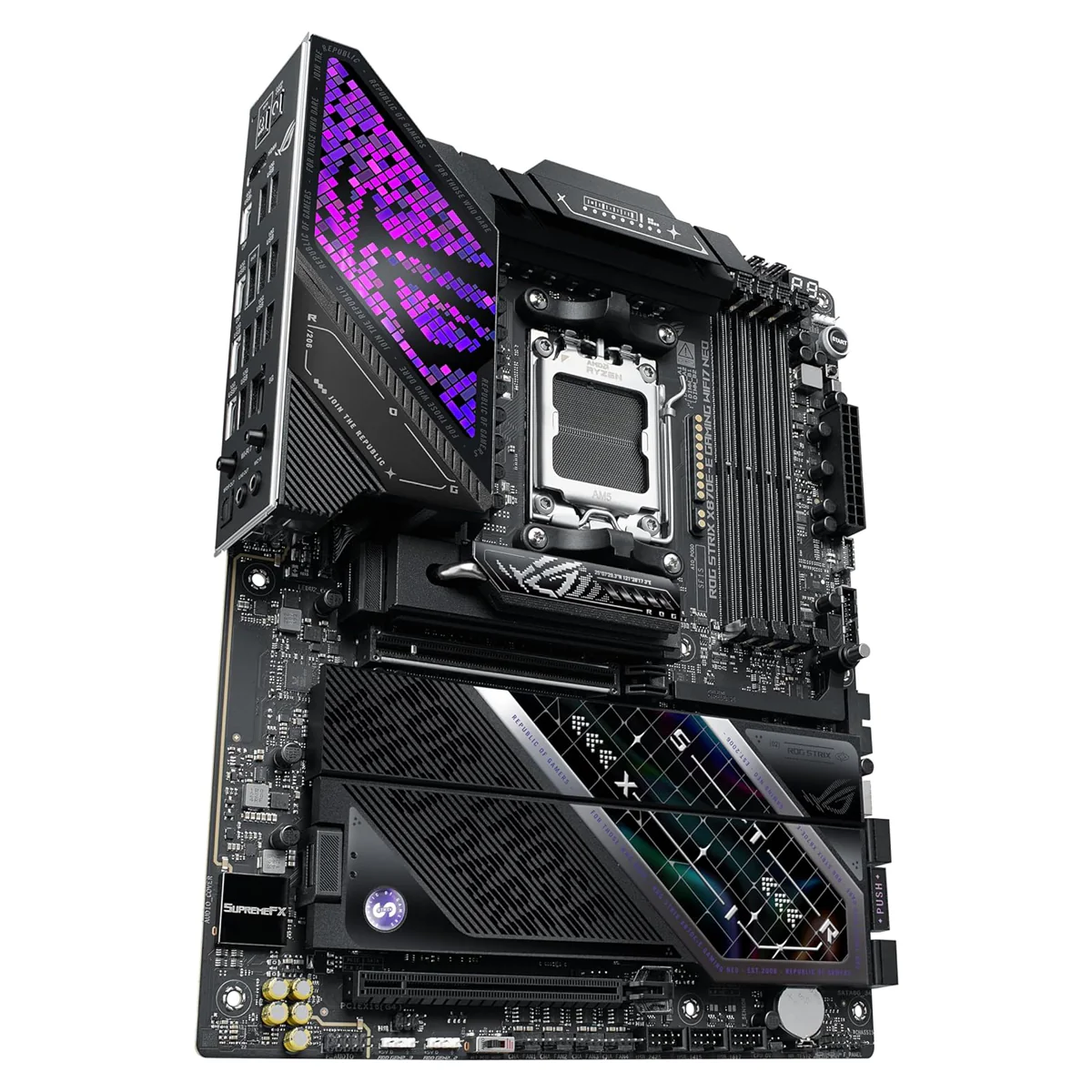

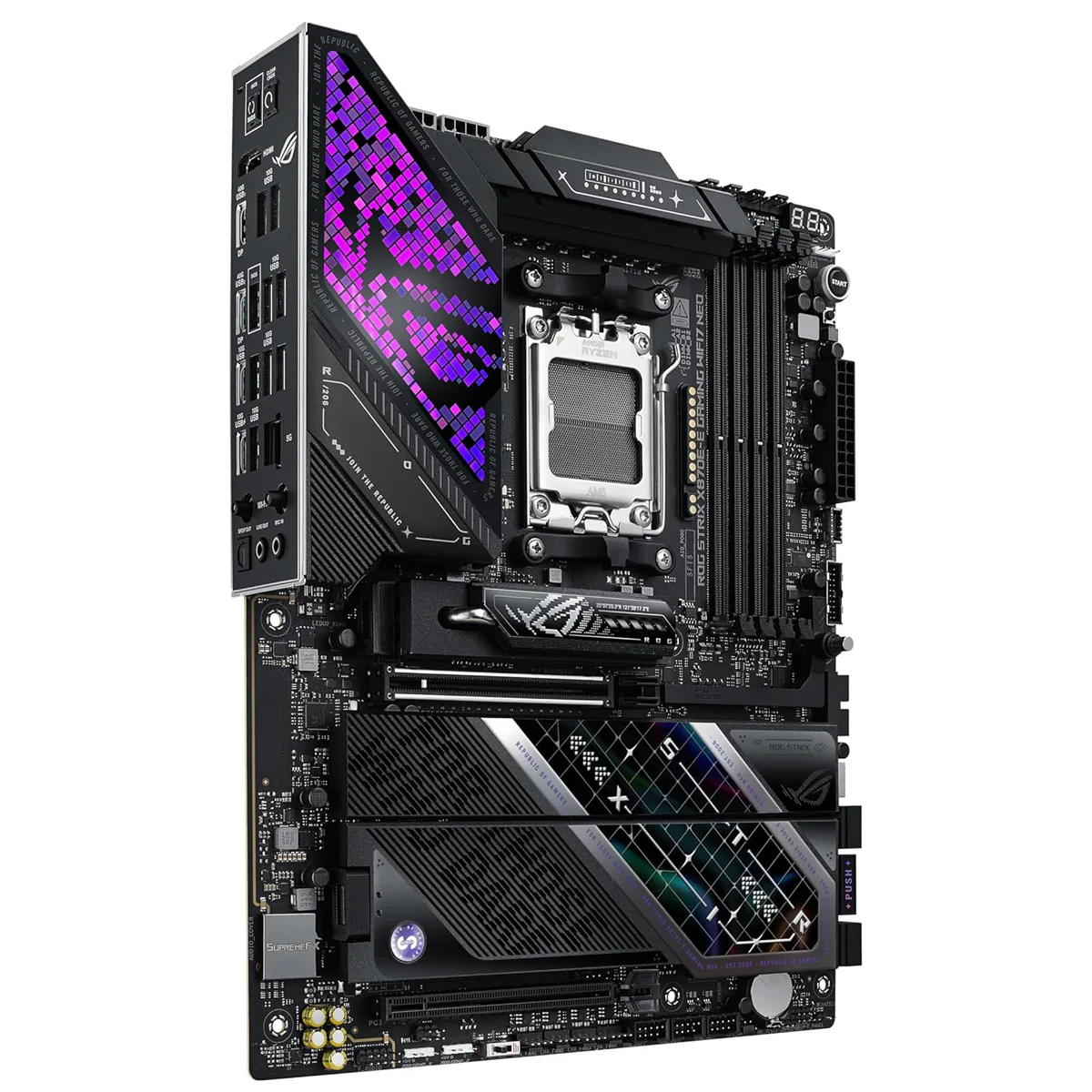

ASUS ROG Strix X870E-E Gaming WiFi7 Neo DDR5 AMD Motherboard

Engineered for the next era of computing, this motherboard is built to unlock the full potential of advanced AI workloads. With support for AMD’s latest Ryzen 9000, 8000, and 7000 series processors on the AM5 platform, it delivers the raw performance and future-ready compatibility demanded by power users and enthusiasts.

Setup and optimization are effortless thanks to ASUS-exclusive intelligent controls, including AI Overclocking, AI Cooling II, AI Networking, and AEMP—automatically fine-tuning your system for peak efficiency and performance. For those who demand granular control, ROG Strix overclocking innovations such as Dynamic OC Switcher, Core Flex, Asynchronous Clock, and PBO Enhancement provide precision tuning at an expert level.

A robust 18+2+2 power design, rated at 110A per stage and reinforced with dual ProCool II connectors, premium alloy chokes, and durable capacitors, ensures stable power delivery even under extreme multi-core workloads. Thermal performance is equally uncompromising, with massive heatsinks, high-conductivity thermal pads, and an integrated L-shaped heat pipe keeping temperatures in check.

Storage is lightning-fast and future-ready, featuring three PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots—all equipped with advanced cooling solutions to maintain peak SSD performance.

This is a platform purpose-built for high-performance computing, intelligent automation, and the evolving demands of AI-driven workflows.



CORE SPECIFICATIONS
Model	ROG STRIX X870E-E GAMING WIFI7 NEO
CPU Socket	AMD AM5 (Supports Ryzen 9000, 8000, & 7000 Series)
Chipset	AMD X870E
Memory	4 x DDR5 DIMM (Max 256GB), Supports EXPO, NitroPath, and AEMP
Form Factor	ATX (12" x 9.6")
EXPANSION & STORAGE
PCIe Slots	1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x16 (Chipset)
M.2 Slots	5 x Total (2 x PCIe 5.0, 3 x PCIe 4.0)
SATA	4 x SATA 6Gb/s
CONNECTIVITY & AUDIO
Ethernet	Realtek 5Gb Ethernet
Wireless	Wi-Fi 7 (MediaTek MT7927), Bluetooth v5.4
Rear USB	2 x USB4 (40Gbps), 1 x USB 10Gbps Type-C (30W PD), 10 x USB 10Gbps
Audio	ROG SupremeFX ALC4080 7.1 Surround (Savitech SV3H712 AMP, LHDC support)
INTERNAL HEADERS
Fan/Cooling	CPU, CPU OPT, AIO Pump, 5 x Chassis Fan headers
USB Headers	2 x USB 20Gbps (Type-C), 2 x USB 5Gbps, 3 x USB 2.0
RGB	3 x Addressable Gen 2 headers
SPECIAL FEATURES
ASUS Q-Design	Q-Antenna, Q-Code, Q-Dashboard, Q-LED, PCIe/M.2 Q-Release/Latch/Slide
Cooling/DIY	VRM/M.2 heatsinks, M.2 backplate, BIOS FlashBack, Clear CMOS, ProCool II
