The Story

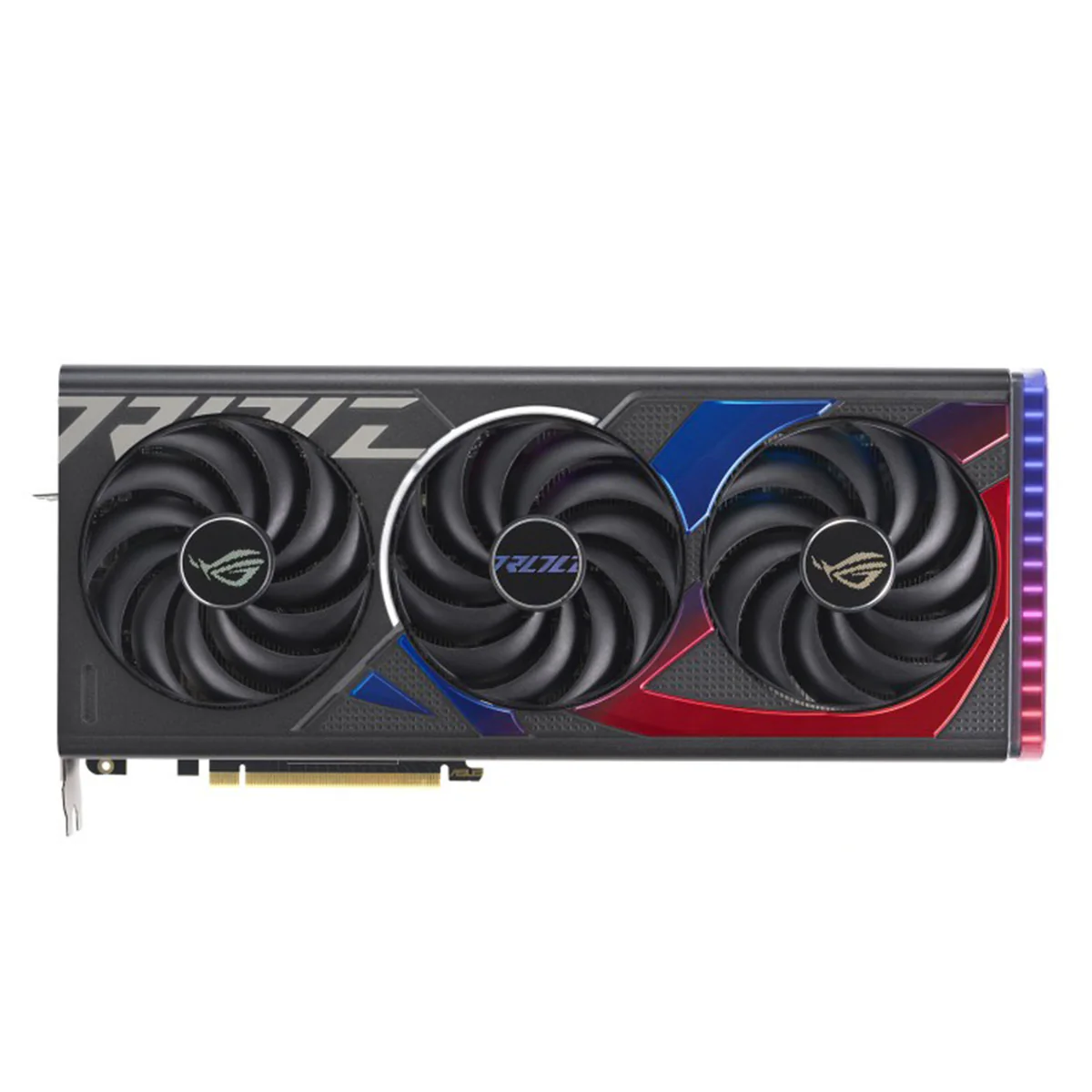

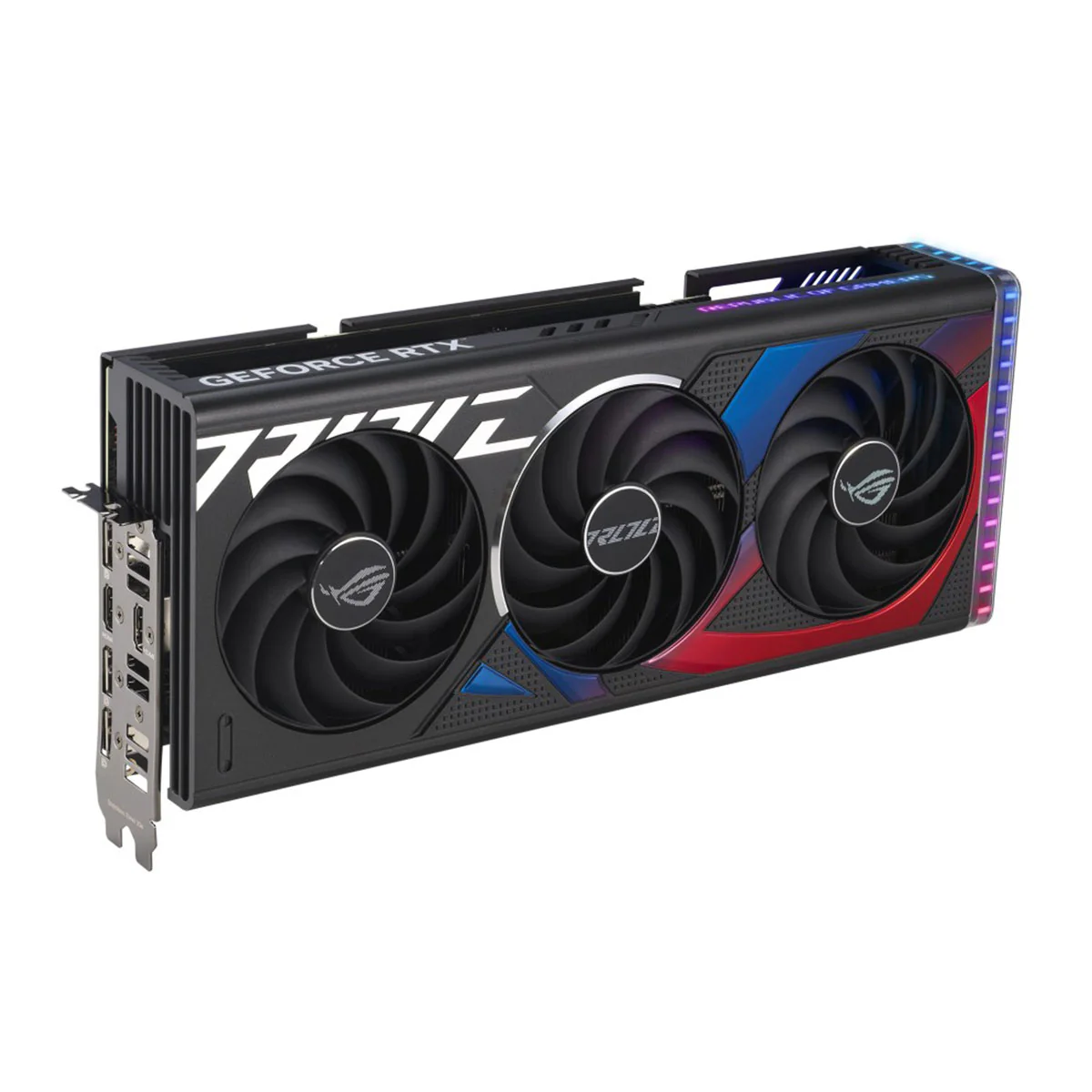

ROG Strix GeForce RTX™ 4070 12GB GDDR6X OC Edition buffed-up design with chart-topping thermal performance.
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC mode: 2640 MHz (OC mode)/ 2610 MHz (Default mode)
- Axial-tech fans scaled up for 31% more airflow
- 3.12-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
SPECIFICATION
Bus Standard : PCI Express 4.0
OpenGL : OpenGL®4.6
Video Memory : 12GB GDDR6X
Engine Clock : OC mode : 2640 MHz
Default mode : 2610 MHz(Boost)
CUDA Core : 5888
Memory Speed : 21 Gbps
Memory Interface : 192-bit
Resolution : Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support : 4
NVlink/ Crossfire Support : No
Accessories
1 x Collection Card
1 x Speedsetup Manual
1 x Thank you Card
1 x ROG Velcro Hook & Loop
1 x ROG Graphics card holder
1 x 2* PCIE 8pin to 16pin Adapter Cable
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions : 338.9 x 149.4 x 62.4 mm
Recommended PSU : 650W
Power Connectors : 1 x 16-pin
Slot : 3.12 slot
AURA SYNC : ARGB
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
ROG Strix GeForce RTX™ 4070 12GB GDDR6X OC Edition buffed-up design with chart-topping thermal performance.
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC mode: 2640 MHz (OC mode)/ 2610 MHz (Default mode)
- Axial-tech fans scaled up for 31% more airflow
- 3.12-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
SPECIFICATION
Bus Standard : PCI Express 4.0
OpenGL : OpenGL®4.6
Video Memory : 12GB GDDR6X
Engine Clock : OC mode : 2640 MHz
Default mode : 2610 MHz(Boost)
CUDA Core : 5888
Memory Speed : 21 Gbps
Memory Interface : 192-bit
Resolution : Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support : 4
NVlink/ Crossfire Support : No
Accessories
1 x Collection Card
1 x Speedsetup Manual
1 x Thank you Card
1 x ROG Velcro Hook & Loop
1 x ROG Graphics card holder
1 x 2* PCIE 8pin to 16pin Adapter Cable
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions : 338.9 x 149.4 x 62.4 mm
Recommended PSU : 650W
Power Connectors : 1 x 16-pin
Slot : 3.12 slot
AURA SYNC : ARGB
