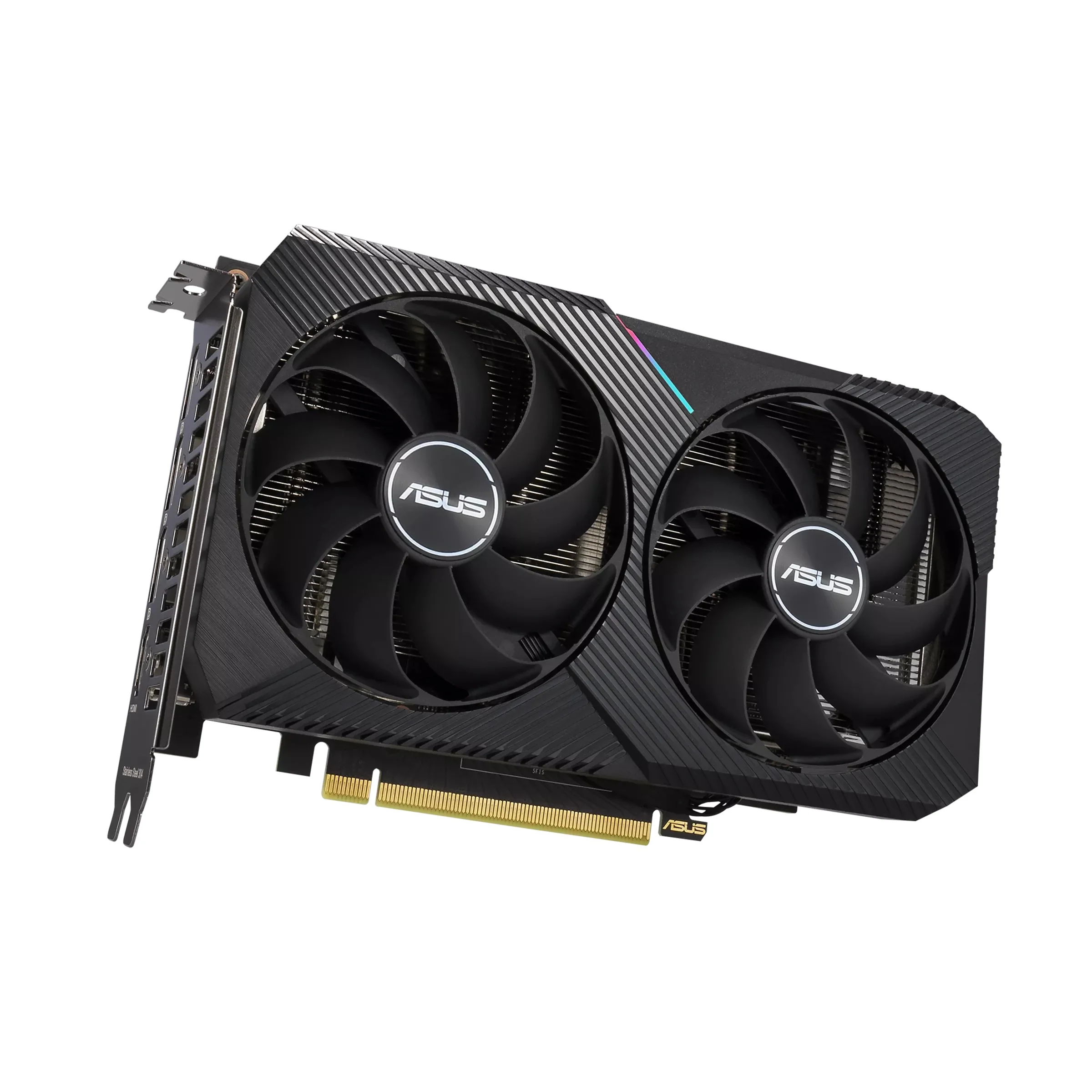

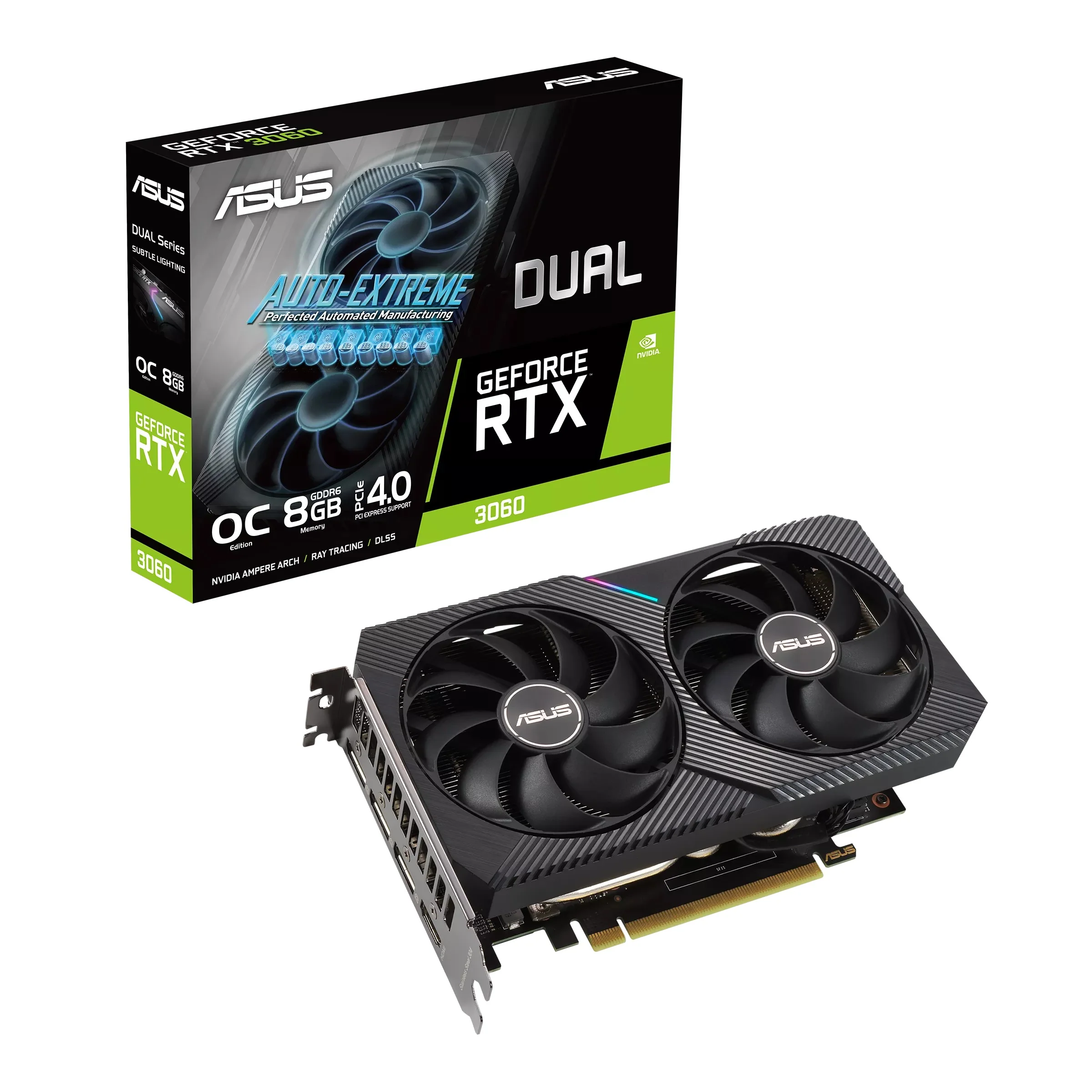

Asus Dual GeForce RTX 3060 OC 8GB PCIE 4.0 GDDR6 Graphics Card (Black)

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• OC edition: Boost Clock 1867 MHz (OC Mode)/1837 MHz(Default Mode)
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
• 0dB Technology lets you enjoy light gaming in relative silence.





Auto-Extreme Technology

Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.



 SPECIFICATIONS:



Model	ASUS Dual GeForce RTX 3060 OC Edition 8GB GDDR6
Graphic Engine	NVIDIA® GeForce RTX™ 3060
Bus Standard	PCI Express 4.0
OpenGL	OpenGL®4.6
Video Memory	8GB GDDR6
Engine Clock	OC Mode: 1867 MHz (Boost Clock) Default Mode: 1837 MHz (Boost Clock)
CUDA Core	3584
Memory Speed	15 Gbps
Memory Interface	128-bit
Resolution	Digital Max Resolution 7680 x 4320
Interface	Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3)
Maximum Display Support	4
NVlink/ Crossfire Support	No
Software	ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions	200 x 123 x 38 mm 7.87 x 4.84 x 1.496 inches
Recommended PSU	650W
Power Connectors	1 x 8-pin
Slot	2 Slot
