$47.79
Original: $159.30

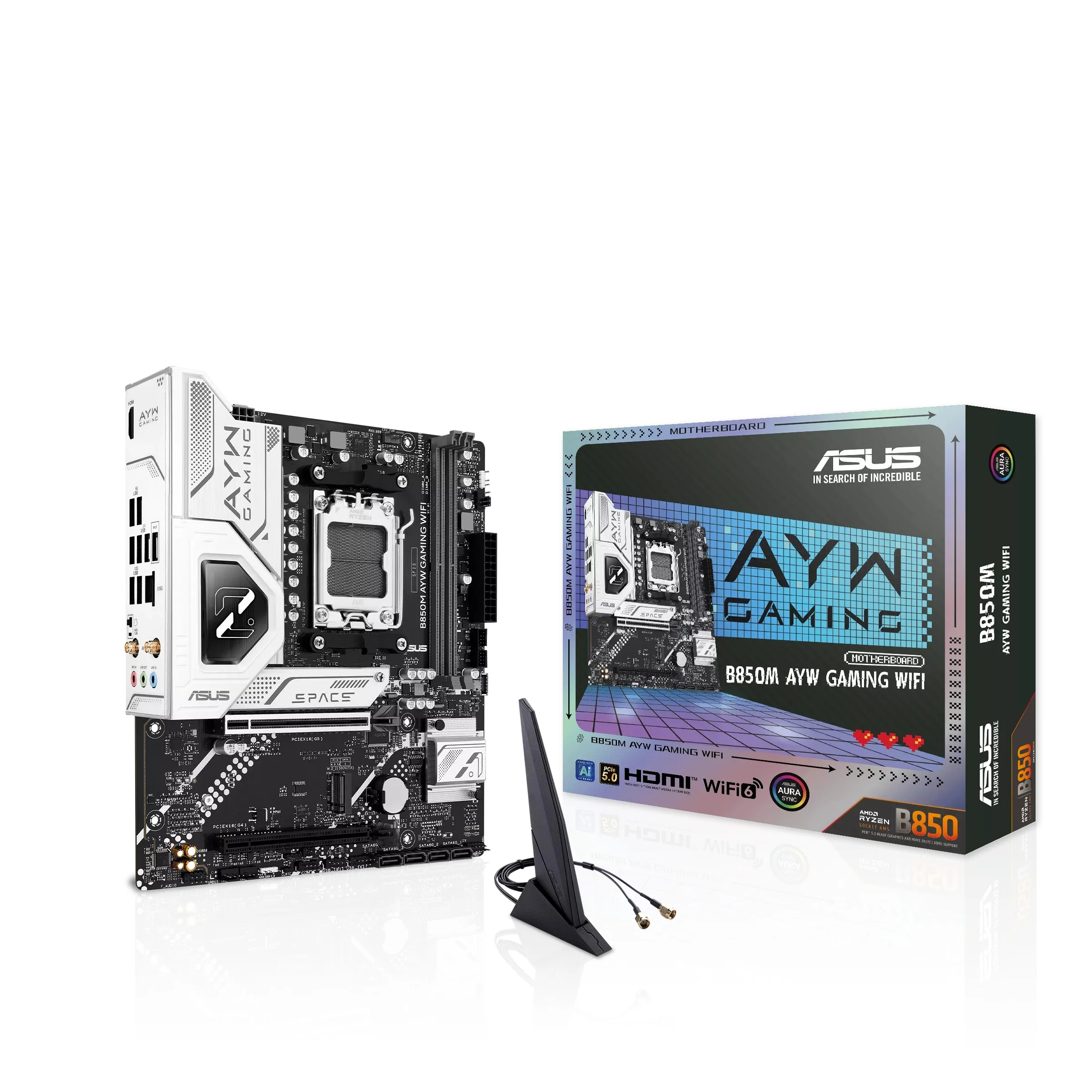

-70%ASUS B850M AYW Gaming WiFi DDR5 AMD Motherboard—
$159.30
$47.79The Story
B850M
AYW GAMING WIFI
ASUS B850 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specification:
| Model | B850M AYW GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 up to 8200+ MT/s (Ryzen 9000), 9600+ MT/s (Ryzen 8000), 8000+ MT/s (Ryzen 7000); Dual Channel; ECC & Non-ECC Un-buffered; AMD EXPO™; ASUS AEMP |
| Graphics | 1 x HDMI™ port (supports 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16; Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4); Chipset: 1 x PCIe 4.0 x16 (x4) |
| Storage | 2 x M.2 slots; 4 x SATA 6Gb/s ports; RAID 0/1/5/10 (varies by CPU) |
| Ethernet | Realtek 2.5Gb Ethernet (ASUS LANGuard) |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax, 2.4/5GHz), Bluetooth® 5.3 |
| USB (Rear) | 2 x USB 10Gbps Type-A; 2 x USB 5Gbps Type-A; 4 x USB 2.0 Type-A |
| USB (Front) | 1 x USB 5Gbps Type-C connector; 1 x USB 5Gbps header (2 ports); 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio (24-bit/192 kHz) |
| Back Panel I/O | HDMI; Wi-Fi module; Realtek 2.5Gb LAN; 3 x Audio jacks; BIOS FlashBack™ button; 8 x USB ports |
| Internal Connectors | CPU fan x1; Chassis fan x3; 24-pin ATX; 8-pin CPU; 2 x M.2; 4 x SATA; USB headers; RGB Gen2 x3; Clear CMOS; COM; Front audio; S/PDIF; TPM; System panel |
| Special Features | ASUS 5X Protection III; Q-Design; Thermal Solution; EZ DIY; Aura Sync |
| Software | Armoury Crate; Aura Sync; Fan Xpert 2+; AI Advisor; DriverHub; TurboV Core; GlideX; ASUS CPU-Z; UEFI BIOS |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables; Wi-Fi antenna; M.2 rubber package; M.2 screw package; Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | Micro-ATX, 24.4 cm x 22.1 cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
B850M
AYW GAMING WIFI
ASUS B850 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specification:
| Model | B850M AYW GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 up to 8200+ MT/s (Ryzen 9000), 9600+ MT/s (Ryzen 8000), 8000+ MT/s (Ryzen 7000); Dual Channel; ECC & Non-ECC Un-buffered; AMD EXPO™; ASUS AEMP |
| Graphics | 1 x HDMI™ port (supports 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16; Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4); Chipset: 1 x PCIe 4.0 x16 (x4) |
| Storage | 2 x M.2 slots; 4 x SATA 6Gb/s ports; RAID 0/1/5/10 (varies by CPU) |
| Ethernet | Realtek 2.5Gb Ethernet (ASUS LANGuard) |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax, 2.4/5GHz), Bluetooth® 5.3 |
| USB (Rear) | 2 x USB 10Gbps Type-A; 2 x USB 5Gbps Type-A; 4 x USB 2.0 Type-A |
| USB (Front) | 1 x USB 5Gbps Type-C connector; 1 x USB 5Gbps header (2 ports); 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio (24-bit/192 kHz) |
| Back Panel I/O | HDMI; Wi-Fi module; Realtek 2.5Gb LAN; 3 x Audio jacks; BIOS FlashBack™ button; 8 x USB ports |
| Internal Connectors | CPU fan x1; Chassis fan x3; 24-pin ATX; 8-pin CPU; 2 x M.2; 4 x SATA; USB headers; RGB Gen2 x3; Clear CMOS; COM; Front audio; S/PDIF; TPM; System panel |
| Special Features | ASUS 5X Protection III; Q-Design; Thermal Solution; EZ DIY; Aura Sync |
| Software | Armoury Crate; Aura Sync; Fan Xpert 2+; AI Advisor; DriverHub; TurboV Core; GlideX; ASUS CPU-Z; UEFI BIOS |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables; Wi-Fi antenna; M.2 rubber package; M.2 screw package; Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | Micro-ATX, 24.4 cm x 22.1 cm |
