Arctic P12 Pro A-RGB 120mm A-RGB PWM Single Fan with Cable Splitter (White) (ACFAN00311A)

• HIGH STATIC PRESSURE: Efficient even with resistance – the generated airflow easily penetrates dense radiators, narrow perforated panels and mesh structures and ensures reliable cooling
• PWM CONTROL WITH WIDE SPEED RANGE: The speed can be progressively adjusted up to 3000 rpm via the 4-pin PWM connection – the fan stops completely at less than 5% PWM

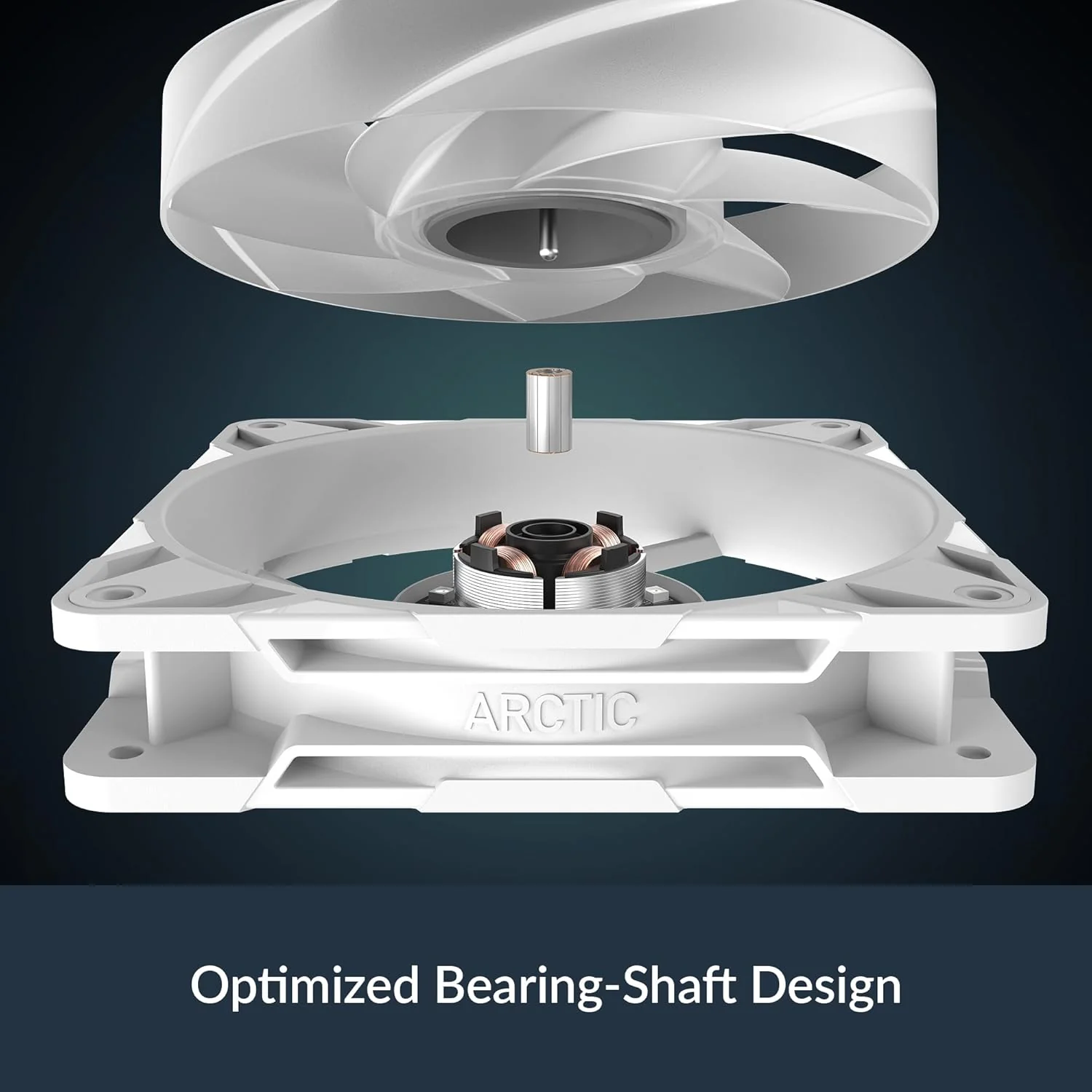

• PRECISE MANUFACTURING FOR MAXIMUM SMOOTH RUNNING: Minimal gaps, automatic balancing and high-precision measurement noticeably reduce vibrations – for quiet, efficient and long-lasting performance
• SMOOTH-RUNNING FLUID DYNAMIC BEARING (FDB): The self-lubricating bearing minimizes noise during operation – ideal for quiet, efficient cooling and a long, reliable service life
• NEW FAN BLADE DESIGN FOR MORE PERFORMANCE: The redesigned rotor blades offer an optimal balance of performance and low noise – especially efficient at low speeds

Specification:

General Specifications
Warranty	6 Years
Operating Ambient Temperature	0–40 °C
Dimensions	120 (L) x 120 (W) x 25 (H) mm
Net Weight	185 g
Fan Specifications
Fan Speed	600–3000 rpm, PWM controlled 0 rpm below 5 % PWM
Airflow	77 cfm | 131 m³/h
Static Pressure	6.9 mmH2O
Fan Bearing	Fluid Dynamic Bearing
Typical Voltage	12 V DC
Start Up Voltage	3.3 V DC
Current	0.33 A
Cable Length	400 mm + 80 mm Daisy-Chain Cable
Connector	4-Pin Fan Plug + 4-Pin Socket
RGB Specifications
LEDs	12x A-RGB Gen2 LEDs
Current | Voltage	0.40 A | 5 V DC
Connector	3-Pin A-RGB Plug + 3-Pin Socket
